Tie Down Engineering Roof Zone Penetrator 2+2 Instruction Sheet page 7

DO NOT hook Personal Fall Arrest System (PFAS) to any point except a Fall Arrest or Fall Restraint Tie-off
Anchor Shackle.
When making connections, only use double-locking snap hooks and double-locking carabiners with this equipment.
Only use connectors that are suitable to each application. Ensure all connections are compatible in size, shape
and strength. Do not use equipment that is not compatible. Ensure that all connectors are fully closed and locked.
The Fall Restraint Tie-Off Shackles
Two Fall Restraint Anchor Shackles are installed on
the top side of the Penetrator 2+2 where labeled.
The Fall Restraint Anchor Shackles DO NOT
arrest falls . The user must insure that the Fall
Restraint worker is personally equipped with
lanyards, harnesses, safety lines, etc., when
working in conjunction with potential
fall arrest workers.
Do Not allow the fall restraint user to work
close to any roof edge.
FALL ARREST TIE-OFF Shackles
The two Fall Arrest Tie Off shackles are located on the
lower side of the Penetrator 2+2, in front of the stay
clear guard as labeled. The user must insure that the
lanyards and harness are properly attached.
IMPORTANT: Confirm all screw pins on all four anchor shackles are fully inserted prior to attachment
of Fall Restraint or Fall Arrest lines.
IMPORTANT: DO NOT allow workers to cross paths (cross lines) at anytime! Fall Restraint/Fall Arrest
lines must never cross over each other. Crossed lines will cause the unit to not function as intended.
Failure to maintain clear lines may cause a accident or death.
OSHA requires that before operating the system there must be an inspection for damaged equipment.
1 Check for loose, bent or damaged parts, including the three penetrating spikes.
2 Check welded components for distortion, cracks, or other damage.
3 Check Tie-off shackles for distortion or damage and confirm that they are properly tightened.
4 Check retaining slide bars for rusting and/or wear before each use.
5 All labels must be present and fully legible. (Copies of all labels are attached at the back of this
section for accurate inspection.)
6 Check for all pull pins that they are fully inserted and the safety cotter pin clips are
attached to each pull pin.
Connecting to the Penetrator 2+2
Before Using the Penetrator 2+2

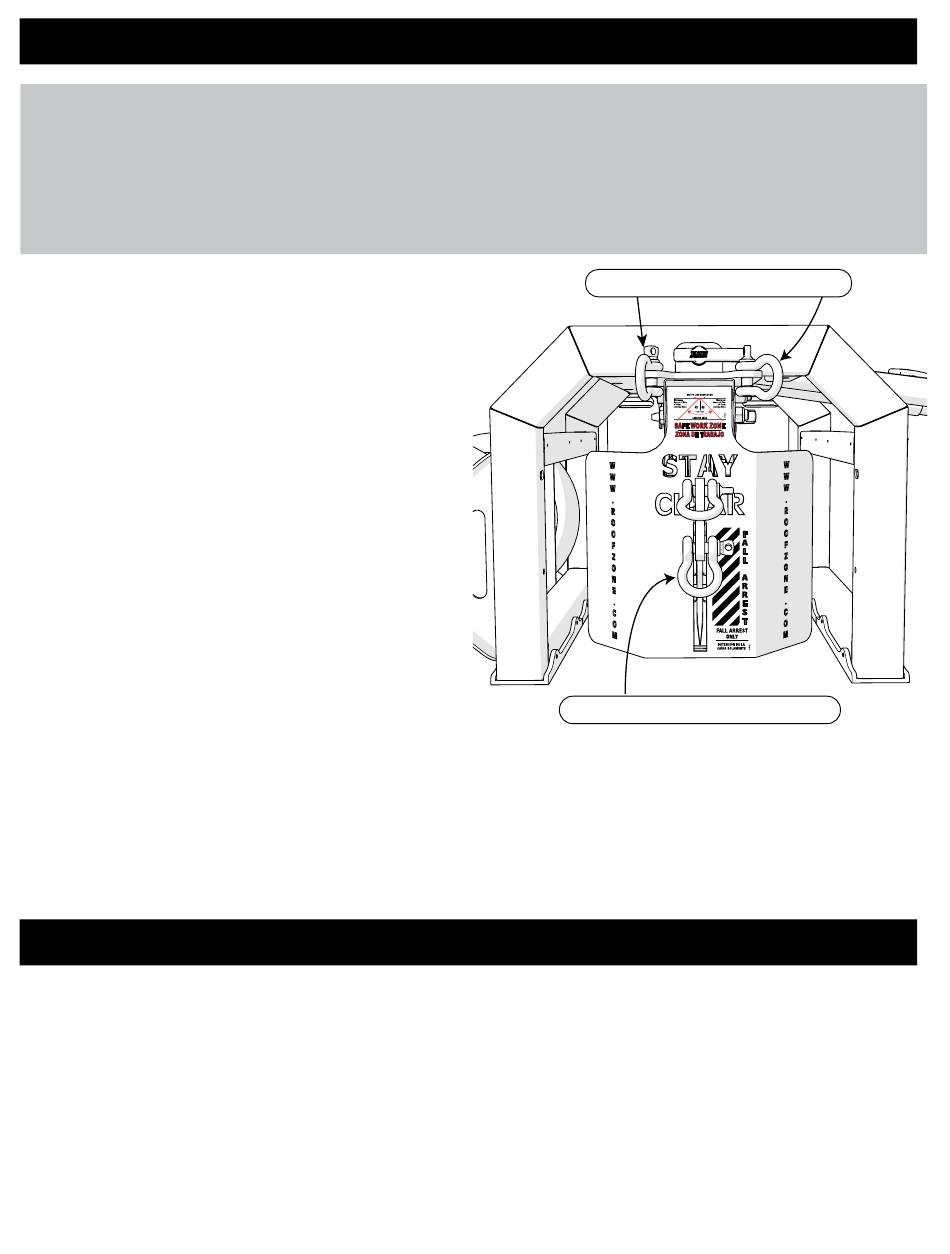

Fall Restraint Anchor Shackles
Fall Arrest Anchor Shackles (2)
7
