Tie Down Engineering Roof Zone Penetrator 2+2 Instruction Sheet page 5

Placement/Repositioning of the Penetrator 2+2
The attachment tie-off anchor shackles must
be pointed toward the leading edge and the
cart is set to travel parallel to the unprotected
edge or leading edge.
Position the Penetrator 2+2 such that
the front guard plate is between 4 to 15 feet
from the leading edge, and in line with the
center of the area to be worked.
IMPORTANT: When repositioning the
Penetrator 2+2, active fall restraint is
maintained by a maximum length of five
feet less than the distance of the cart
to the leading edge.

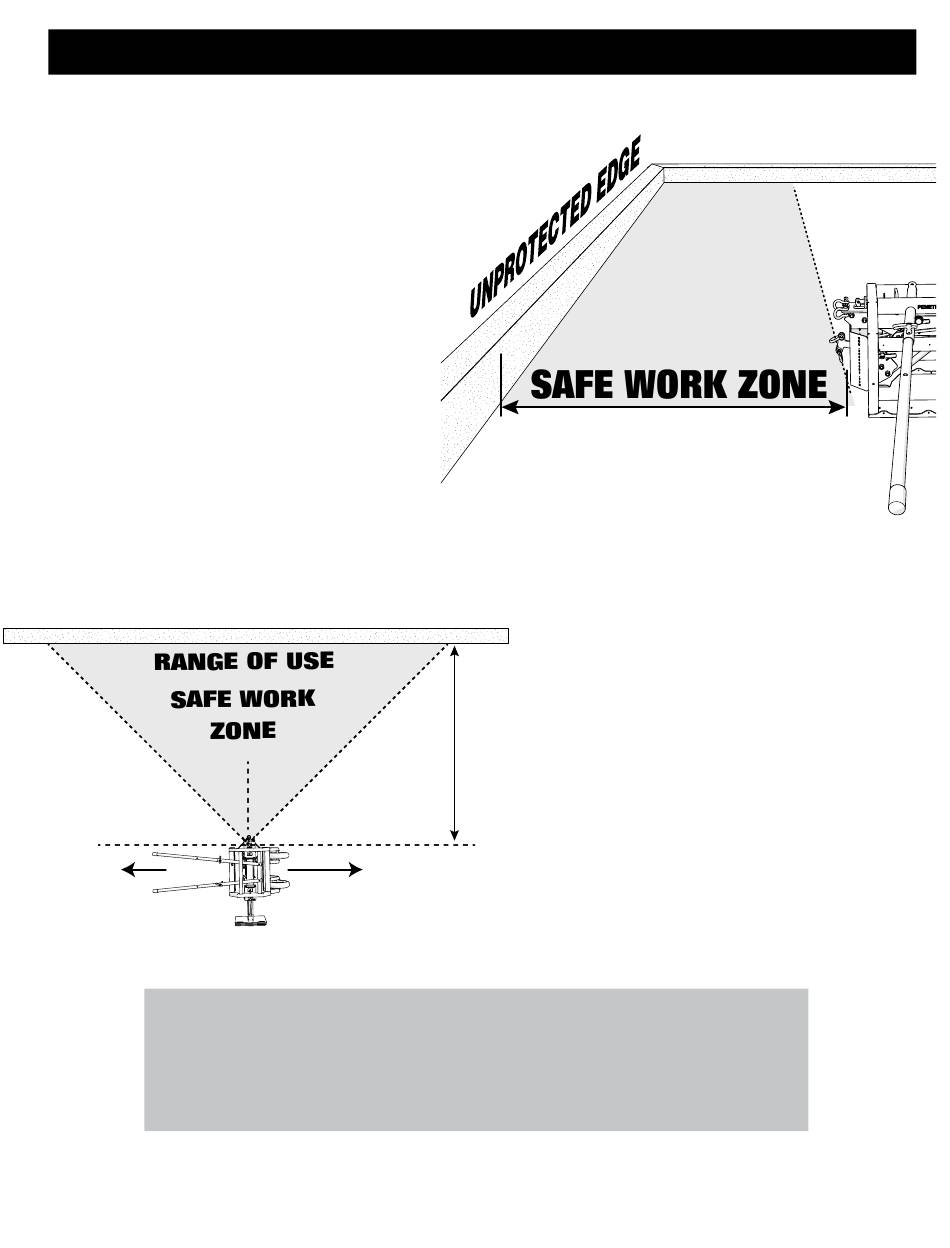

Unprotected Edge or Leading Edge
45˚ 45˚
IMPORTANT: DO NOT allow workers to cross paths (cross lines) at anytime!
Fall Restraint/Fall Arrest lines must never cross over each other. Crossed
lines will cause the unit to not function as intended. Failure to maintain
4 ft. to
15 ft.
clear lines may cause a accident or death.
Cart
Path
5
4 ft. to 15 ft.
Minimum
4 ft. from
Unprotected Edge
Prior to Positioning the Penetrator 2+2:
Verify that the surface is capable of supporting the
Penetrator 2+2, ballast weights, cart, and
all personnel using it.
During Repositioning the Penetrator 2+2:
Active fall restraint is maintained by a maximum
length of five feet less than the distance of the cart
to the leading edge.
Cart
Path
Maximum
15 ft. from
Unprotected Edge
