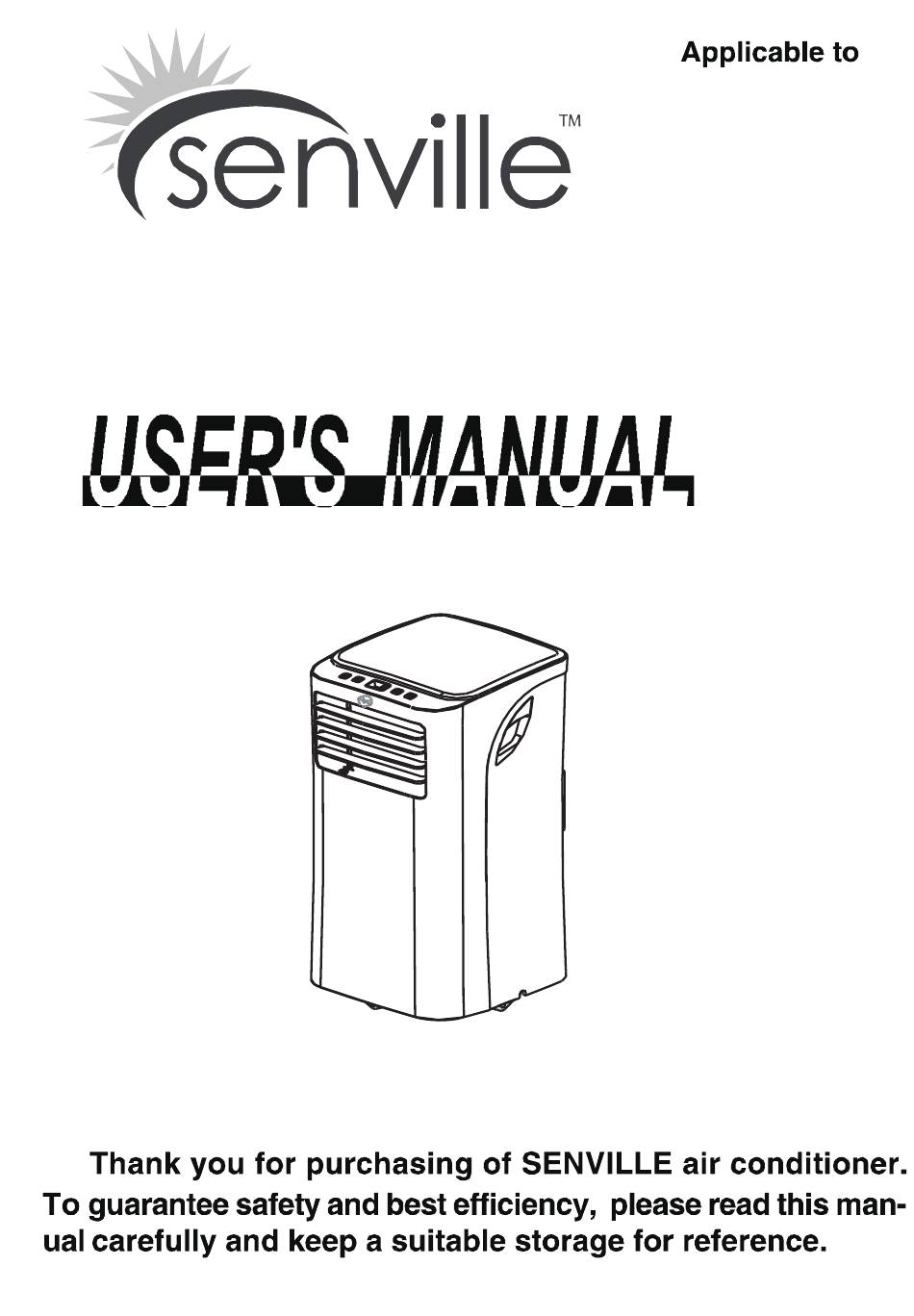

  • Page 1 SENP/10 P O R TA B L E A I R C O N D I T I O N E R...
  • Page 2 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS Safety rules ............................2 Electrical information ..........................2 Operating conditions ........................3 IDENTIFICATION OF PARTS Accessories ............................3 Names of parts..........................4 AIR CONDITIONER FEATURES Electronic control operating instructions ..................5 OPERATING INSTRUCTIONS Operating instructions ........................6 INSTALLATION INSTRUCTIONS Location ............................8 Window kit installation ........................8 Exhaust hose installation ........................

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Safet y rules To prevent injury to the user or other people and property damage, these instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Always do this Never do this Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

  • Page 6: Operating Conditions

    IDENTIFICATION OF PARTS Operating conditions The air conditioner must be operated within the temperature range indicated below: MODE OOM TEMPERATURE COOL Note: Perform ance may be reduc ed outside of these o perating t emperatu res. Accessories Part Description Quantity 1 pc Unit Adaptor 1 pc...

  • Page 7: Names Of Parts

    IDENTIFI CA TIO N O F PAR TS NAMES OF PARTS Front Operation Panel Remote Signal Receptor Horizontal Louver Control Lever (adjust manually) Vertical Louver Control Lever (adjust manually) Panel Fig.1 Carrying Handle (both sides) Rear Upper Air Filter (Behind the grille) Air Intake Air Outlet Lower Air Filter...

  • Page 8: Electronic Control Operating Instructions

    AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, get fully familiar with the control panel and remote control and all their functions, then follow the symbol for the functions desired. The unit can be controlled by the unit control panel alone or with the remote control . NOTE: For instructions on how to use the remote control, please see page 15 of this manual.

  • Page 9: Operating Instructions Operating Instructions

    OPERATING INSTRUCTIONS MODE select button Operating Instructions Selects the appropriate operating mode. COOL operation Each time you press the button, a mode is selected in a sequence that alternates Press the "MODE" button until the "COOL" between COOL, FAN and DRY. The mode indicator light comes on.
  • Page 10 OP ER AT ING INS TRU CTIONS Other features Auto-Restart If the unit turns off unexpectedly due to a power outage or interruption, it will restart automatically with its previous settings when the power resumes. Wait 3 minutes before resuming operation After the unit has stopped, it cannot be restarted in the first 3 minutes.
  • Page 11 INSTALLATION INSTRUCTIONS (optional) Window Installation Kit Exhaust hose Exhaust hose assembly Step One: Preparing the Exhaust Hose assembly Press the exhaust hose into the window slider adaptor and unit adaptor, clamp automatically by elastic buckles of the adaptors. Unit adaptor Window slider adaptor Step Two: Install the Exhaust hose...
  • Page 12 INSTALLATION INSTRUCTIONS (optional) Type 1: Hung Window Installation Foam seal B (Adhesive type-shorter) 1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown. Foam seal A (Adhesive type) 2.
  • Page 13 INSTALLATION INSTRUCTIONS (optional) Type 2: Sliding Window Installation Foam seal B (Adhesive type-shorter) 1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown. Foam seal A (Adhesive type) 2.

  • Page 14: Location

    INSTALLATION INSTRUCTIONS Water drainage: I n dehumidifying mode,remove the drain R emove the plug from the back of the unit. You may also drain plug connect a 3/4" (1.9cm) garden hose (sold separately) onto the 5/8" (1.58cm) drain connector on the unit. For models without a drain connector, just attach the drain hose to the hole.

  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE CARE AND MAINTENANCE IMPORTANT : 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean Air filter the unit. 3) Do not wash the unit directly under a tap or using a hose. (take out) It may cause electrical shock.

  • Page 16: Troubleshooting Tips

    TROUBLESHOOTING TIPS T R O U B L E S H O O T I N G TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES 1. Uni t does not - P1 appears in the display window Drain the water in the bottom tray. start when pressing on/of f - Room temperature is lower than...

  • Page 17: Remote Control Instructions

    REMOTE CONTROL INSTRUCTIONS Specification Model RG09E/BGCEU1 3.0V(Dry batteries R03/LR03×2) Rated Voltage Lowest Voltage of 2.0V CPU Emitting Signal Transmission Distance 。 。 -5 C 60 C( 23 F~140 F) Environment...
  • Page 18 REMOTE CONTROL INSTRUCTIO Features of remote control ON/OFF Button: Push this button to start operation, push the button again to stop operation. MODE Select Button: Each time you push the button, a mode is selected in a sequence that goes from AUTO, COOL, DR Y and FAN, as the following figure indicates: AUTO COOL...
  • Page 19 REMOTE CONTROL INSTRUCTIO Features of remote control(continued) temperature setting or to adjust the TIMER in a counter-clockwise direction. NOTE: Press and hold buttons together for 3 seconds will alternate the temperature display between the C & F scale. SLEEP Button: In SLEEP mode, Active/Disable sleep function.
  • Page 20 REMOTE CONTROL INSTRUC Indicators on remote controller Transmission Indicator This transmission indicator lights when remote controller transmits signals to the indoor unit. Mode display Displays the current operation mode. Including ) , F AN AUTO( ), COOL( ), DRY( AUTO ONLY ( )and back to AUTO( AUTO...
  • Page 21 REMOTE CONTROL INSTRUCTIO Handling the remote controller Location of the remote controller. Keep the remote controller where its signals can reach the receiver of the unit (a distance of 8m is allowed). When you select the timer operation, the remote controller automatically transmits a signal to the indoor unit at the specified time.
  • Page 22 REMOTE CONTROL INSTRUCTIO Setting the clock Before you start operating the air conditioner, set the clock of the remote controller using the procedures given in this section. The clock panel on the remote controller will display the time regardless of whether the air conditioner is in use or not.
  • Page 23 REMOTE CONTROL INSTRUCTIO Automatic operation When you set the air conditioner in AUTO mode, it will automatically select cooling, or fan only operation depending on what temperature you have selected and the room temperature. Once you select the operating mode, the operating conditions are saved in the AUTO unit's microcomputer memory...
  • Page 24 REMOTE CONTROL INSTRUCTIO Cooling /Fan only operation Start Ensure unit is plugged and power is available. The OPERATION lamp on the display panel of the indoor unit starts flashing. 1. Mode select button (MODE) CLOCK SET TEMP. Press to select COOL, FAN ONLY FAN SPEED 2.
  • Page 25 REMOTE CONTROL INSTRUCTIO Timer operation 1. TIMER button Press the TIMER button, the remote displays 0.0 alongside either the TIMER ON or TIMER OFF indicator, and will flash. SET TEMP. 2. TEMP/TIME button Press to set the desired time. FAN SPEED Forward Backward Press or hold the forward or backward...
  • Page 26 REMOTE CONTROL INSTRUCTIO Example of timer setting TIMER ON (Timer Start Operation) The TIMER ON feature is useful when you want the unit to turn on automatically before say when you return home. The air conditioner will automatically start operating at the set time. IMPORTANT: The time will be registered Start within a 3 second period(after pressing...
  • Page 27 REMOTE CONTROL INSTRUCTIO COMBINED TIMER etting both ON and OFF timers simultaneously) TIMER OFF → TIMER ON (On → Stop → Start operation) This feature is useful when you want to stop the air conditioner after you go to bed, and start it again in the morning when you wake up or when you return home.
