Charge Battery
1
2
Attach antenna
3
Take Note of: <MENU>, <Up Arrow>, <Down Arrow>, <EXIT>,
4
Orange VFO/MR, BlueA/B, Black BAND,
5
10 Key Number Pad. Used to enter key numbers
6
Special Keys in the Right column below <EXIT>
Turn radio ON, the knob ON / Off volume control
7
8
Set Frequency Step <MENU> 1 <MENU> select a frequency step to lowest settings
9
Choose "A" Display Blue button <A / B>
10
Enter a receive frequency 145115 NOTE the 5KHz LSD
Pre conditions

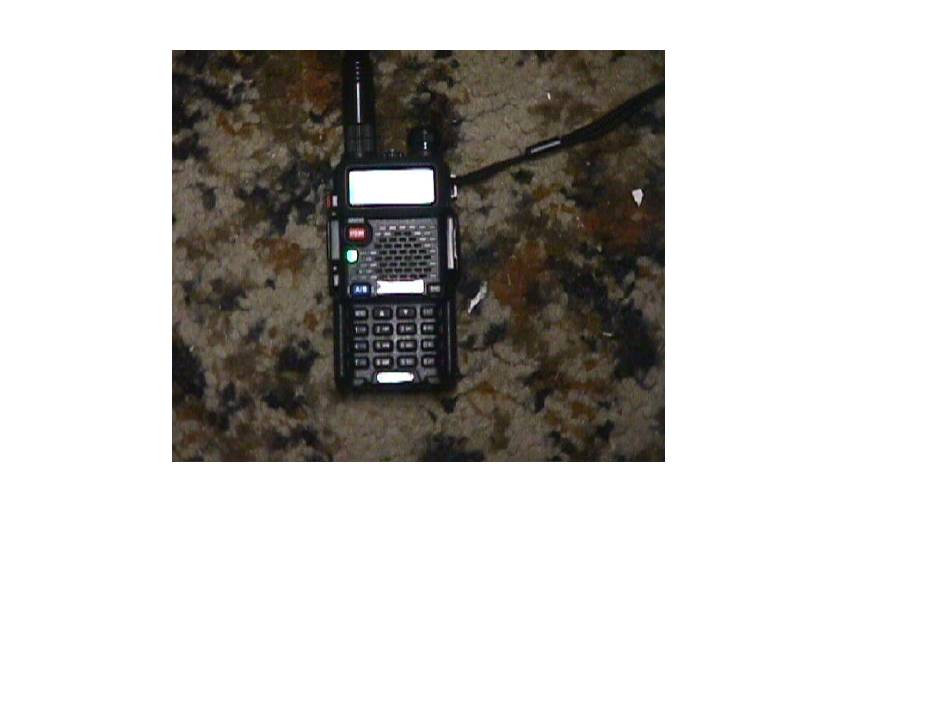

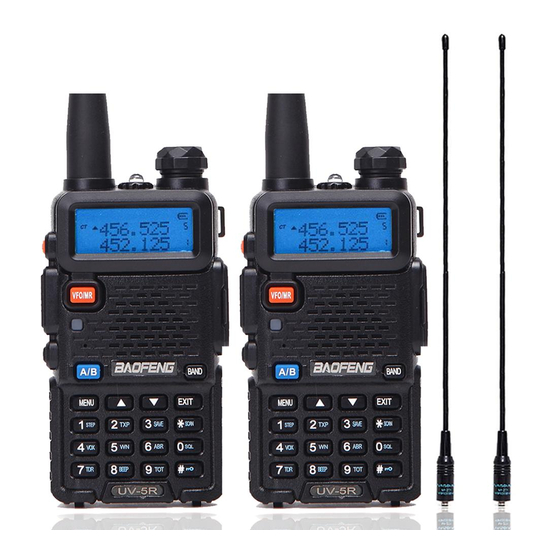

UV-5R Manual
pofung UV-5R
Page 1
Advertisement
Related Manuals for Baofeng Pofung UV-5R
Summary of Contents for Baofeng Pofung UV-5R
- Page 1 UV-5R Manual pofung UV-5R Pre conditions Charge Battery Attach antenna Take Note of: <MENU>, <Up Arrow>, <Down Arrow>, <EXIT>, Orange VFO/MR, BlueA/B, Black BAND, 10 Key Number Pad. Used to enter key numbers Special Keys in the Right column below <EXIT>...
- Page 2 UV-5R Manual The receive frequency is the only thing you can enter directly without using the MENU structure. Below are the MENU choices. Using the menu is relatively straight forward after you have used it a while: <MENU>Choice<MENU>setting<MENU> The arrow keys allows you to set receive frequency and scrol through menu choices and setting choices Choice Range <MENU>...
- Page 3 UV-5R Manual Transmission Time-out-Timer 15 – 600 (seconds) 60 Seconds R-DCS Receiver DCS Off, D023N - D754I R-CTCS Receiver CTCSS Off, 67.0 - 254.1 T-DCS Transmitter DCS Off, D023N - D754I T-CTCS Transmitter CTCSS Off, 67.0 - 254.1 Off Number Frequency Number Frequency 67.0...
- Page 4 UV-5R Manual S-CODE Signal Code 1 -15 Actual codes set by computer only SC-REV Scanner Resume Method 0 – 2 0, TO Values Notes Time Operation Carrier Operation Search Operation PTT-ID When to send the PTT-ID 0 – 3 0, Off Value Notes Beginning of transmition...
- Page 5 UV-5R Manual SFT-D Frequency Shift Direction 0 – 2 0, Off Value Notes "+ “- OFFSET Frequency shift amount 00.000 Mjz Values (MHz) Notes 00.000 - 69.990 MEM-CH Store a Memory Channel 000 – 127 Do 28 first <MENU> 27 <MENU> Chanel <MENU> <EXIT> DEL-CH Delete a memory channel 000 –...
- Page 6 UV-5R Manual PURPLE AL-MOD Alarm Mode 0 – 2 0, SITE Value Notes SITE Cycling tone over the air TONE Radio speaker only CODE Transmit 5s tone fol-lowed by Morse BAND Band Selection 0 – 1 0, VHF Value Notes TDR-AB Transmit selection while in 0 –...
- Page 7 UV-5R Manual RESET Restore defaults 0 – 1 1, All Value Notes VFO settings only Total reset* An example set up for a repeater: Key in 145115 the NCARC #1 2 Meter repeater <MENU>25<MENU>2<MENU><EXIT>. Tto set – DUP offset <MENU>26<MENU>00.600<MENU><EXIT>. To set / verify offset frequency MENU>13MENU>13<MENU>EXIT>.
