Phonic Ear Solaris Flex Quick Start Manual

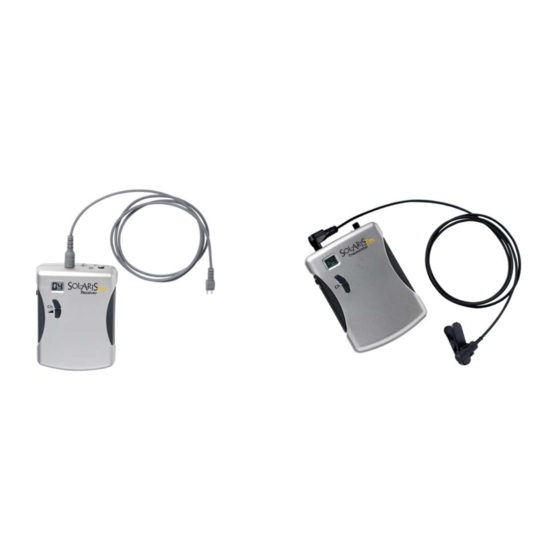

Phonic Ear – Solaris Flex
receiver
The on/off switch is on the left hand
side of the receiver.
On the top:
• Socket to plug in listening
headphones and leads to cochlear
implants. (headphones)
• Charging socket (flash of electricity)
• Light or status indicator
• A switch where you can toggle
between volume (balancing) and
channel.
On the front:
• Having selected the channel or
volume on the top, use increase
decrease buttons on the front to
change whichever you have
selected (Volume = 1-32)
• The channel number or volume is
then displayed in the window. If it
is the channel number it flashes all
the time, the volume is lit
continuously.
The System
transmitter
The on/off switch is on the left hand
side of the receiver.
On the top:
• Socket to plug in microphone
• Auxiliary socket to plug in eg DVD
• Charging socket (flash of electricity)
• Light or status indicator
• Mute switch. Depress to activate.
On the front:
The channel selection button. Press
and hold the decrease button until the
number in the window flashes. When
you press the buttons again you will be
able to move up and down to select
the channel. Once chosen, leave the
number until it flashes. That channel
is now locked in.
(microphone pic). An external
microphone is essential as it holds
the aerial.
player, laptop or television.
When activated, the green status
indicator will flash.
