AV Link TSL600 User Manual

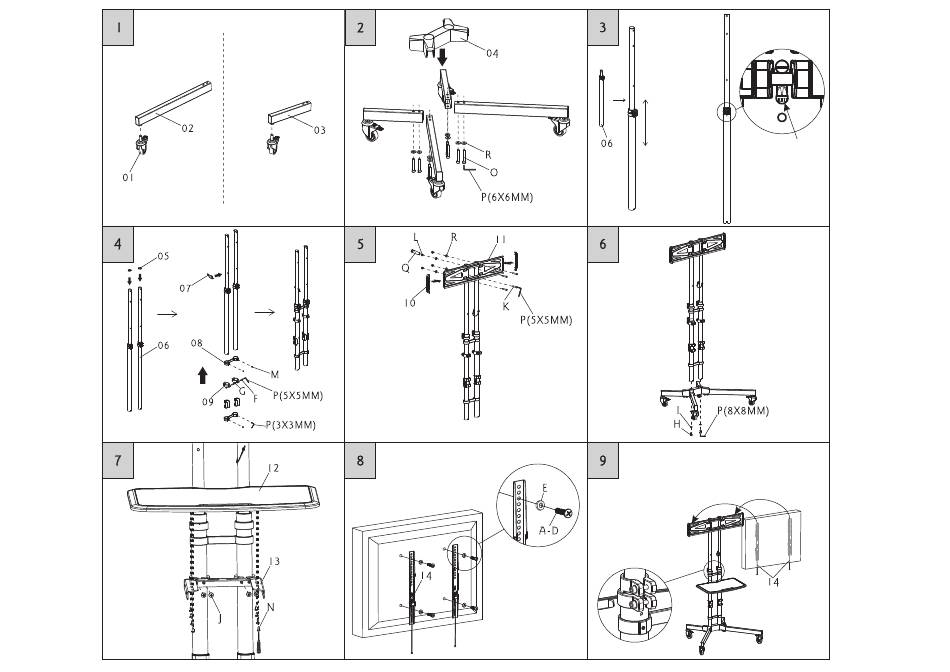

Insert the wheels 01 into the holes on each leg 02 and 03
Assemble the rods 06 together using bracket 08 and fixings as above
Attach the shelf
12 using fixing
bracket 13
Screw the legs onto fixing bracket 04 using fixings as above
Attach the fixing plate 11 onto the rods using fixings as above and add
the 2 end caps 10 to the plate
Attach the TV mounting plates
14 to the back of your TV as below.
If you use screws A or B use
washer E, if you use screws
C or D no washer is needed
Adjust the rods
06 up and down
to required height
Warning do not extend
the rods past the final
safety hole
Attach the plate and rods to the
feet assembly as above
Please ensure the screws in the centre of the rods
highlighted below are tightened securely before attempting
to hang your TV on the trolley
