Parts and Features

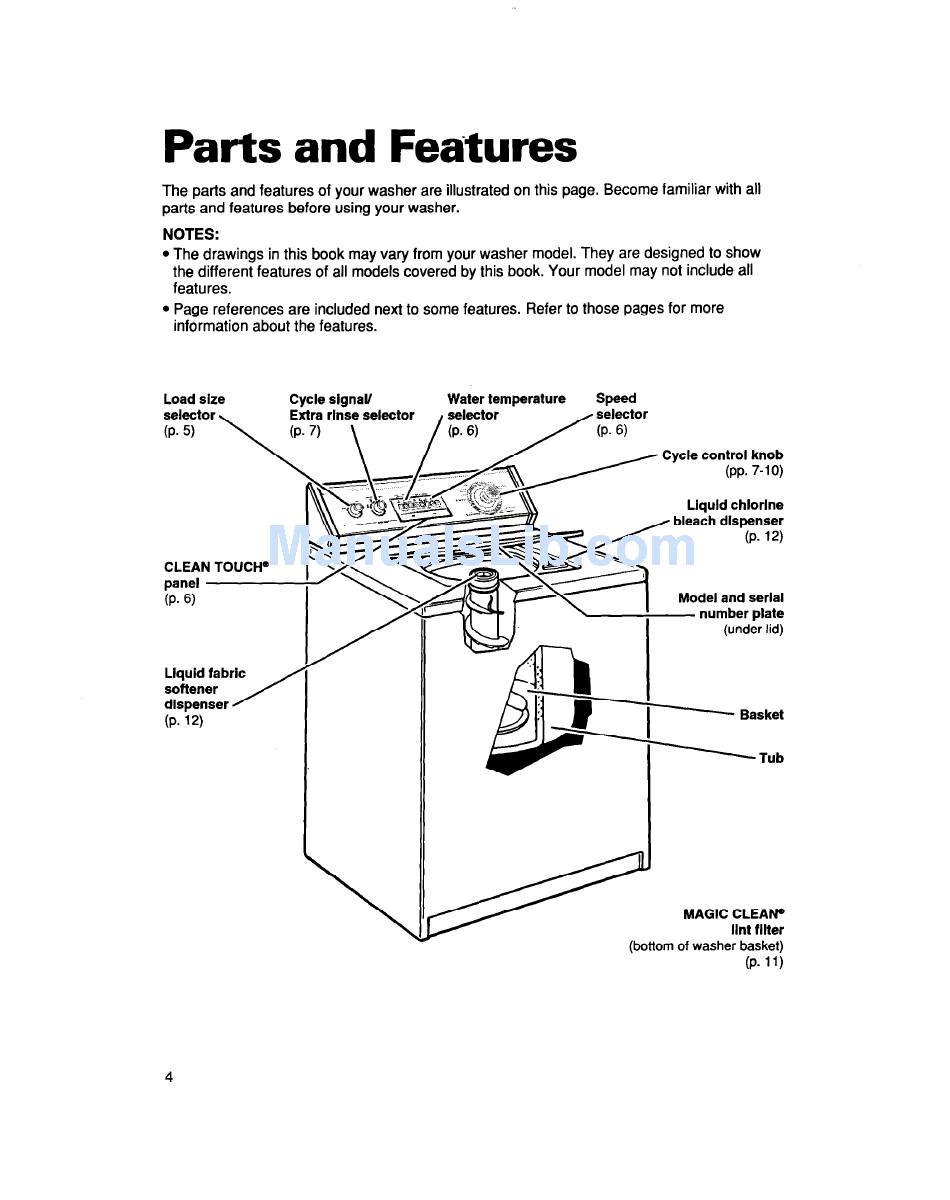

The parts and features of your washer are illustrated on this page. Become familiar with all
parts and features before using your washer.
NOTES:
l
The drawings in this book may vary from your washer model. They are designed to show
the different features of all models covered by this book. Your model may not include all
features.
l
Page references are included next to some features. Refer to those pages for more
information about the features.
Load size
Cycle signal/ Water temperature
Speed
selector Extra rinse selector
selector
selector
(P. 5)
(P. 7)
\
\
/
(P. 6) (P. 6)
CLEAN TOUCH@
panel
(P. 6)
Liquid fabric
softener
dlspenser
/
(P. 12)
Cycle control knob
(PP. 7-I 0)
Llquld chlorine
bleach dispenser
(P. 12)
Model and serial
number plate
(under lid)
- Basket
MAGIC CLEAW
llnt fllter
(bottom of washer basket)
(Pm 11)
