DOOR REVERSAL (OPTIONAL)

The following instructions are for models with round and
square-shaped doors.
Tools needed:
Min. 8" (203 mm) long
TORX , T20 and T25
® ® , ®
†
screwdrivers

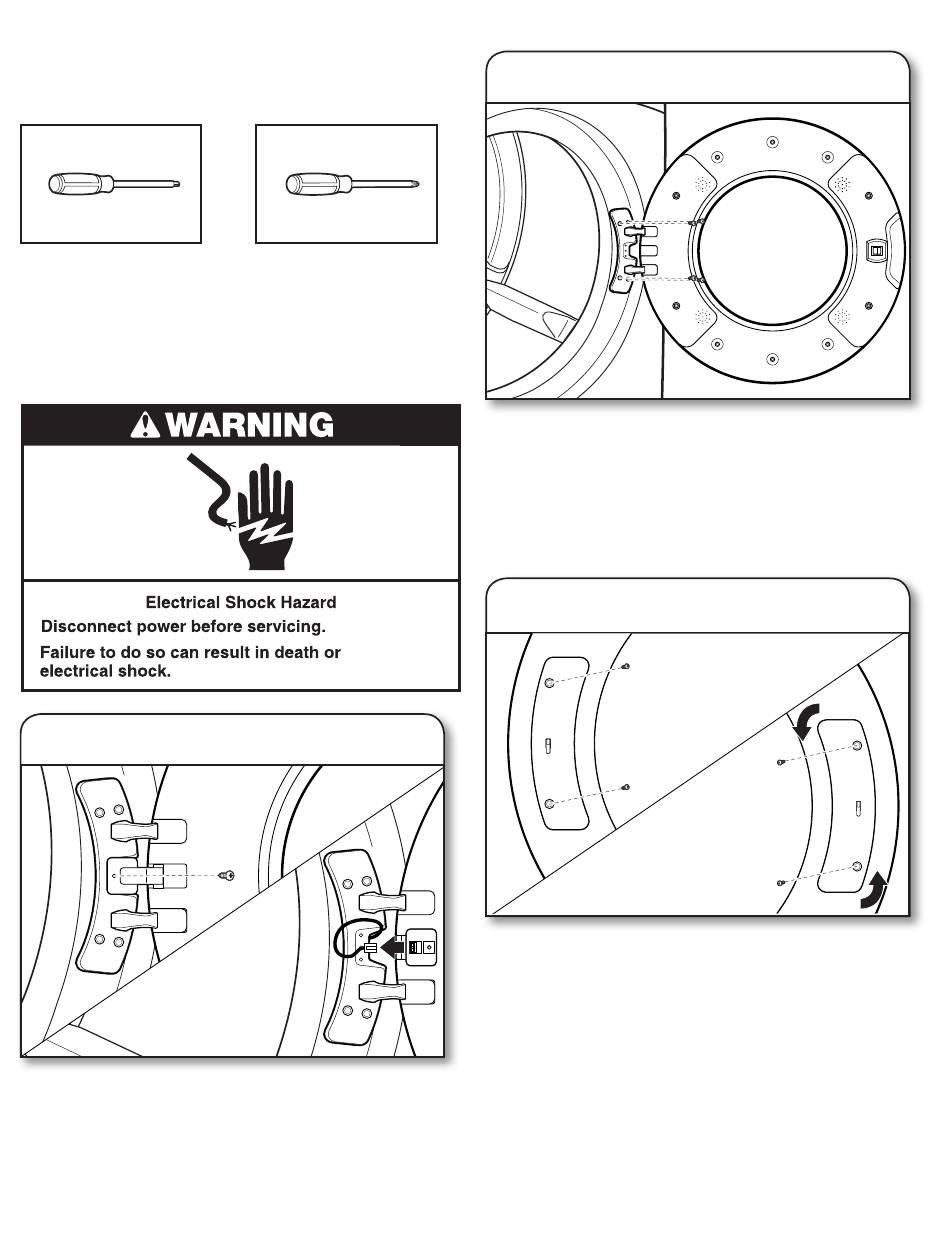

REVERSE DOOR SWING: ROUND-SHAPED DOOR
DOORS WITH ELECTRICAL WIRING:
1.
Disconnect wiring from door
Using a Phillips screwdriver, remove middle screw in hinge.
Disconnect wiring. Tuck wiring into opening.
† ® TORX, T20, and T25 are registered trademarks of Acument Intellectual Properties, LLC.
24
#2 Phillips screwdriver
ALL DOORS:
2.
Remove door from dryer
IMPORTANT: If the protective film has not yet been removed
from the dryer, peel the film from the dryer door before
proceeding.
Using a T25 screwdriver, remove the four screws securing
®
the door hinge to the dryer and lift the door up and out to
remove. Place the door on a soft towel or other non-scratch
surface.
3.
Move the door strike
Using a T25 screwdriver, remove the two screws securing
®
the door strike to the door frame of the dryer. Rotate the strike
180° and attach to the opposite side of dryer door frame with
the two screws removed earlier, as shown.
