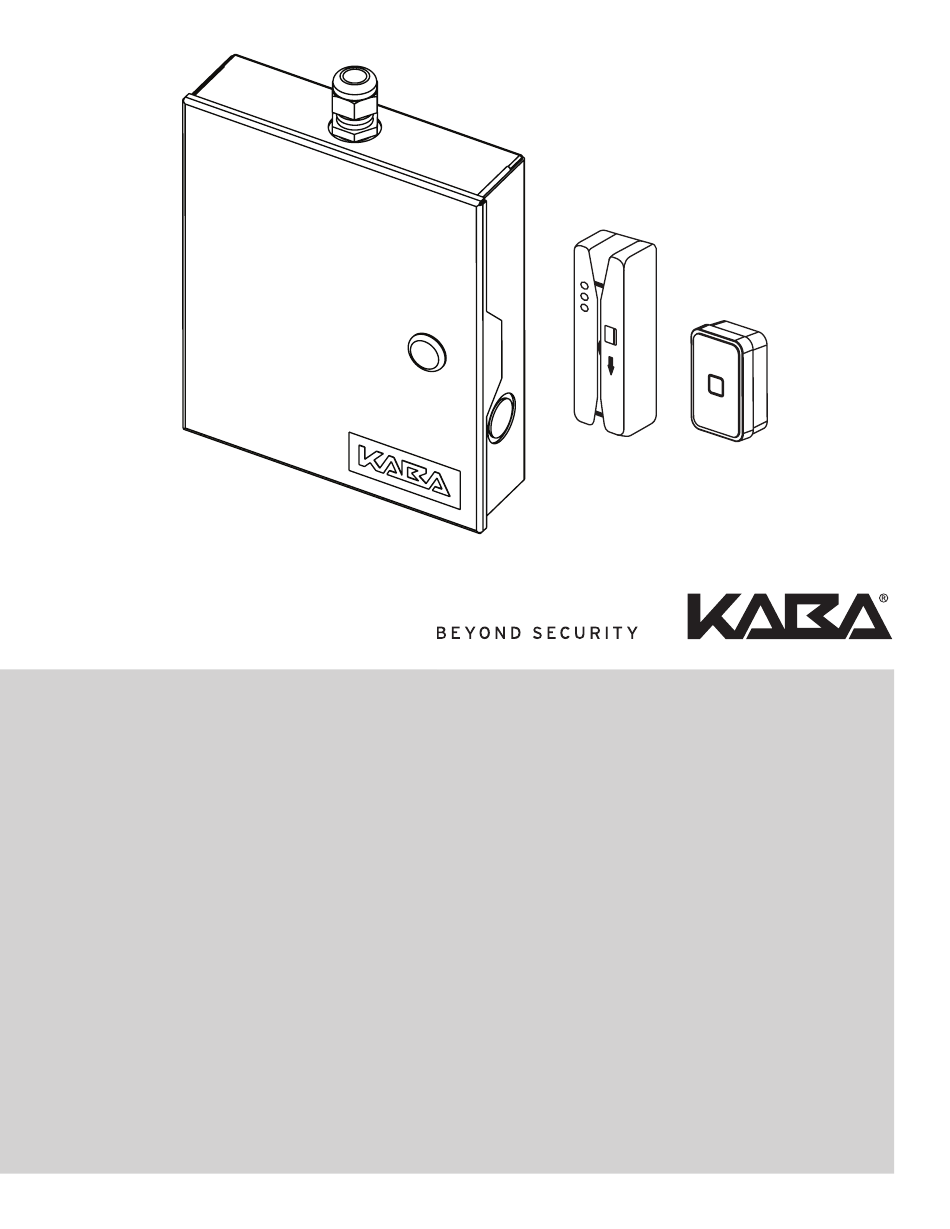

  • Page 1 INSTALLATION GUIDE Remote Access Controller - RAC 4...

  • Page 2: Table Of Contents

    4.1 Pre-Installation Procedures ..........8 Step 1: Identify a secure location for the RAC 4 enclosure ......8 Step 2: Identify location(s) for card reader and peripherals .

  • Page 3: Introduction And Disclaimers

    (2) this device must accept any interference received, including interference that may CAUTION: cause undesired operation. Wear safety glasses when using any tools. INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 2...

  • Page 4: Product Description

    RS-232 Interface for programming Standard Unlock delay programmable by Dip Switches Standard Fire Alarm Input Standard Remote Unlock input (No Audit in FDU) Standard Request to Exit (REX) input Standard INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 3...

  • Page 5: Components

    (PCB) and power adaptor jack. Knockouts are available on 3 sides for routing of peripheral cables. (B) Controller Board (PCB): controls all the features of the RAC 4 system. INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 4...

  • Page 6: Locking Devices

    2.2.4 Optional peripherals horizontal card reader that comes in a satin The RAC 4 can also be used with the following stainless steel finish. For use in elevator types of peripherals: panels only, where enough space permits (minimum 4.5” depth required).

  • Page 7: Checklist And Exploded Views

    Input power requirements • Wire cutter / stripper of 110-120 VAC, 60 Hz. • FDU/ATLAS programmed "Test lock" Keycard • Hammer or rubber mallet • Awl or center punch INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 6...

  • Page 8: Exploded View

    3.2 Exploded View Figure 9 Hardware Bag Controller Box Power Adaptor North American International Peripherals / Optional Devices INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 7...

  • Page 9: System Installation Overview

    RAC 4 card reader and peripherals, and select the enclosure knock-out to be Step 2: Identify location(s) for card removed for installation of the strain relief. reader and peripherals INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 8...

  • Page 10: Installation & Wiring Procedures

    Drywall surface mounting: tap the wall inserts (provided in the installation hardware bag) into the wall using a rubber INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 9...
  • Page 11 Annex E, or included with the card reader. 2. Drill the holes in the wall according to the diameters indicated on the drilling template in Annex G, based on the type of surface INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 10...
  • Page 12 4 enclosure as per connections shown in Annex A, Table 1, or refer to Annex B, Figure 3. NOTE: The minimum depth required for mounting of the insert card reader is 4.5”. INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 11...

  • Page 13: Step 7: Connect Peripheral Wiring

    2-conductor cable from the Other Devices 0.75 remote unlock button to the controller PCB connector J8, pins 1 & 2. Connect as per Annex A, Table 3. INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 12...

  • Page 14: Step 8: Install Strain Relief Bushing (For Power Adaptor Only)

    RAC 4 enclosure to help prevent the possibility of wire tampering. 3. Plug the power adaptor into the AC power source. INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 13 Page 2...

  • Page 15: Settings And Operation

    3. Verify that the initialization LED (D41) is press it and verify that the door unlocks. OFF. 9. If the RAC 4 is connected to a fire panel and 4. Set the DIP switch positions back to the the electromagnetic lock powered by the...

  • Page 16: Programming And Auditing

    Programming keycard is not required Cut a piece of each type of Velcro from for the RAC 4 as the system is already in the strip provided. programming mode. Depending on the configuration of the system attach one side of the Velcro to...

  • Page 17: Power Failure

    CAUTION: Do not exceed the load limitations of the control panel. The maximum recommended load for the output relay in the RAC 4 system is 1 Amp at 30 VDC. RAC 4 The current supplied by the controller PCB is...

  • Page 18: Annexes

    Please refer to ordering guide for current numbering. See detailed peripheral connections in Annex B. For latest part numbers please refer to the latest ordering guide or contact Kaba Customer Support. INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 17...
  • Page 19 Strike (H) or J19 pin 1 Maglock (I) Table 2 J19 pin 2 J19 pin 3 PCB Status LEDs Description Initialization Programming Access Relay 0 Functionality 1 Functionality 2 INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 18...

  • Page 20: Annex B Peripheral Wiring Diagrams

    Contactless RAC 4 PCB Reader Figure 3: Insert and Swipe Reader Wiring Insert Reader Swipe Reader 5V GND 12V Ingress 12V 1 RAC 4 PCB INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 19 5V GND 12V...
  • Page 21 Bypass wire and connect J18 to the Fire Alarm panel as per Fire Alarm Panel Wiring diagram (see Annex B, Figure 10). In this case the Electric Strike MUST be powered from the RAC 4’s +12V output as shown in this diagram.
  • Page 22 RAC 4’s +12V output as shown in this diagram. Figure 7: Externally Powered Locking Device Wiring (+12 volts or + 24 volts) IMPORTANT: Kaba does not provide Technical or Field Support on 3 party locking devices. Please contact the device manufacturer for assistance on installation or functional issues.
  • Page 23 REX input (J8, pins 3 & 4). Figure 9: Motion Detector Wiring 12V 1 RAC 4 Enclosure RAC 4 PCB Black Wire Red Wire 5V GND 12V Motion Detector INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 22...
  • Page 24 See Notes 1 and 2 5V GND 12V Note 1: When the RAC 4/4XT is connected to a Fire Alarm Panel, it must be connected to a Normally Closed dry contact output. Note 2: If the Fire Alarm Panel connection is not required, place a jumper wire between pin 3 and 4 of J18.

  • Page 25: Annex C Protection From Electromagnetic Interference

    6.0 Annex C Protection from Electromagnetic Interference As per any other electronic equipment, the RAC 4 can be affected by electromagnetic interfer- ence caused by industrial electrical equipment such as elevator motors. To prevent the unit from operational instability such as "freezing" or losing programming, shei- lded cables should be used and connections made as per the diagram below.

  • Page 26: Annex D Quick Troubleshooting Guide

    - Verify that the RAC 4 is powered. - Verify the wiring to the card reader. Initialization card not accepted - If the Initialization LED (D41) on the RAC 4 controller is ON: • The RAC 4 has already been initialized. To re-initialize the reader, follow the procedure described in section 5.3 “Hotel ID Re-...
  • Page 27 - Verify that the card is encoded properly. - Verify that the time is correct, both on the RAC 4 and the FDU (or Atlas). If not, do a Reset Lock Time. - Re-program the RAC 4. No response to valid contactless keycard - Verify that the contactless reader is wired LED stays solid green.
  • Page 28 • Verify that the Request to Exit or Remote Unlock activation unlocks the door. • Verify that the card is encoded properly. • Verify that the RAC 4 is not in Lockout mode. • Verify that the RAC 4 is programmed properly. Fire Alarm does not Unlock door - Verify that the Fire Alarm input is connected to a Normally Closed contact.
  • Page 29 LEDs should blink. If not, reset the RAC 4 Controller: press the Reset switch (SW1) or disconnect and reconnect the power. - Verify that the cable between the RAC 4 and the FDU or IPM is connected properly. - If the RAC 4 is not initialized (Initialization LED, D41, is OFF) •...

  • Page 30: Annex E Drilling Templates For Swipe Card Reader

    6.0 Annex E Drilling Templates for Swipe Card Reader INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 29...
  • Page 31 6.0 Annex E Drilling Templates for Swipe Card Reader INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 30...

  • Page 32: Annex F Drilling Template For Insert Card Reader

    6.0 Annex F Drilling Template for Insert Card Reader INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 31...

  • Page 33: Annex G Drilling Template For Contactless Card Reader

    6.0 Annex G Drilling Template for Contactless Card Reader INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 32...

  • Page 34: Annex H Drilling Template For Contactless Card Reader

    7301, Décarie Boul. Montréal, Qc, Canada H4P 2G7 www.kaba-ilco.com DATE UNE VERSION FRANCAISE DE CE DOCUMENT SHEET 21AU14 EST DISPONIBLE SUR DEMANDE. DT-514800 REV-1 1 OF 1 15174 INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 33...
  • Page 35 INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14 Page 34...
