CMOS 16-BIT SINGLE CHIP MICROCONTROLLER
S5U1C17W23T Manual
(Software Evaluation Tool for S1C17W22/W23)
Rev.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5U1C17W23T and is the answer not in the manual?

Questions and answers

Related Manuals for Seiko Epson S5U1C17W23T

Summary of Contents for Seiko Epson S5U1C17W23T

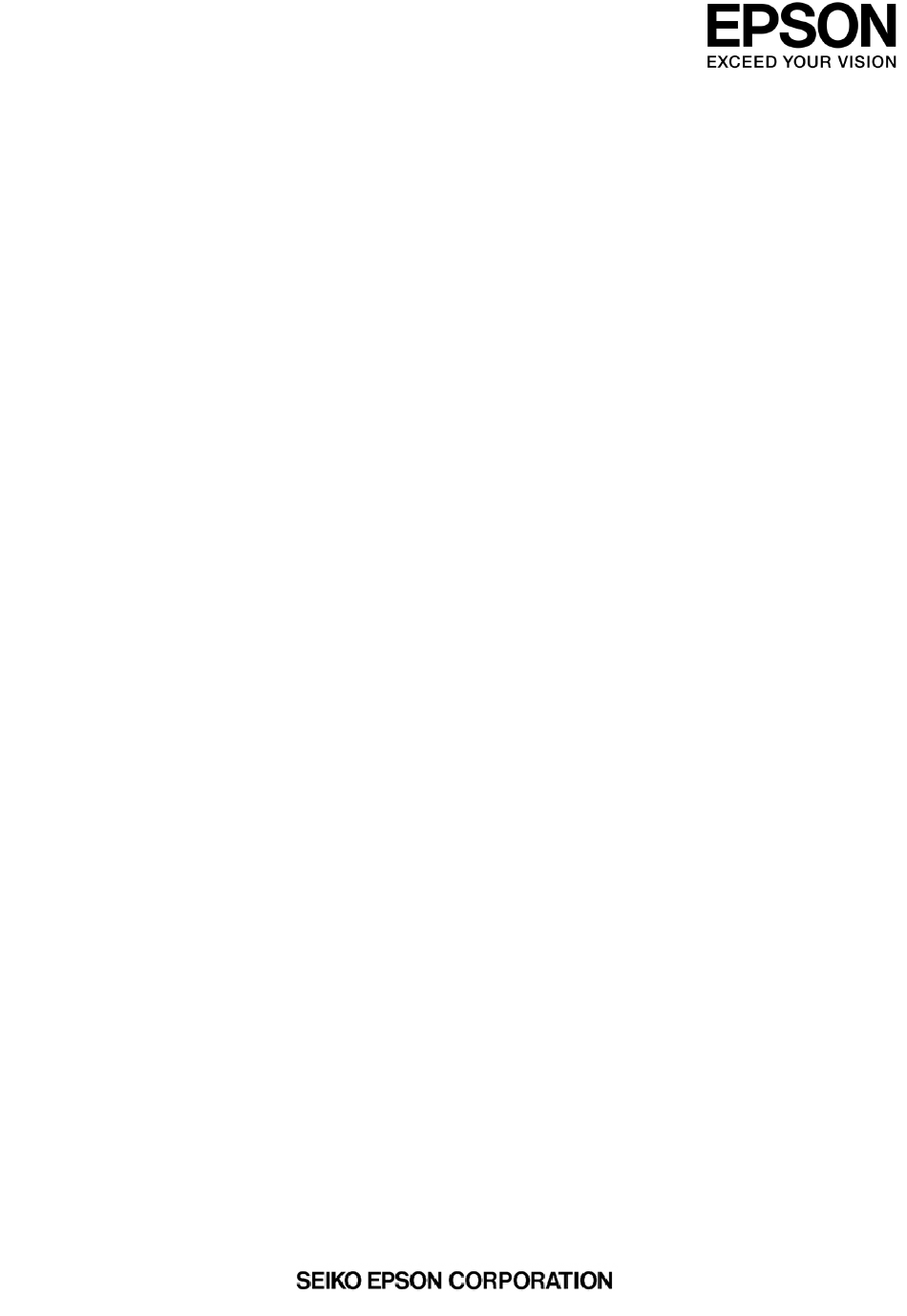

  • Page 1 CMOS 16-BIT SINGLE CHIP MICROCONTROLLER S5U1C17W23T Manual (Software Evaluation Tool for S1C17W22/W23) Rev.1.1...
  • Page 2 Seiko Epson. Seiko Epson reserves the right to make changes to this material without notice. Seiko Epson does not assume any liability of any kind arising out of any inaccuracies contained in this material or due to its application or use in any product or circuit and, further, there is no representation that this material is applicable to products requiring high level reliability, such as, medical products.
  • Page 3 ■Tool type Hx: ICE Tx: A socket for mounting Cx: Compiler package Yx: Writer software ■Corresponding model number [17xxx: for S1C17xxx] ■Tool classification [C: microcomputer use] ■Product classification [S5U1: development tool for semiconductor products] Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)

  • Page 4: Table Of Contents

    3. Block Diagram ......................8 4. Connectors ......................... 9 Extension Interface Connector (CN1) ..................9 Debug Interface Connectors (CN2-1 to CN2-2) ..............10 Appendix A Circuit Diagram and Component Table ..........11 Revision History ......................16 Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)

  • Page 5: Overview

    1. Overview Overview The SVT17W23 Software eValuation Tool for S1C17W23 (S5U1C17W23T) is a board for evaluating the S1C17W22/W23 single-chip microcontroller manufactured by Seiko Epson. This board incorporates the S1C17W23 microcontroller, an LCD panel, a tactile switch, a buzzer, debug interface connectors, and other components.

  • Page 6: Usage Methods

    ICDmini, set the SW8 DIP switch (selection of the voltage for programming the flash memory) to ON. This board (S5U1C17W23T) ICDmini(S5U1C17001H) For power supply...
  • Page 7 (2) Supply electric power from the stabilized power supply to the CN3 (J4) power supply connector header on this board. Ensure that the supplied power voltage is within the operational power supply voltage range for the S1C17W23. This board (S5U1C17W23T) Jumper switch for selecting the operational...

  • Page 8: Name And Function Of Each Part

    VPP terminal (TP1) Reset switch Tact switches RFconvertor parts area (ch0) For ceramic (SW5) (SW1, SW2, oscillator SW3 and SW4) parts aera (X1) Figure 2.1 Name of each part on the front surface of the S5U1C17W23T Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)
  • Page 9 CN2-1 (J5) connectors CN2-2 (J3) Figure 2.2 Name of each part on the back surface of the S5U1C17W23T Caution! The position of pin 1 on the CN2-1(J5) connector is as shown above. Take due care of the connector orientation when connecting the ICDmini and this board.

  • Page 10: Function Of Each Part

    To measure the current consumption for the S1C17W23 alone, insert an ammeter between these jumper switches to measure the current. Remove solder when operating the RF converter by mounting a thermistor (or another resistor type) on this board. Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)

  • Page 11: Function Of Each Component

    Resistive sensor 1 (DC bias, channel 1) Sensor SENR5 Resistive sensor 2 (DC bias, channel 1) Resistor Not use Resistive sensor SENR6 Not use Battery holder Button battery holder LCD(J2) 64seg x 16com, 1/4 bias, 1/16 duty Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)

  • Page 12: Block Diagram

    SEG25 ICDmini DSIO Ver.2 CP1-4 CN2-1 DST2 COM0 CN2-2 (GNU17v2.1.0 or higher) Button battery Caution! No temperature/humidity sensor or OSC3 oscillator is provided. Only through-holes are provided. Figure 3.1 Block diagram for the S5U1C17W23T1 Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)

  • Page 13: Connectors

    P34/UPMUX/SEG62 P11/UPMUX/OPOUT1/ADIN1 /COM17/COM9 P33/UPMUX/SEG63 P10/UPMUX/OPOUT0/ADIN2 /COM16/COM8 P32/UPMUX/SEG64 Power supply (+) /COM15/COM7 P31/EXCL21/UPMUX/SEG65 P07/UPMUX/OPIN0N/ADIN3 /COM14/COM6 P30/EXCL20/UPMUX/SEG66 P06/UPMUX/OPIN0P/ADIN4 /COM13/COM5 P27/EXCL11/UPMUX P05/UPMUX/ADIN5 /SEG67/COM12/COM4 P26/EXCL10/UPMUX P04/RTC1S/UPMUX /SEG68/COM11/COM3 P25/#ADTRG/UPMUX/SEG69 P03/UPMUX/RFIN0 /COM10/COM2 P24/UPMUX/SEG70 P02/UPMUX/REF0 /COM9/COM1 P23/UPMUX/SEG71 P01/UPMUX/SENA0 /COM8/COM0 P22/UPMUX/SENB1 P00/UPMUX/SENB0 Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)

  • Page 14: Debug Interface Connectors (Cn2-1 To Cn2-2)

    Table 4.3 Pin layout for debug interface connector CN2-2 Pin name Function 4 3 2 1 Power input for programming the Board flash memory Power supply (GND) RESET Target reset signal input VCCIN Target voltage output Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.1)

  • Page 15: Appendix A Circuit Diagram And Component Table

    Appendix A Circuit Diagram and Component Table Appendix A Circuit Diagram and Component Table Seiko Epson Corporation S5U1C17W23T Manual (Rev.1.0)
  • Page 16 Appendix A Circuit Diagram and Component Table Seiko Epson Corporation S5U1C17W23T Manual (Rev. 1.0)
  • Page 17 Appendix A Circuit Diagram and Component Table LCD panel wiring diagram LCD panel specifications Voltage Duty Bias Frame frequency 4.5V 1/16 64Hz S5U1C17W23T Manual Seiko Epson Corporation (Rev. 1.1)
  • Page 18 A2-4PA-2.54DS(71) 4pin HIROSE ELECTRIC CO.,LTD. R1,R2 Resistor MCR03EZPJ220 22Ω/1608 ROHM Co., Ltd Resistor MCR03EZPJ103 10kΩ/1608 ROHM Co., Ltd Resistor MCR03EZPJ330 33Ω/1608 ROHM Co., Ltd SW1,SW2,SW3, Tactile switch SKRAAKE010 ALPS ELECTRIC CO., LTD. SW4,SW5 Seiko Epson Corporation S5U1C17W23T Manual (Rev. 1.1)
  • Page 19 Model number Specifications Manufacturer Incorporated Jumper switch JS-1 Mac-Eight Co.,Ltd. Incorporated Screw FB-0305N M=3, L=5mm Wilco. Incorporated Spacer HIROSUGI-KEIKI ASB-309.5E M=3, L=9.5mm Co., Ltd. Each component may be subject to change without prior notice. S5U1C17W23T Manual Seiko Epson Corporation (Rev. 1.1)

  • Page 20: Revision History

    Revision History Revision History Attachment-1 Rev. No. Date Page Category Contents Rev.1.0 2013/05/17 Newly Rev.1.1 2014/12/16 10-11 Update Appendix. A Changed from S1C17W22 to S1C17W23 Seiko Epson Corporation S5U1C17W23T Manual (Rev. 1.1)
