Congratulations on your purchase of an Arnott
to offer a high quality product at the industry's most competitive pricing. Thank you for your confidence in us
Proper installation is essential to experience and appreciate the benefits of this system. Please take a moment
to review these installation instructions before you begin to install these components on your vehicle. The
removal and installation of air suspension products should only be performed by a fully qualified, ASE
It is equally important to be aware of all necessary safety measures while installing your new Air Suspension
System. This includes proper lifting and immobilizing of the vehicle and isolation of any stored energy to
WARNING: The air suspension system is under pressure (up to 10 bar, or 150 lbf/in). Verify pressure has been relieved
and disconnect power to the air suspension system prior to disassembly. Do not allow dirt or grease to enter the system.
Always wear standard hand, ear, and eye protection when servicing the air suspension system.
Arnott
is committed to the quality of its products. If you have a question or problem with any Arnott product,
®
please contact Arnott by calling 800-251-8993 during normal business hours or email techassistance@arnottinc.com.
1
P-2210

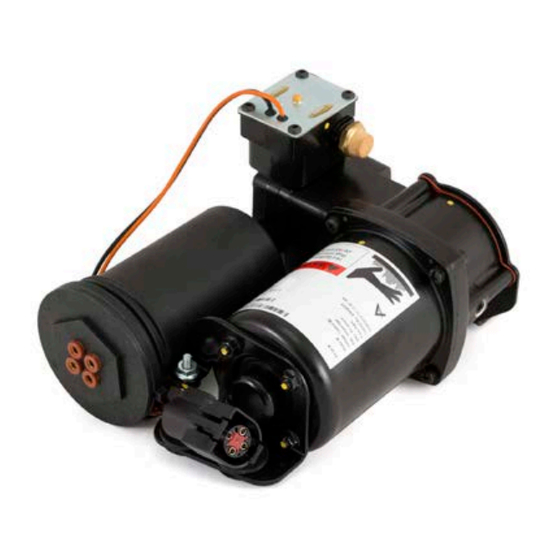

ARNOTT AIR SUSPENSION COMPRESSOR
FOR
LINCOLN MARK VIII (8)
Certified, professional.
prevent personal injury or property damage.
Engineered to Ride, Built to Last
"
2210
P-
1993-1998
air suspension product. We at Arnott Incorporated are proud
®
and our product.
"
®
REV 3
04/16/2015
Advertisement
Table of Contents
Related Manuals for Arnott P-2210
Summary of Contents for Arnott P-2210
- Page 1 Always wear standard hand, ear, and eye protection when servicing the air suspension system. Arnott is committed to the quality of its products. If you have a question or problem with any Arnott product, ® please contact Arnott by calling 800-251-8993 during normal business hours or email techassistance@arnottinc.com.
- Page 2 2210 ARNOTT AIR SUSPENSION COMPRESSOR 1993-1998 LINCOLN MARK VIII (8) GENERAL INFORMATION: Reading this manual signifies your agreement to the terms of the general release, waiver of liability, and hold harmless agreement, the full text of which is available at www.arnottinc.com.
- Page 3 2210 ARNOTT AIR SUSPENSION COMPRESSOR 1993-1998 LINCOLN MARK VIII (8) Remove the radiator grille opening panel moulding across the top of the headlamps and front bumper cover. (FIGURE B for steps 5-13) Remove six (6) screws (three (3) each side) attaching front bumper cover to right and left front fender splash shields at the front fender wheel opening.
- Page 4 2210 ARNOTT AIR SUSPENSION COMPRESSOR 1993-1998 LINCOLN MARK VIII (8) Remove vapor canister retaining bolt. Partially lower fuel vapor canister and disconnect fuel vapor hose and fuel vapor canister purge regulator valve from fuel vapor canister (FIGURE C) FIGURE C Disconnect electrical connector for compressor motor (located on front face of compressor bracket).
- Page 5 2210 ARNOTT AIR SUSPENSION COMPRESSOR 1993-1998 LINCOLN MARK VIII (8) Remove screws attaching noise attenuator from front face of compressor bracket and remove attenuator. FIGURE D FIGURE E Removal complete. AIR SUSPENSION COMPRESSOR INSTALLATION Tighten all nuts and bolts to manufacturer's specifications during the installation process.
- Page 6 SPRINGS ARE EVIDENT IF THEY ARE LEAKING. THIS WILL CAUSE THE COMPRESSOR TO OVERHEAT FROM CONTINUOUS OPERATION. Arnott is committed to the quality of its products. If you have a question or problem with any Arnott product, ® please contact Arnott by calling 800-251-8993 during normal business hours or email techassistance@arnottinc.com...
