Portable Gas Analyzer MULTIGASSENS-M2

USER MANUAL

Russia

St-Petersburg, 2019 .

Table of Contents

Need help?

Do you have a question about the MULTIGASSENS-M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for IGM MULTIGASSENS-M2

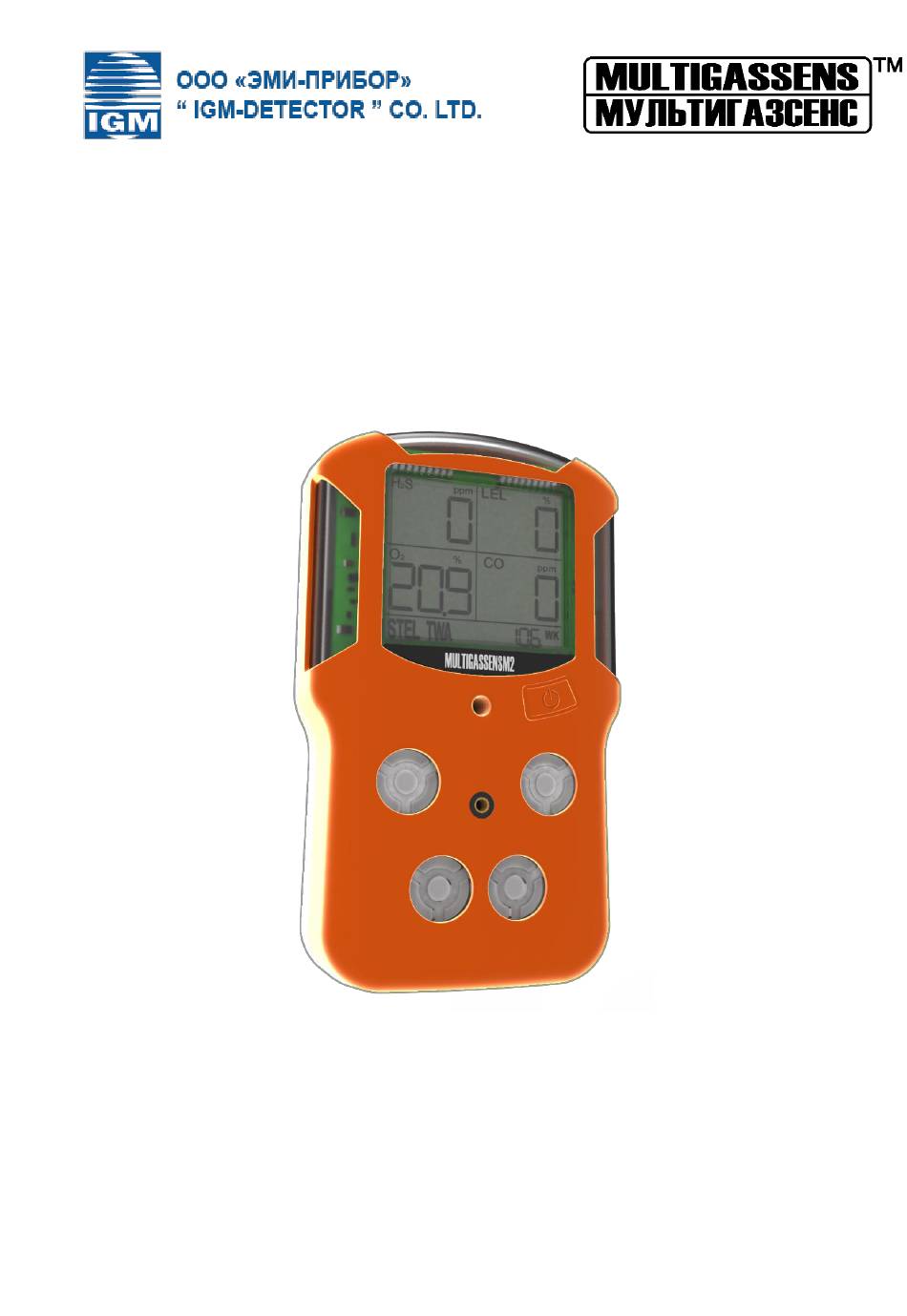

Page 1 Portable Gas Analyzer MULTIGASSENS-M2 USER MANUAL Russia St-Petersburg, 2019 .
Page 2: Table Of Contents
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 CONTENTS General Information ............................3 Description and Operation ......................... 3 Function and Application Range ......................3 Device and principle of operation ..................... 3 Functional principle of the device ..................... 5 Technical characteristics ........................5 Explosive protection ........................12 Labelling and packaging .........................14 Delivery set ............................14...
Page 3: General Information
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 General Information This operation’s manual in coincidence with a passport, is a guide to the operation and maintenance of the portable gas analyser «МULTIGASSENS-М2» and contains descriptions of the principle of operation, technical characteristics and other information, necessary to ensure proper operation. The devices are designed to measure the concentration of combustible gases, volume fraction of oxygen and carbon monoxide, as well as the volume fraction of hydrogen sulphide.
Page 4 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 On the front panel of the case are: - light alarm (1); - high-contrast display (2); - siren (3); - oxygen concentration sensor (4); - instrument control button (5); - carbon monoxide and hydrogen sulfide concentration sensor (6);...
Page 5: Functional Principle Of The Device
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 1.2 Functional principle of the device For CXHY measurement the device contains a high-capacity low-consuming optical sensor which functional principle is based on the preferential absorption of infrared radiation by molecules of hydrocarbons in the field of 3,3 - 3,4 microns wavelengths. For measurement of oxygen and toxic gases concentration the device contains sensors which utilise the measurement principle of electrochemical method.
Page 6 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 Table 3 Parameters Value Unit of measurement Lithium thionyl Battery chloride LS14500 Rated voltage of DC power Р0 Ex ia I /0 Ex ia IIС Mark of explosive protection Dust and moisture protection IP 68 Warm-up time and preparation for the operating mode (max.) Battery life at 25°C (min.) years...
Page 7 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 1.3.4 Metrological characteristics Ranges of indications, measuring ranges, limits of permissible basic error and the limits of permissible time of setting the gas analyzers are shown in Table 4 and Table 5. Таble 2 - Optical sensors for combustible gases. Target gas Indications range Measurement...
Page 8 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 Пределы допускаемой Предел Наимень основной погрешности допускае ший мого разряд абсолютной, Определяемы Диапазон измерений объемной времени индикаци объемная й компонент доли определяемого компонента установл относит и дисплея доля ения ельной газоанали определяемог показани затора о...
Page 9 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 Пределы допускаемой Предел Наимень основной погрешности допускае ший мого разряд абсолютной, Определяемы Диапазон измерений объемной времени индикаци объемная й компонент доли определяемого компонента установл относит и дисплея доля ения ельной газоанали определяемог показани затора о...
Page 10 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 Пределы допускаемой Предел Наимень основной погрешности допускае ший мого разряд абсолютной, Определяемы Диапазон измерений объемной времени индикаци объемная й компонент доли определяемого компонента установл относит и дисплея доля ения ельной газоанали определяемог показани затора о...
Page 11 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 Таble 3 - Electrochemical sensors Target gas Indications Measurement range Accuracy Response Display (measuring range time, resolution channel) T90, s absolute relative From 0 to 30 Oxygen (О From 0 tо 30 % ±0,5 % 0,1 % From 0 tо...
Page 12: Explosive Protection
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 At the end of the battery life, there are two options: replace the batteries with a new one and dispose of the old battery or dispose of the device and battery. Also, in addition to battery replacement, sensors and dust filters can be replaced by the manufacturer or its authorized service center, or by the customer himself, according to the manufacturer's instructions.
Page 13 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 electric circuit “ia”. The level of intrinsically safe circuit “ia” is provided: -Fulfilment of the requirements for electrical insulation strength; -Meeting the requirements for leakage paths and electrical gaps. Implementation of device’s explosion-proof type of explosion protection "intrinsically safe electrical circuit ia"...
Page 14: Labelling And Packaging
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 1.5 Labelling and packaging 1.5.1 Labelling Marking of the device is made on the nameplate located on the rear panel of the case (Image.1 - position 8). The plate contains the data specified in table 6. Таble 6 №...
Page 15 MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 All operation and calibration of the device must be carried out in compliance with the requirements for protection from static electricity. The device ensures safety in compliance with the requirements (rules, conditions) provided by the operational documentation.
Page 16: Device Display
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 pressing the button: "Main display" – current readings of the atmosphere gas content, updated in real time. "Min display" - displays the minimum values of the gas concentration, at the bottom of the display is displayed symbols «Low».
Page 17: Signalling
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 3) the figures display the concentration of oxygen (0 – 30 %Vol); 4) the concentration of carbon monoxide (0-999 ppm); 5) indication of remaining work time in weeks; 6) indication of remaining time and work as a percentage of service life; 7) amount of work time remaining;...
Page 18: Embedded Device Clock
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 When the values "Level 1" (low oxygen concentration) are reached, the light, vibration alarm, sound with a pressure level of 95 dBA is triggered through the O2 channel. It is not possible to turn off the forced alarm, all types of alarms are switched off when the concentration of the measured gases exceeds the threshold "Level 1".
Page 19: Setting Device Parameters
- check of structural elements for mechanical damage; - check for the seal. Prophylactic maintenance is carried out every 3 months Verification Verification is made according to the document MP 98-221-2017 "Portable gas analyzers MULTIGASSENS-M2. Calibration procedure ". Calibration interval - 1 year.
Page 20: Storage And Transportation
80 to 120 beats per minute. Utilization The gas analyzer "MULTIGASSENS-M2" refers to the waste of the fifth category and can be disposed of as household waste, with the exception of batteries containing in its composition, a harmful chemical element –...
Page 21: Troubleshooting
MULTIGASSENS-М2 USER MANUAL Rev. 1.8 07.02.19 Troubleshooting The device is equipped with a self-diagnosis system that can detect faults. If the device does not function properly or does not work, check the possible faults listed in table 9. Таble 9 Fault Possible cause Method to fix...
Page 22: Warranty And Repair
Commercial department: +7 (495) 644-66-90, +7 (812) 601-06-90 Quality department: +7 (812) 601-06-94 E-mail: info@igm-pribor.ru support@igm-pribor.ru ATTENTION! WHEN OPERATING, THE INSTRUMENT SHOULD BE PROTECTED FROM SHOCKS AND DROPS AS WELL AS INGRESS OF WATER AND DIRT TO THE HOLES OF...
