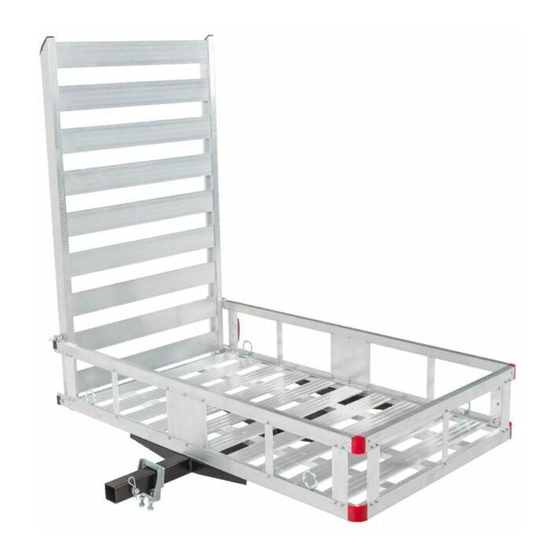

Aluminum Scooter & Wheelchair Carrier
Instructions for Part #WCC-500A
General Guidelines
• It is the user's responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product's owner to furnish the instructions to any person that borrows
or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all parts are in safe working
order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions. Please use common sense and prac-
tice general safety measures when using this product.
• Parts and/or instructions are subject to change without notice.
Safety
• Follow all warnings and instructions marked on the product.
• Never exceed the 500 lb weight capacity. Distribute loads evenly.
• Never exceed the maximum trailer hitch tongue weight rating of your trailer hitch. Hauling weight
may be limited by your vehicle's suspension.
• Some vehicles may require air shocks or heavier springs to stiffen up the suspension to prevent
sagging.
• Make sure the carrier is secured on the trailer hitch mount and all loads are secured on the carrier.
Tie-down straps are sold separately.
• Secure tie-downs to the tie-down loops on the carrier. Do not secure your scooter to the platform
rails, which may cause the straps to slide or become loose.
• Make sure the ramp is properly folded and secure before transport.
• Hitch adapters may affect the weight capacity of the carrier. If using a hitch adapter, always check
its limitations before use.
• Always store the carrier in a safe place out of the reach of children.
• Improper use, storage, or installation of the carrier could result in death or serious injury.
• NOT recommended for tow-behind trailers including 5th wheel and camping trailers, motorhomes,
or RVs. Do not put the product on any kind of trailer.
• Periodically check nuts and bolts for tightness.
• Do not occupy the mobility aid while loading or unloading the carrier. Do not stand on the carrier.
• Only load the carrier on a flat, level surface.
Page 1
Advertisement
Table of Contents
Related Manuals for DiscountRamps Silver Spring WCC-500A
Summary of Contents for DiscountRamps Silver Spring WCC-500A
- Page 1 Aluminum Scooter & Wheelchair Carrier Instructions for Part #WCC-500A General Guidelines • It is the user’s responsibility to read and follow all instructions. • Keep these instructions with the product at all times and review before each use. • It is the responsibility of this product’s owner to furnish the instructions to any person that borrows or purchases the product.
- Page 2 Anti-Tilt Device Medium Support Plate Ramp Pin, Clip Reflector Support Plate Hitch Pin, Clip Small Support Plate Tools Required 8mm wrench, 10mm wrench, 13mm wrenches, 19 mm wrench, 4mm hex key, Phillips screwdriver Rev. 120219 Page 2 DiscountRamps.com 1-888-651-3431 •...
- Page 3 Assembly Step 1. Attach the support plates (E, F, G, H) to the carrier base (A) using M5x12 bolts and lock nuts (K). Do not fully tighten yet. Make sure the reflector supports are both towards the front of the carrier. Step 2.
- Page 4 Step 4. Carefully flip the carrier right-side-up. Attach the eyebolt hardware (L) at each corner for tie- down points. Tighten securely with a 10mm wrench. (4a) (4b) Step 5. Attach the ramp using M8x60 bolts and nuts (I). Tighten the bolts using 13mm wrenches. Do not overtighten;...
- Page 5 19 mm wrench. Be sure all bolts on the carrier are securely tightened, the load is properly tied down, and the ramp is properly secured before use. Rev. 120219 Page 5 DiscountRamps.com 1-888-651-3431 •...
- Page 6 Product Warranty and Liability GENERAL PRODUCT WARRANTY: Products purchased from the Authorized Dealer (original place of purchase) or Merchant (“Dealer”) will be free of defects in material and workmanship at the time of receipt, and will meet the specifications stated at the place of purchase transaction or online at the Dealer’s website, under normal use and service when correctly installed, operated and maintained.
