Nordson 3830 Series Instruction Sheet

Fan Assembly Kit
Series 3830 and 3930
Instruction Sheet 46-162
Page 1

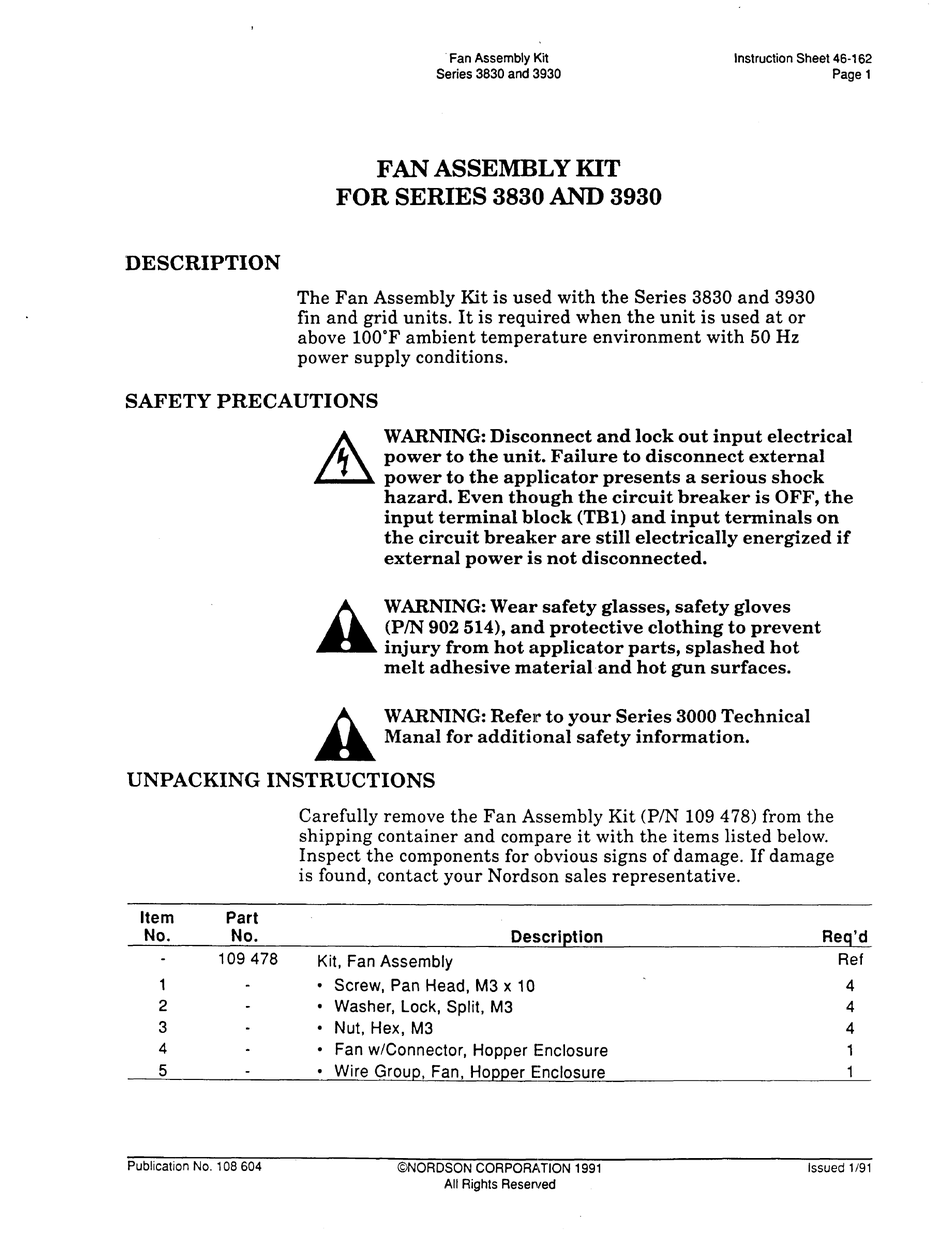

FAN ASSEMBLY KIT
FOR SERIES 3830 AND 3930
DESCRIPTION
The Fan Assembly Kit is used with the Series 3830 and 3930
fin and grid units. It is required when the unit is used at or
above 100°F ambient temperature environment with 50 Hz
power supply conditions.
SAFETY PRECAUTIONS
A
WARNING: Disconnect and lock out input electrical
'I
power to the unit. Failure to disconnect external
power to the applicator presents a serious shock
hazard. Even though the circuit breaker is OFF, the
input terminal block (TBl) and input terminals on
the circuit breaker are still electrically energized if
external power is not disconnected.
A
WARNING: Wear safety glasses, safety gloves
(P/N 902 514), anld protective clothing to prevent
injury from hot applicator parts, splashed hot
melt adhesive miaterial and hot gun surfaces.
A
WARNING: Refer to your Series 3000 Technical
Manal for additional safety information.
UNPACKING INSTRUCTIONS
Carefully remove the Fan Assembly Kit (P/N 109 478) from the
shipping container and com:pare it with the items listed below.
Inspect the components for obvious signs of damage. If damage
is found, contact your Nordson sales representative.
Item Part
No. No.
Description Req'd
109478
Kit, Fan Assembly
Ref
1
D
l
Screw, Pan Head, M3 x 10
4
2
m
0 Washer, Lock, Split, M3
4
3
s
l
Nut, Hex, M3
4
4
m
l
Fan w/Connector, Hopper Enclosure
1
5
l
Wire Group, Fan, Hopper EZnclosure
1
Publication No. 108 604
ONORDSON CORPORATION
1991
All Rights
Reserved
issued l/91
