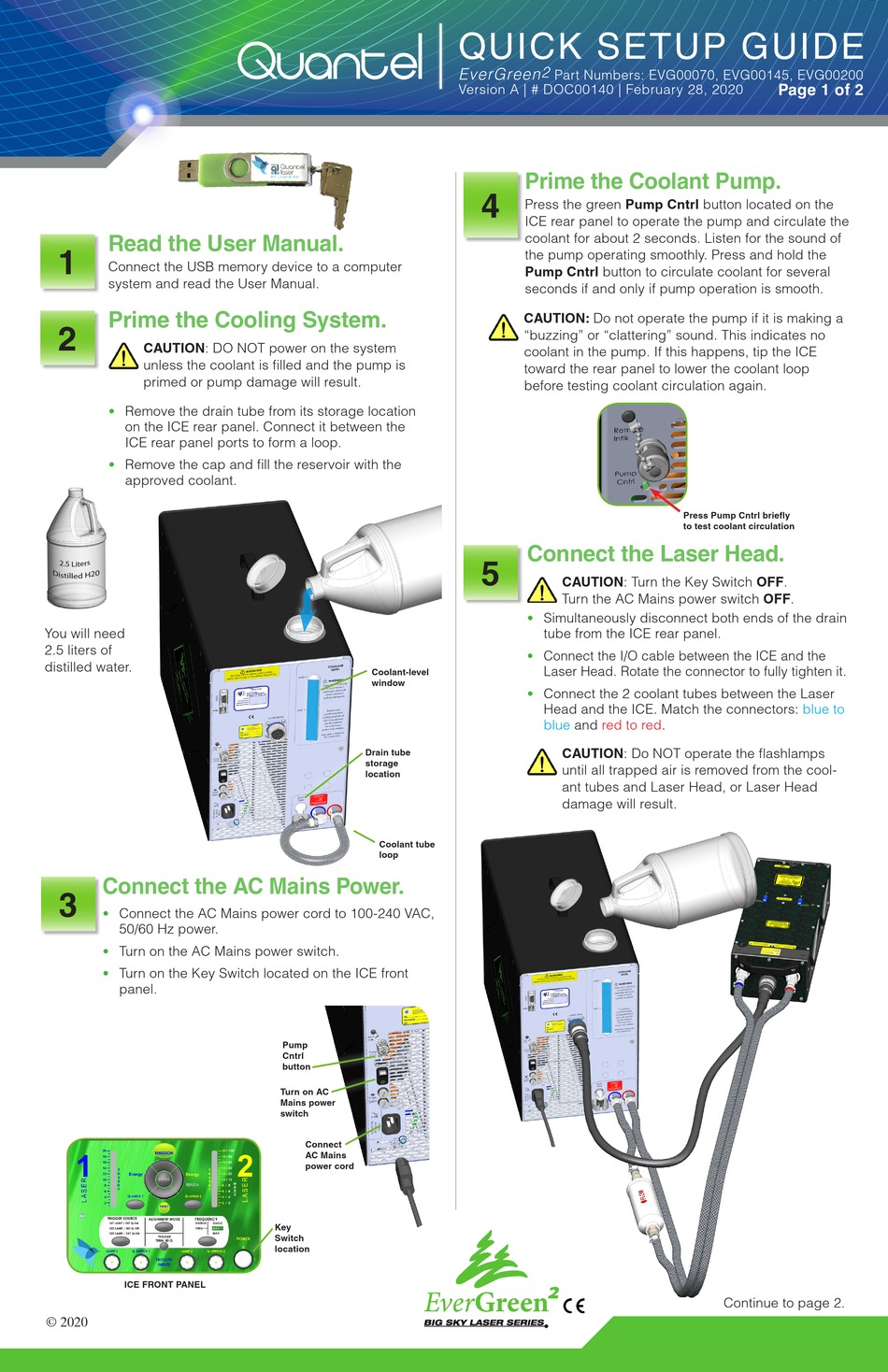

Quantel EverGreen2 Quick Setup Manual

Read the User Manual.
1
Connect the USB memory device to a computer
system and read the User Manual.
Prime the Cooling System.
2
CAUTION: DO NOT power on the system
unless the coolant is filled and the pump is
primed or pump damage will result.
• Remove the drain tube from its storage location
on the ICE rear panel. Connect it between the
ICE rear panel ports to form a loop.
•
Remove the cap and fill the reservoir with the
approved coolant.
You will need
2.5 liters of
distilled water.
Connect the AC Mains Power.
3
•
Connect the AC Mains power cord to 100-240 VAC,
50/60 Hz power.
• Turn on the AC Mains power switch.
• Turn on the Key Switch located on the ICE front
panel.
ICE FRONT PANEL
© 2020
Coolant-level
window
Drain tube
storage
location
Coolant tube
loop
Pump
Cntrl
button
Turn on AC
Mains power
switch
Connect
AC Mains
power cord
Key
Switch
location
QUICK SETUP GUIDE
2
EverGreen
Part Numbers: EVG00070, EVG00145, EVG00200
Version A | # DOC00140 | February 28, 2020
Prime the Coolant Pump.
4
Press the green Pump Cntrl button located on the
ICE rear panel to operate the pump and circulate the
coolant for about 2 seconds. Listen for the sound of
the pump operating smoothly. Press and hold the
Pump Cntrl button to circulate coolant for several
seconds if and only if pump operation is smooth.
CAUTION: Do not operate the pump if it is making a
"buzzing" or "clattering" sound. This indicates no
coolant in the pump. If this happens, tip the ICE
toward the rear panel to lower the coolant loop
before testing coolant circulation again.
Connect the Laser Head.
5
CAUTION: Turn the Key Switch OFF.
Turn the AC Mains power switch OFF.
•
Simultaneously disconnect both ends of the drain
tube from the ICE rear panel.
• Connect the I/O cable between the ICE and the
Laser Head. Rotate the connector to fully tighten it.
•
Connect the 2 coolant tubes between the Laser
Head and the ICE. Match the connectors:
blue and red to
CAUTION: Do NOT operate the flashlamps
until all trapped air is removed from the cool-
ant tubes and Laser Head, or Laser Head
damage will result.
2
Page 1 of 2
Press Pump Cntrl briefly
to test coolant circulation
blue to
red.
Continue to page 2.
