Quantel Ultra Quick Start Manual

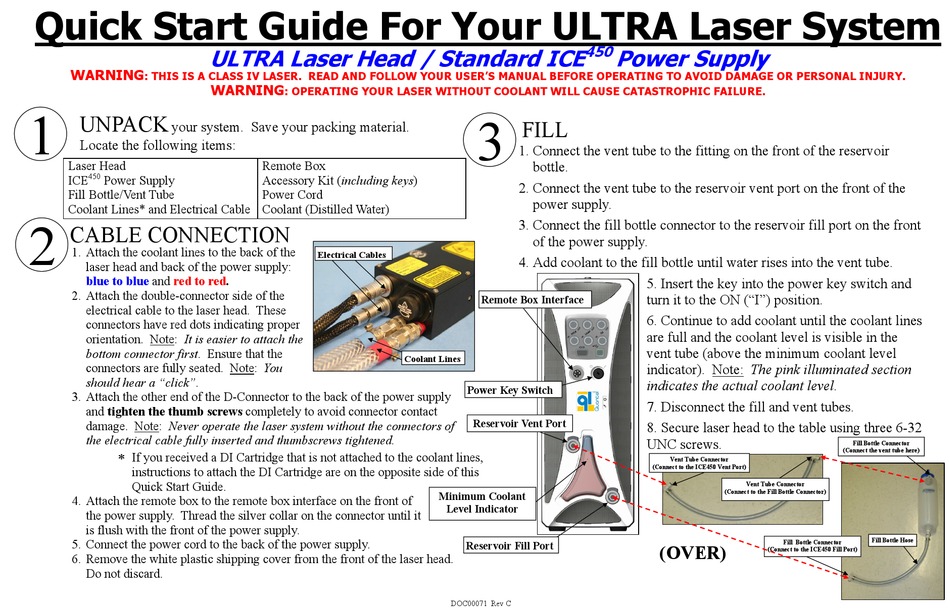

Quick Start Guide For Your ULTRA Laser System
WARNING
: THIS IS A CLASS IV LASER. READ AND FOLLOW YOUR USER'S MANUAL BEFORE OPERATING TO AVOID DAMAGE OR PERSONAL INJURY.
1

UNPACK

your system. Save your packing material.
Locate the following items:
Laser Head
450
ICE

Power Supply

Fill Bottle/Vent Tube
Coolant Lines* and Electrical Cable
2

CABLE CONNECTION

1. Attach the coolant lines to the back of the
laser head and back of the power supply:
blue to blue and red to red.
2. Attach the double-connector side of the
electrical cable to the laser head. These
connectors have red dots indicating proper
orientation. Note: It is easier to attach the
bottom connector first. Ensure that the
connectors are fully seated. Note: You
should hear a "click".
3. Attach the other end of the D-Connector to the back of the power supply
and tighten the thumb screws completely to avoid connector contact
damage. Note: Never operate the laser system without the connectors of
the electrical cable fully inserted and thumbscrews tightened.
∗
If you received a DI Cartridge that is not attached to the coolant lines,
instructions to attach the DI Cartridge are on the opposite side of this
Quick Start Guide.
4. Attach the remote box to the remote box interface on the front of
the power supply. Thread the silver collar on the connector until it
is flush with the front of the power supply.
5. Connect the power cord to the back of the power supply.
6. Remove the white plastic shipping cover from the front of the laser head.
Do not discard.
ULTRA Laser Head / Standard ICE
WARNING
: OPERATING YOUR LASER WITHOUT COOLANT WILL CAUSE CATASTROPHIC FAILURE.
Remote Box
Accessory Kit (including keys)
Power Cord
Coolant (Distilled Water)
Electrical Cables
450
3

FILL

1. Connect the vent tube to the fitting on the front of the reservoir
bottle.
2. Connect the vent tube to the reservoir vent port on the front of the
power supply.
3. Connect the fill bottle connector to the reservoir fill port on the front
of the power supply.
4. Add coolant to the fill bottle until water rises into the vent tube.
Remote Box Interface
Coolant Lines
Power Key Switch
Reservoir Vent Port
Minimum Coolant
Level Indicator
Reservoir Fill Port
DOC00071 Rev C
Power Supply
5. Insert the key into the power key switch and
turn it to the ON ("I") position.
6. Continue to add coolant until the coolant lines
are full and the coolant level is visible in the
vent tube (above the minimum coolant level
indicator). Note: The pink illuminated section
indicates the actual coolant level.
7. Disconnect the fill and vent tubes.
8. Secure laser head to the table using three 6-32
UNC screws.
Vent Tube Connector
(Connect to the ICE450 Vent Port)
Vent Tube Connector
(Connect to the Fill Bottle Connector)
Fill Bottle Connector
(OVER)
(Connect to the ICE450 Fill Port)
Fill Bottle Connector
(Connect the vent tube here)
Fill Bottle Hose
