- Page 2 Diamond Audio dealer to achieve the best possible system recommendation and installation. This will ensure a true Diamond Audio listening experience and sound you would expect from Diamond Audio products. With proper validation use a Diamond Audio Retailer for installation of your newly purchased amplifier.
-
Page 3: Features & Specifications

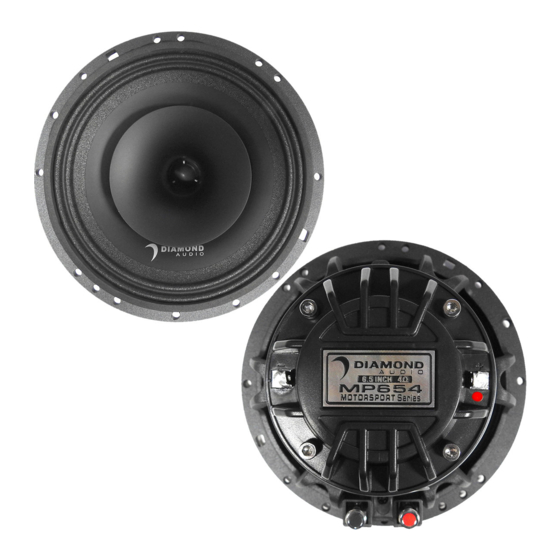

FEATURES/SPECIFICATIONS DIAMOND AUDIO PRO AUDIO COAX HORN DRIVERS The next generation of Diamomd Audio Pro Audio Mobile drivers features and specifications are on the next few pages. Makes sure to read this manual and get to know your drivers and the many applications and set up scenarios available to you. - Page 4 MP84 8” PRO Full-Range Co-Ax Horn Speaker • 200W RMS/400W MAX Power Handling • High Temp NEO Magnet structure • Heavy duty Cast Aluminum basket • 2.0 ” Single Layer High Temp Voice Coil for Woofer • 1.0” Single Layer High Temp Voice Coil for Tweeter •...
- Page 5 INSTALLATION Installing the Speakers Your new Diamond Audio MP series speakers were designed with the flexibility to be installed in multiple Locations. However, to ensure the best performance possible, it is important to isolate the front sound waves of the speaker from its rear sound waves. This is done by securely mounting the speaker to a flat surface known as a baffle.
- Page 6 ** SPECIAL NOTE** TYPICAL “BI-AMPED” SYSTEM USING Tweeter connected “out-of-phase” to be acoustically “in-Phase” PASSIVE CROSSOVERS The DIAMOND AUDIO MP PRO AUDIO COAX MSCOAX tweeter HORN comes with a special 12dB per octave 12dB per octave crossover. It is HIGHLYrecommended that this High-Pass filter...
- Page 7 Typical 4 Channel System (Using a MSHR4 - BAGGER 4 CHANNEL AUDIO WIRING KIT) UTILIZING A PAIR OF MP65 AND A PAIR OF MP694 HEAD UNIT RIGHT FRONT LEFT FRONT SPEAKER SPEAKER LOWER FAIRING SPEAKER HARNESS CROSSLINK CABLE WATERPROOF BATTERY FUSE HOLDER RIGHT REAR SPEAKER...
- Page 8 TWEETER DIAPHRAGM REPLACEMENT - DISASSEMBLY Allen Wrench THIS IS JUST IN CASE YOU BLOW YOUR TWEETER UP! FIRST THINGS FIRST: The Back cover needs to be removed. These sre 5 mm HEX machine screws. Remove them and put them in a ZipLock bag so you dont loose them.
- Page 9 TWEETER DIAPHRAGM REPLACEMENT - REASSEMBLY Gently take the “NEW” Tweeter Diaphragm Assembly Phase Plug and put the Phase plug you just removed onto it. BE CAREFUL not to damage the NEW Titanium Diaphragm assembly. Tweeter Diaphragm Assembly Tweeter Diaphragm Assembly Gently take the “NEW”...
-
Page 10: Physical Dimensions
PHYSICAL DIMENSIONS Dimension Unit MP525 MP654 MP694 MP84 Total Diameter (A) in. (mm) 5.91 (150) 6.52 (165.5) 9.33X6.57 (237X167) 8.31 (211) Mounting Diameter (B) in. (mm) 4.68 (119) 5.73 (145.5) 8.86X5.98 (225X152) 7.09 (180) Mounting Depth (C) in. (mm) 3.33 (91.6) 3.99 (101.3) 3.98 (101) 2.99 (76) -
Page 11: Warranty
Customers outside the United States should contact their local sales office to obtain information on pricing, exchange unit availability, instructions, service and warranty/non-warranty replacement or repair. Diamond Audio Technologies Service/Tech Support: 3761 SOUTH HILL STREET... - Page 12 3761 SOUTH HILL STREET LOS ANGELES, CA 90007 F 213 - 246 - 2423 F 213 - 261 - 4161 2020...
