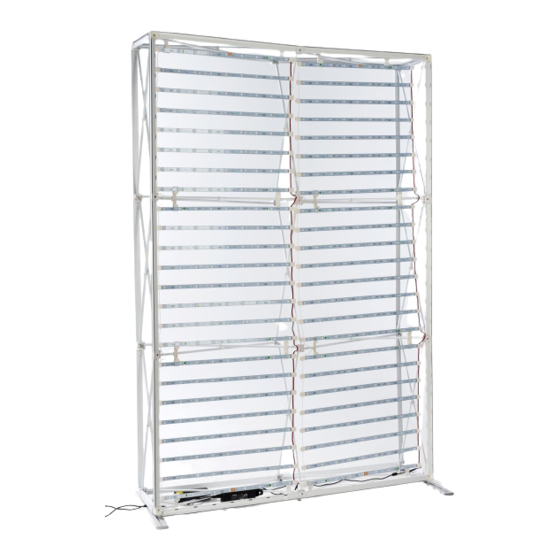

Displays2go SEG LIGHTBOX Assembly Instructions

Fabric backlit display

ASSEMBLY INSTRUCTIONS

SEG LIGHTBOX - FABRIC BACKLIT DISPLAY

IMPORTANT SAFETY INFORMATION:

This product has been designed for easy assembly and constructed for durability. Please take time to read and follow all instruc-

tions before start installing the unit. Be sure you fully understand all the steps needed to finish the

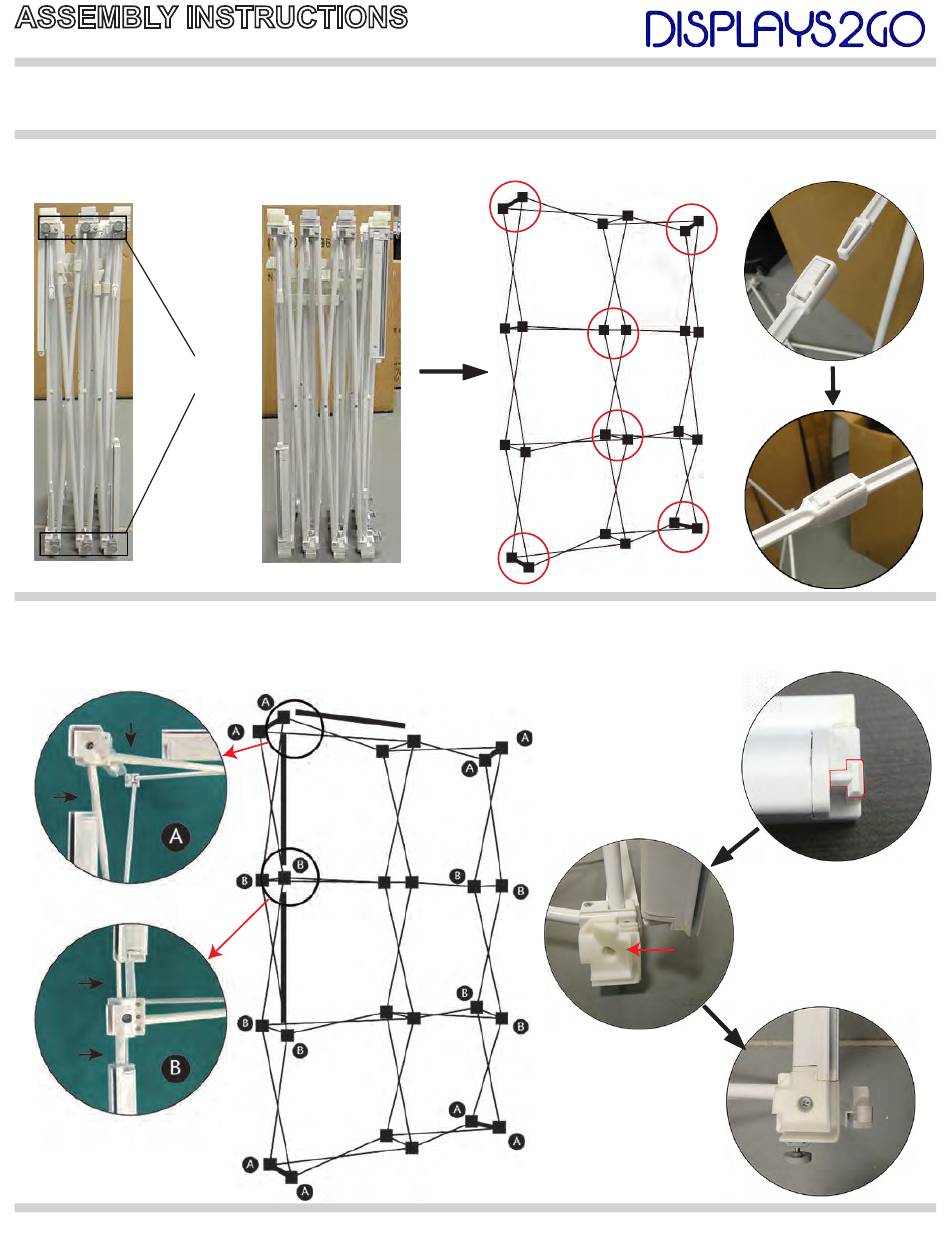

1. Position collapsed pop-up frame with thumb screw feet on the ground. Hold connectors and pull upward until it's in fully

upright position. Secure the expanded frame by locking all 6 insert buckles. Locations are shown as circled below.

THUMB SCREW

FEET

(20) channel bars to all edges of the frame. Find the "T" shaped plastic connector on both ends of the

2. Assemble

channel bar, and insert one end into the "T" slot in one connecting hub, then insert the other end. In the picture

below. "A" indicates the corner connecting hub, "B" indicates the middle connecting hub.

Ver. 09/17

installation.

1 of 3

Table of Contents

Do you have a question about the SEG LIGHTBOX and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS SEG LIGHTBOX - FABRIC BACKLIT DISPLAY IMPORTANT SAFETY INFORMATION: This product has been designed for easy assembly and constructed for durability. Please take time to read and follow all instruc- installation. tions before start installing the unit. Be sure you fully understand all the steps needed to finish the 1.
Page 2 ASSEMBLY INSTRUCTIONS SEG LIGHTBOX - FABRIC BACKLIT DISPLAY 3. Place the LED light on a clean surface, and carefully roll out the LED ladder panel. Find the “UP” and “DOWN” stickers on light bars, which go into the top and bottom of the frame respectively.
Page 3 6. Assemble the SEG fabric onto the front and back of the frame by inserting silicon edge into the slot. Be sure the fabric is fully stretched. Plug the power cord to light up the LED panel. The SEG lightbox is ready to use.
