ASSEMBLY INSTRUCTIONS
8'X10' SEG BACKWALL WITH LED LIGHT - SEGL810W
IMPORTANT SAFETY INFORMATION:
Please take time to read all instructions before start assembling the unit. Be sure you fully understand all of the
steps needed to finish the assembly. Two or more persons are required.

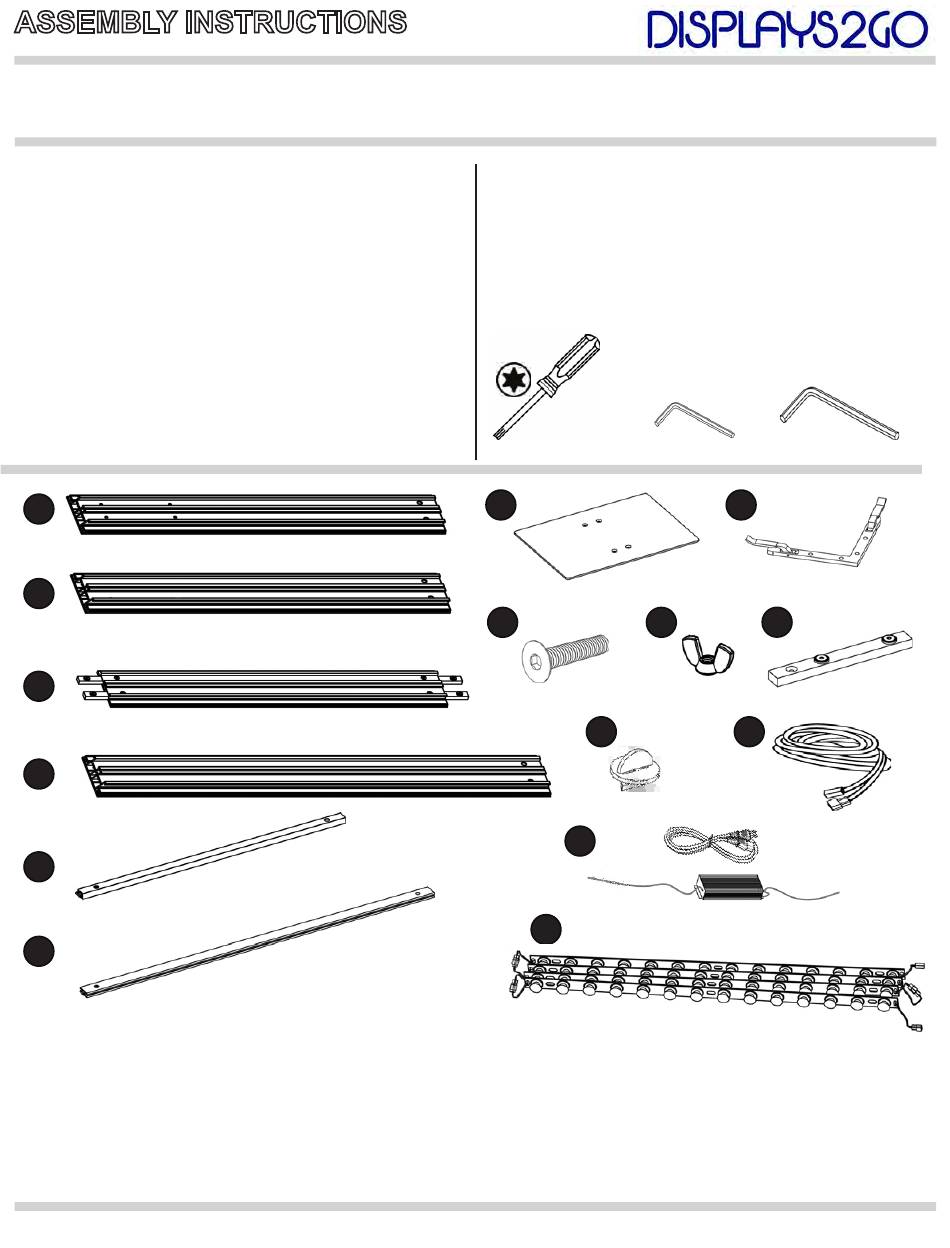

PARTS LIST
A. Bottom Panel (with holes to fit Foot Plate)
B. Top Panel
C. Middle Panel
D. Side Panel
E. Support Bar - Horizontal
F. Support Bar - Vertical
G. Foot Plate
H. Corner Connector
I. Flat Head Screw
J. Wing Nut
K. Bar Connector
A
B
C
D
E
F
NOTE:
(1) Lay out all extrution panels on a clean, non-abrasive surface and identify each part.
(2)
Make sure that you have all included parts before you begin the assembling.
(3) The SEG frame is 8' in height and 10' in width. The assembling space must be large enough to house the
entire frame.
(4) For your safety, DO NOT use ladder when assembling the SEG backwall.
(5) Every panel/bar has numbers on both ends. Assemble the frame by matching the numbers.
Ver. 05/19
L. Plastic Clip
X2
M. LED Light Cable
X2
N. Power Adapter
X2
O. LED Light Panel
X4
X4
Tools included:
X2
X2
X8
X8
X8
Torx Screwdriver
X7
G
I
L
N
O
Hex Key (M3)
Hex Key (M5)
H
J
K
M
X16
X1
X1
X2
1 of 5
Advertisement
Related Manuals for Displays2go SEGL810W
Summary of Contents for Displays2go SEGL810W
- Page 1 ASSEMBLY INSTRUCTIONS 8’X10’ SEG BACKWALL WITH LED LIGHT - SEGL810W IMPORTANT SAFETY INFORMATION: Please take time to read all instructions before start assembling the unit. Be sure you fully understand all of the steps needed to finish the assembly. Two or more persons are required.
- Page 2 ASSEMBLY INSTRUCTIONS 8’X10’ SEG BACKWALL WITH LED LIGHT - SEGL810W Step 1. Connect 2 Bottom Panels (Part A) with 1 Middle Panel (C). Remove screws from bar connectors on the middle panel. Insert bar connectors into the bottom panels, and fix the bottom panel assembly by tightening screws back to the bar connectors.
- Page 3 ASSEMBLY INSTRUCTIONS 8’X10’ SEG BACKWALL WITH LED LIGHT - SEGL810W Step 3. Connect all assembled panels with Corner Connectors (H) by matching the number on the labels. Insert Corner Connectors (H) into the channels on sides of the frame panel. Make sure the panels fit together with no gap, then tighten the insert screw with the provided Allen key.
- Page 4 ASSEMBLY INSTRUCTIONS 8’X10’ SEG BACKWALL WITH LED LIGHT - SEGL810W Step 5. Fix Foot Plates (G) to the bottom of the assembled SEG frame by using Hex Screws (I) and Wing Nuts (J). Step 6. Lay 1 LED Light Panel (O) onto the center groove in the bottom SEG panel, and connect the female end on LED panel with male end on power module.
- Page 5 Turn on the power switch at the bottom. The assembly is finished. Scan QR code to visit the product page: If you have any questions regarding our products, please visit us at www.displays2go.com or contact D2G customer service 844-221-3388. 5 of 5...
