Summary of Contents for CHERUBINI Rugiada
- Page 1 A520016 RUGIADA TX PLUVIOMETRO RADIO TX RAIN-SENSOR TX FUNK-REGENSENSOR TX PLUVIOMÈTRE RADIO TX SENSOR DE LLUVIA SENSORE PIOGGIA PER TENDE DA SOLE RAIN SENSOR FOR AWNINGS REGENSENSOR FÜR MARKISEN CAPTEUR DE PLUIE POUR STORES SENSOR DE LLUVIA PARA TOLDOS ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN...
-
Page 2: Technical Features
DECLARATION OF CONFORMITY Hereby, Cherubini S.p.A. declares that the product is in compliance with the Directive 1999/5/EC. The full text of the EU declaration of conformity is available upon request at the following website: www.cherubini.it. -
Page 3: Product Features

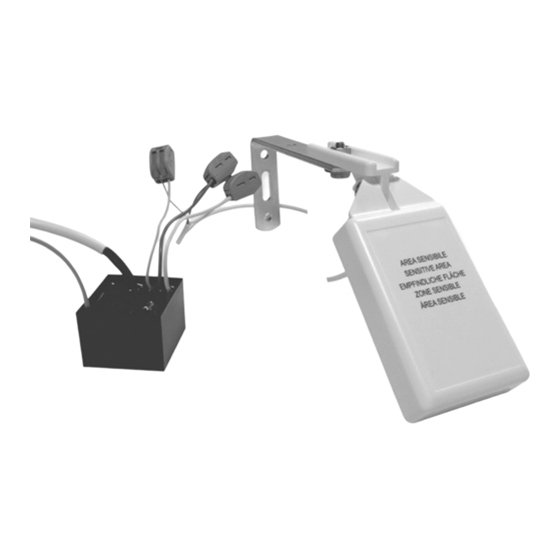

PRODUCT FEATURES The Rugiada sensor is made up of two distinct units: a sensor element, capable of detecting the presence of water on its surface and a processor board, inside of a plastic case. The processor board is capable of remotely transmitting an alarm status to the motor (or the receiving control unit), which will open or close the awning depending on how the motor or the control unit has been set. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS button SET Sensor element Power Supply 230 Vac... - Page 5 COMPATIBLE REMOTE CONTROLS LED - Skipper Skipper Skipper Skipper Skipper Skipper Display - Skipper Skipper Skipper Skipper Skipper stop Channel selector down Activating/ Deactivating the Sun sensor Check the specific Skipper instruction book Skipper GIRO GIRO Wall stop DOWN down STOP GIRO Lux GIRO P-Lux...
- Page 6 COMMAND SEQUENCES EXAMPLE Most of the command sequences have three distinct steps, at the end of which the motor indicates if the step has been concluded positively or not, by turning in different ways. This section is provided to demonstrate the motor indications. The buttons must be pressed as shown in the sequence, without taking more than 4 seconds between one step and the next.
-
Page 7: Installation
The following instructions must be complied with for proper installation of the unit. - The Rugiada sensor must be permanently connected to 230 V AC mains power. It has no cut off switch. Therefore, the installer must provide for a cut off switch when installing the system. -
Page 8: Before Commissioning
OPERATION In case of precipitation, the Rugiada sensor sends an alarm signal to the motor. Cherubini receivers are set at the factory to respond to an alarm signal with a closing command. To change this setting proceed as follows:... -
Page 9: Maintenance
TESTS AND OPERATION Once the the Rugiada sensor has been activated the sensor element is ready to detect any alarm conditions. Pressing the SET button, the unit will operate in “test” mode for the next 3 minutes, or in case of alarm, the awning will close or open and, once it has completed that action, it will be possible to immediately trigger another alarm. -
Page 10: Notes For The User
NOTES FOR THE USER - This unit should not be used by children or persons with reduced psycho-physical capacity unless supervised or instructed by an adult on its use and operation. - Inspect the system regularly for any signs of damage or wear. Do not use the unit if it is in need of repair. - Page 12 CHERUBINI S.p.A. Via Adige 55 25081 Bedizzole (BS) - Italy Tel. +39 030 6872.039 | Fax +39 030 6872.040 info@cherubini.it | www.cherubini.it CHERUBINI Iberia S.L. Avda. Unión Europea 11-H Apdo. 283 - P. I. El Castillo 03630 Sax Alicante - Spain Tel.
