- Page 1 English INSTRUCTION INSTRUCTION MANUAL MANUAL...
-
Page 2: Information For Your Safety
INFORMATION FOR YOUR SAFETY General information: The instrument meets the laser class 1 according to EN and FDA. It is classifi ed as eye - switches off or indicates ‘battery empty’ safe and can be used in any way. For safety precaution it should however not be pointed - the battery no longer functions correctly after an extended period in use. -
Page 3: Table Of Contents
TABLE OF CONTENTS INFORMATION FOR YOUR SAFETY Disposal of electronical equipment Battery disposal Important notice for USA IDENTIFICATION OF THE COMPONENTS INSERTING AND CHANGING THE BATTERY Battery charge level RANGE ESTIMATION ACCURACY DISTANCE MEASURING Scan Mode CLEANING / CAUTION TECHNICAL SPECIFICATIONS NOTES... -
Page 4: Identification Of The Components

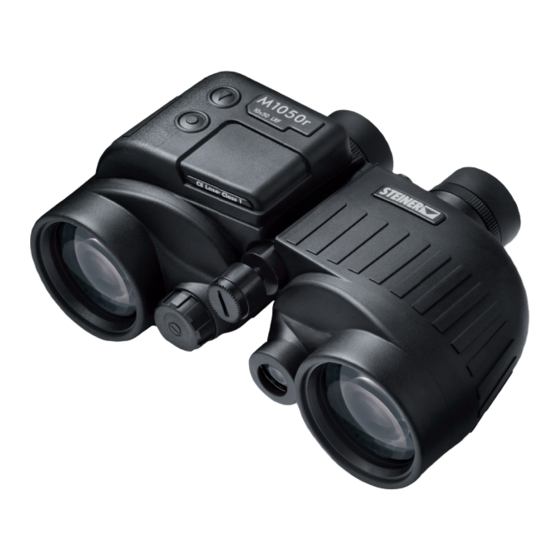

IDENTIFICATION OF THE COMPONENTS Eyepiece with rubber eyecup Diopter adjustment Power/Measure button Set button Laser transmission optics Battery compartment... -
Page 5: Inserting And Changing The Battery
INSERTING AND REPLACING THE BATTERY INSERTING AND REPLACING THE BATTERY The laser range fi nder is powered by a type 3 volt CR 123A lithium battery. 1. To insert and replace the battery, unscrew the battery cover by turning counterclockwise. 2. -
Page 6: Range Estimation Accuracy
RANGE ESTIMATION ACCURACY RANGE ESTIMATION ACCURACY The STEINER Military 10x50 LRF Laser Rangefi nder binocular With sunshine and good visibility, the ranges and accuracies has a measuring accuracy of up to ±1 meter/yard. The maxi- are as follows: mum range is achieved with highly refl ective target objects Measuring range 20 m / 22 yds up to 1500 m / 1600 yds ±1 m / yd up to 350 m / 380 yds... -
Page 7: Distance Measuring
DISTANCE MEASURING BUTTON FOR DISTANCE MEASURING To measure the distance to an object, you must lock onto it pre- cisely. To do this, activate the target mark by pressing the button for distance measuring once. Release the button to start the measurement and the estimated range is shown on the display. -
Page 8: Scan Mode
SCAN MODE The range can be displayed either in meters or in yards, as The STEINER Military 10x50 Laser rangefi nder binocular can desired. After pressing the button for distance measuring also be used to measure in constant operation (scan mode). -
Page 9: Cleaning / Caution
CLEANING / CAUTION CLEANING CAUTION! Blow away any dust or debris on the lenses. When using the binoculars, never point directly at the sun. The heat generated by the focused rays of the sun may be To remove dirt or fi ngerprints, clean with cleaning cloth very harmful and might cause serious damage to your eyes by rubbing in a circular motion. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS General Specification* Weight (approx.) Magnification 10-fold Binocular 1.270 g Entrance pupil 50 mm Carrying strap Exit pupil 5.00 mm Objective caps 42 g Eye relief 15.8 mm Eyepiece cover 17 g Twilight factor 22.4 Dimensions (approx.)* Luminosity 25.0 Height 137 mm Field of view at 1,000 m... -
Page 11: Notes
NOTES... - Page 12 STEINER-OPTIK GmbH Dr.-Hans-Frisch-Str. 9 95448 Bayreuth GERMANY Phone: +49 921 7879-0 military@steiner.de www.steiner-defense.com...
