- Page 1 INSTRUCTION MANUAL STEINER M830r LRF Laser Rangefinder with Reticle MILITARY RUGGEDNESS AND PRECISION...
-
Page 2: Table Of Contents
CONTENTS Contents: Information for your safety ............. 3 Disposal of electronical equipment ..........Battery disposal ................Important notice for USA ..............Identification of the components ........... 4 Inserting and replacing the battery ..........5 Range estimation accuracy ............6 Distance measuring ................. 7 Use of reticle .................. -
Page 3: Information For Your Safety
INFORMATION FOR YOUR SAFETY General information: The instrument meets the laser class 1 according to EN and FDA. It is classified as eye safe and can be used in any way. For safety precaution it should however not be pointed directly at people. User information for the disposal of electrical and electronic equipment (private households): This symbol on products and/or accompanying documents indicates that used electrical and electronic products are not to be mixed with ordinary household waste. -
Page 4: Identification Of The Components

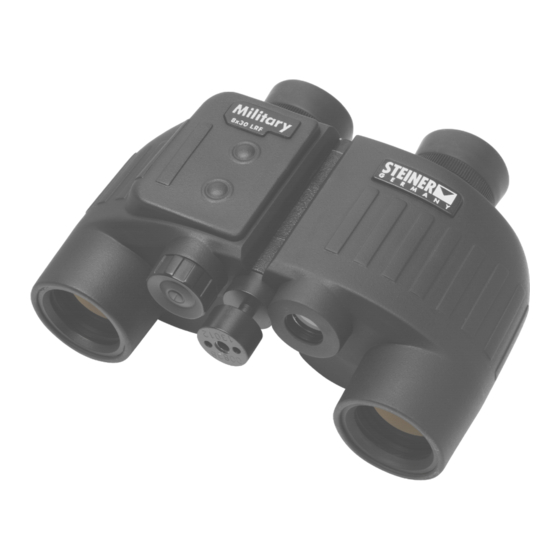

IDENTIFICATION OF THE COMPONENTS Eyepiece with rubber eyecup, left Set button Eyepiece with rubber eyecup, right Battery compartment Diopter adjustment, left Laser transmission optics Diopter adjustment, right Tripod Adapter Screw Button for distance measuring... -
Page 5: Inserting And Replacing The Battery
INSERING AND REPLACING THE BATTERY Inserting and replacing the battery The laser range finder is powered by a type 3 volt CR 2 lithium battery. 1. To insert and replace the battery, unscrew the battery cover (5) by turning anticlockwise. 2. -
Page 6: Range Estimation Accuracy
RANGE ESTIMATION ACCURACY The STEINER M830r LRF Laser Rangefinder binocular has a measuring accuracy of up to ±1 meter/yard. The maximum range is achieved with highly reflective target objects and visibility of 10 km. The metering range is affected by the following factors:... -
Page 7: Distance Measuring
DISTANCE MEASURING Button for distance measuring (3) To measure the distance to an object, you must lock onto it precisely. To do this, activate the target mark by pressing the button for distance measuring (3) for approx. 3 sec. Release the button to start the measurement and the estimated range is shown on the display. - Page 8 Scan mode The STEINER M830r LRF Laser rangefinder binocular can also be used to measure in constant operation (scan mode). The scan mode is particularly helpful for measuring small or moving targets. If the button for measuring distance (3) is pressed for longer than approx. 3 seconds, the binocular switches to scan mode and then takes measurements continuously.
-
Page 9: Use Of Reticle
USE OF RETICLE The right side of the binocular includes a horizontal and vertical scale reticle graduated in mil increment markings. In determing range, if an object fills on 10 mil unit marking on the horizontal reticle scale and is known to be 10 meters wide, the object is 1.000 meters away. - Page 10 CLEANING CAUTION Cleaning Blow away any dust or debris on the lenses. To remove dirt or fingerprints, clean with cleaning cloth by rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage.
-
Page 11: Technical Data
TECHNICAL DATA General Specification: Weight (approx.): Binocular ........800 g Magnification ........8 - fold Carrying strap ......... 60 g Entrance pupil ........ 30 mm Objective caps ........ 42 g Exit pupil ........3,75 mm Eyepiece cover ....... 16 g Eye relief ........ -
Page 12: Contact
CONTACT STEINER-OPTIK GmbH Dr.-Hans-Frisch-Str. 9 D-95448 Bayreuth Germany T.: +49-921-7879-0 F.: +49-921-7879-88 military@steiner.de www.steiner-defense.com MILITARY RUGGEDNESS AND PRECISION...
