Sussex SCALA Installation Manual

I N ST ALLAT ION GUIDE
S CALA
WALL BATH/ BAS I N MI XE R
OUTLE T SY ST EM : DR ESS KIT
Tapware is to be installed by a Licensed Plumber in
accordance with AS/NZS 3500:2003
Water pressure is not to exceed 750 Kpa
Recommended working water pressure 300 - 500 Kpa.
Maximum water temperature is 65 deg.C.

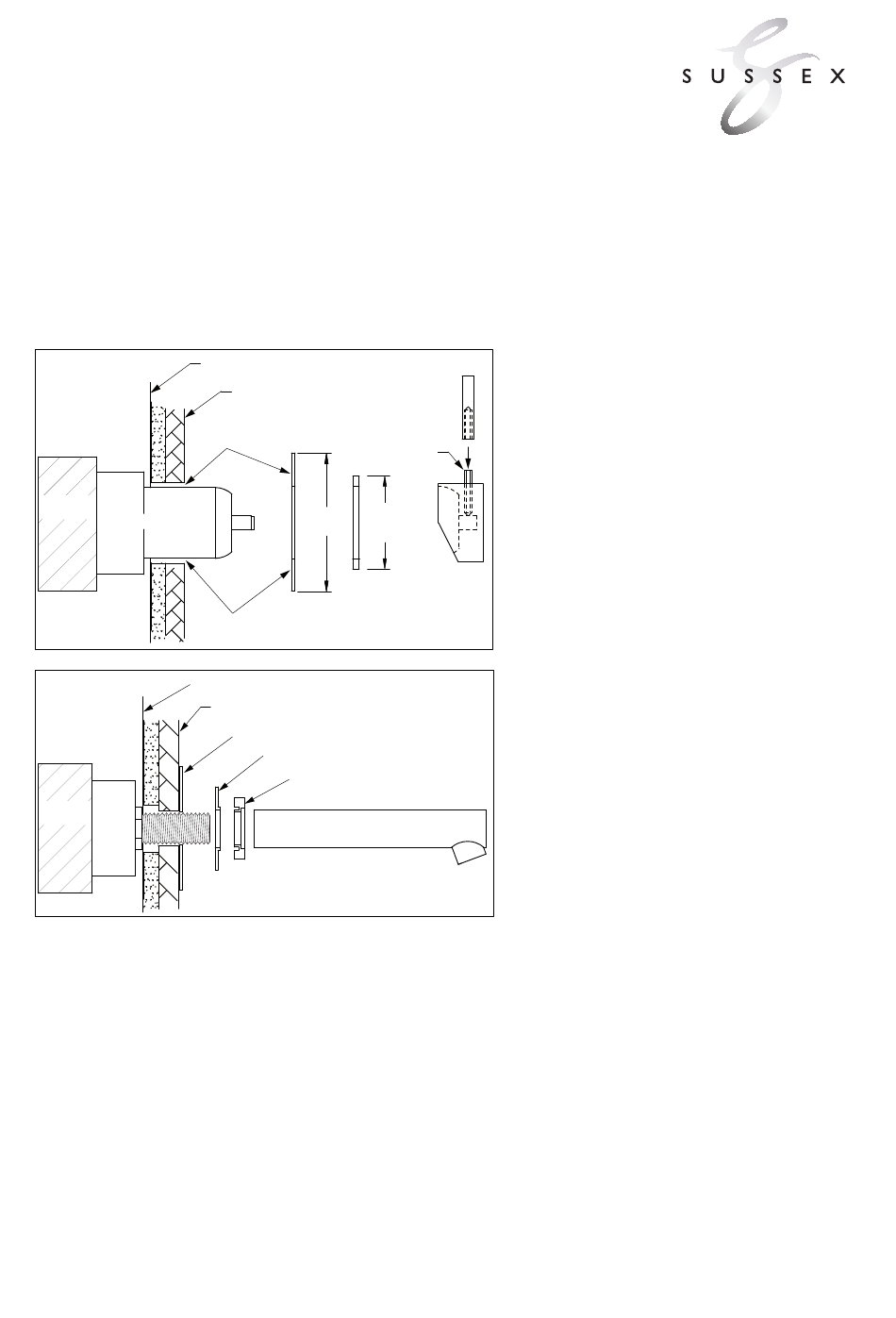

Apply Silicone
NOGGIN
Masterfit
Apply Silicone
Stud Face
NOGGIN
Masterfit
To complete installation, operate the Mixer(s) checking the flow of both hot and cold water from the Outlet.
Check all fittings and fixtures for water leaks
Stud Face
Finished
Wall Surface
56mm
80 mm
Dress
B/Plate
Ring
Finished
Wall Surface
Backplate
Dress Ring
Dress Flange
Bath Outlet
MIXER DRESS KIT
- Remove Mixer protective cover.
Handle
- Using silicone, seal the wall surface around
Pin
the Mixer and Outlet threads.
- Apply a small amount of silicone to the rear
Set
Screw
of the backplate prior to mounting onto the wall.
- After Backplate has been mounted, fit the
Mixer Dress Ring.
- Fit the Handle Body onto the Mixer Cartridge
Lever and ensure full engagement.
- Secure the Handle Body by tightening the
Handle
Set screw using the Allen Key provided
Body
(tighten well).
- Attach the Handle Pin.
NOTE:
adhesive to the thread of the Handle Pin to
prevent the Pin from becoming loose.
OUTLET FIT OFF
- Apply sealing tape (Teflon) to male thread.
- Place Dress Ring and Dress Flange over prepared
male thread.
- Fit and align the Outlet.
Apply a small amount of silicone or
