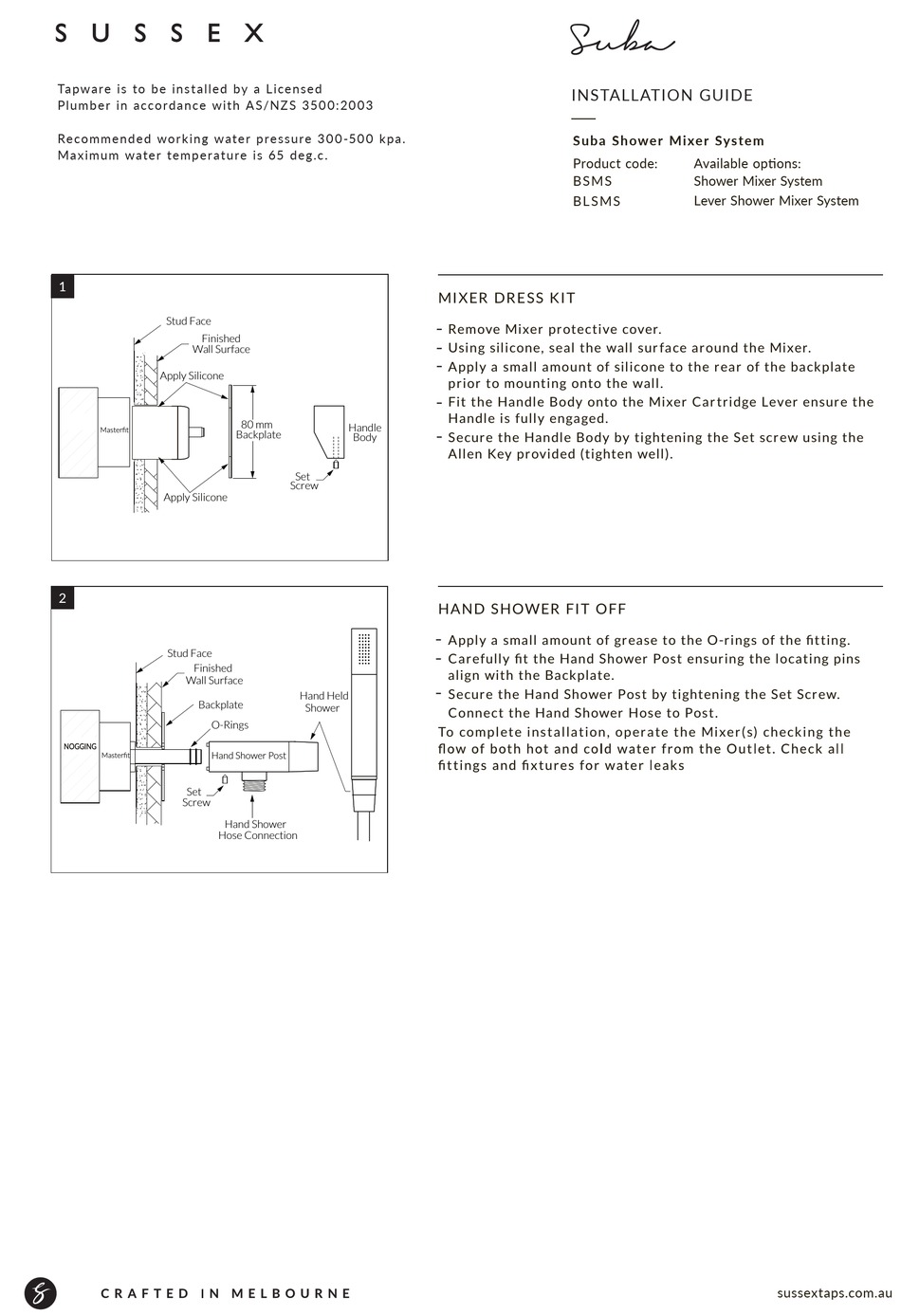

Sussex Suba Series Installation Manual

Tapware is to b e ins t alle d by a L icense d
Plumb er in accordance wit h A S/NZ S 350 0 :20 0 3
Re commen de d wor k ing water p re ssure 3 0 0 -50 0 k pa .
Ma ximum water temp er ature is 65 deg.c .
1
Stud Face
Finished
Wall Surface
Apply Silicone
Masterfit
Apply Silicone
2
Stud Face
Finished
Wall Surface
Backplate
O-Rings
NOGGING
Hand Shower Post
Masterfit
Set
Screw
Hand Shower
Hose Connection
80 mm
Handle
Backplate
Body
Set
Screw
Hand Held
Shower
Suba
INSTALLATION GUIDE
Suba Shower Mixer Sys tem
Product code:
BSMS
BL SMS
MI XER DR E SS K I T
-
Remove Mixer pr otective cover.
-
Using sil icone, seal the wall sur face ar ound the Mixer.
-
Apply a small amount of sil icone to the r ear of the backplate
pr ior to mount ing onto the wall.
-
Fit t he Handle Body onto the Mixer C ar tr idge Lever ensur e the
Handle is fully engaged.
-
Secur e the Handle Body by tightening the Set scr ew using the
Allen Key pr ovided (tighten well).
HAND SHOWER FI T OFF
-
Apply a small amount of gr ease to the O-r ings of the fit ting.
-
C ar efully fit the Hand Shower Post ensur ing the locating pins
align with the Backplate.
-
Secur e the Hand Shower Post by tightening the Set Scr ew.
Connect the Hand Shower Hose to Post .
To compl ete i ns t a l l a t ion, oper ate t he Mi xer ( s) check i ng t he
Available options:
Shower Mixer System
Lever Shower Mixer System
