Altronix TROVE T3MK75F16V Installation Manual page 8

2.00" (50.8mm)
1.25" (31.8mm)
1.25" (31.8mm)
G
G
1.25" (31.8mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IITrove3M3V Kit Series
- 8 -

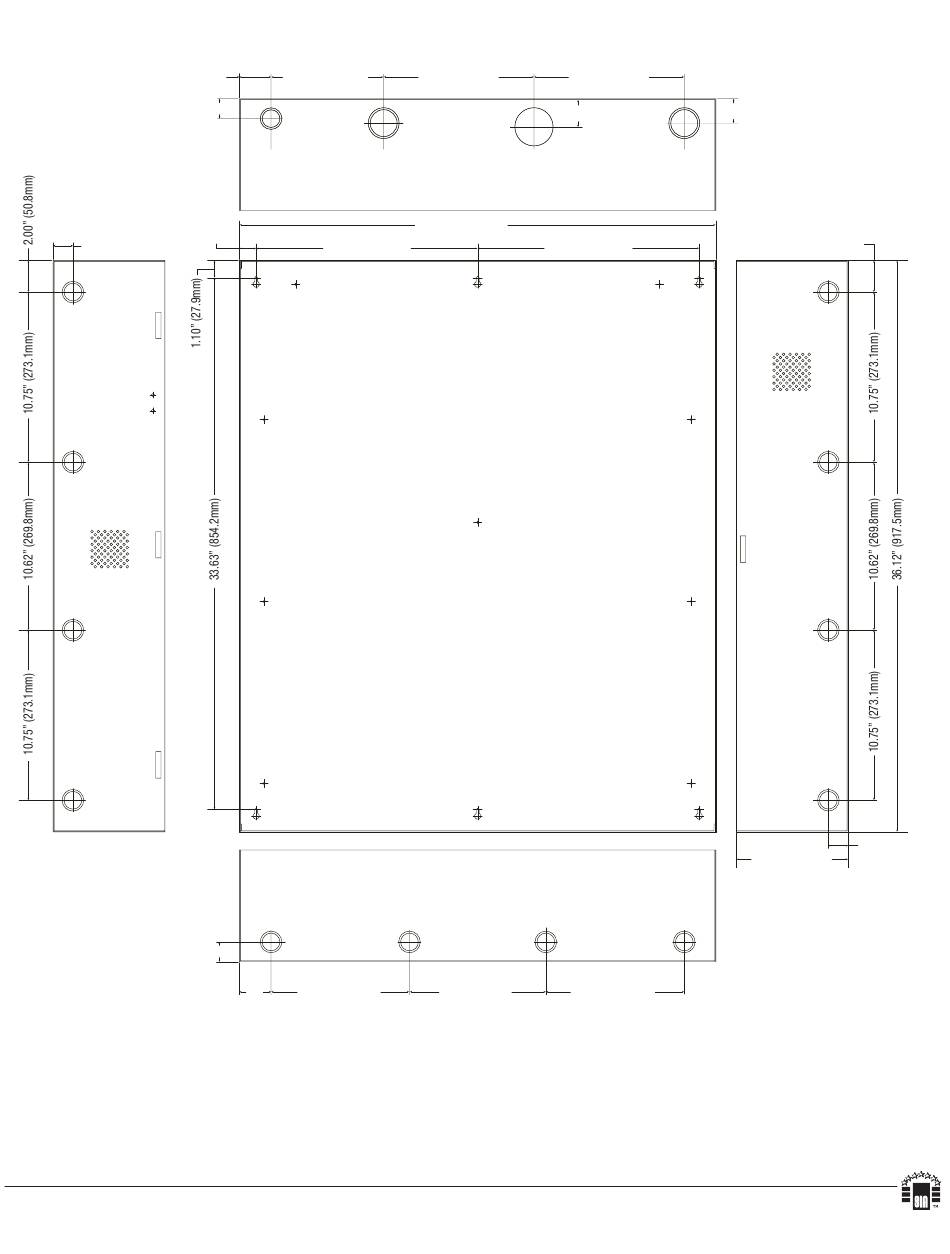

Trove3 Enclosure Dimensions (H x W x D approximate):
36.12" x 30.125" x 7.06" (917.5mm x 768.1mm x 179.3mm)
7.12" (222.3mm)
1.07"
(27.2mm)
14.01" (355.9mm)
8.75" (222.3mm)
2"
(50.8mm)
9.5" (241.3mm) 9.5" (241.3mm)
1.78" (45.2mm)
30.12" (768.1mm)
14.01" (355.9mm)
8.62" (219mm) 8.75" (222.3mm)
C03T
1.55" (39.4mm)
2" (50.8mm)
1.25" (31.8mm)
7.06" (179.3mm)
T3MKV Kits
