T3MK77F16V and T3MK77F16DV: Configuration of Mercury Boards on TM3:
1. Fasten snap on spacers onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 3, pg. 4).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 3a, pg. 4).
3. Mount backplane to enclosure with hardware.
Mercury Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
EP1501, MR51e
MR52
Fig. 3
Rocker Switch
Altronix
eFlow104NBV
Altronix
eFlow104NBV
Altronix
ACM8(CB)
Altronix
ACM8(CB)
Altronix PD8UL(CB)
Altronix PD8UL(CB)
- 4 -
Access Controller Position Chart for the Following Models:
A
A
A
A
A
B
A
B
A
C
D
A
Pem Mounting
A
B
C
D

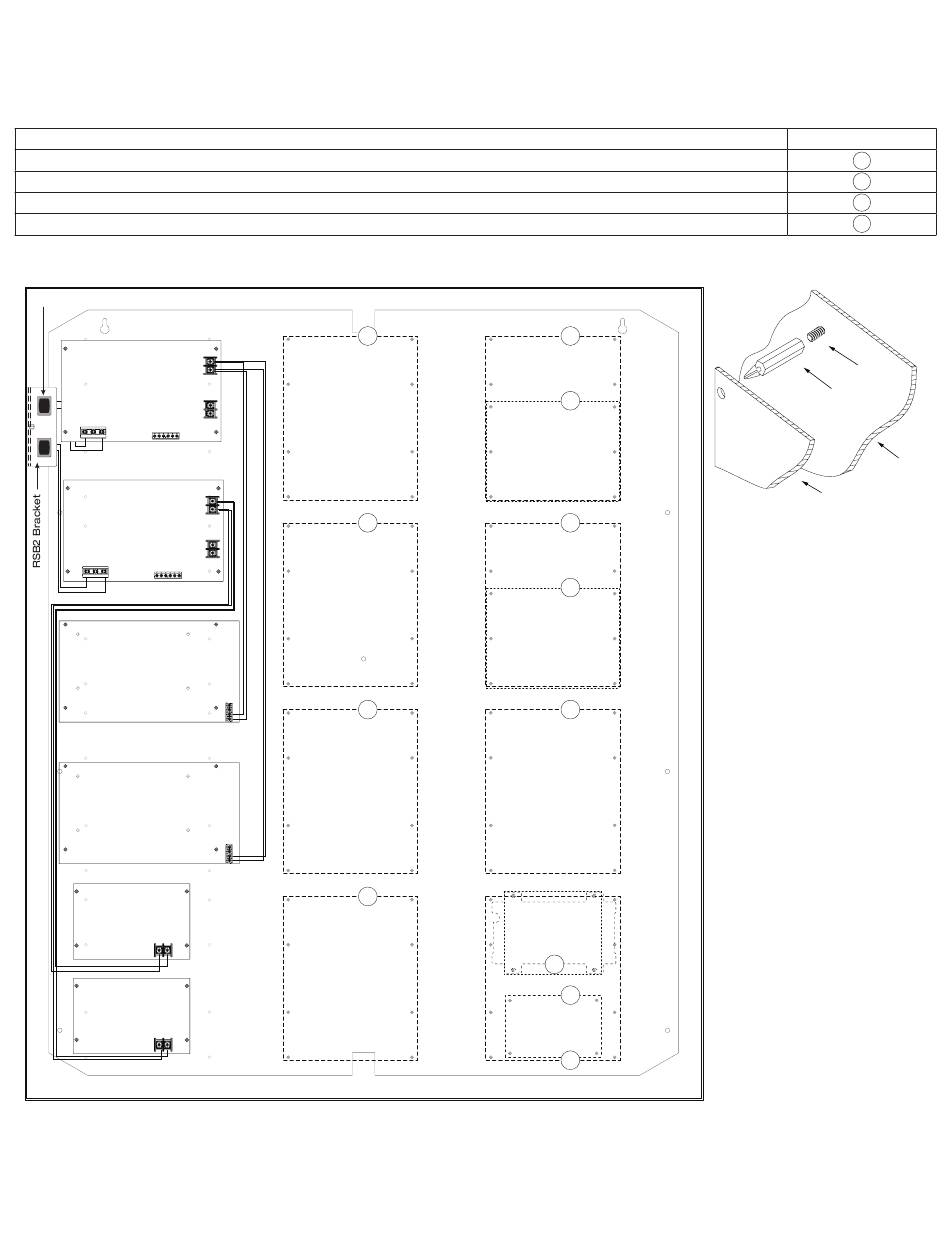

Fig. 3a
Pem
Snap On
Spacer
Backplane
Mercury Board
T3MKV Kits
