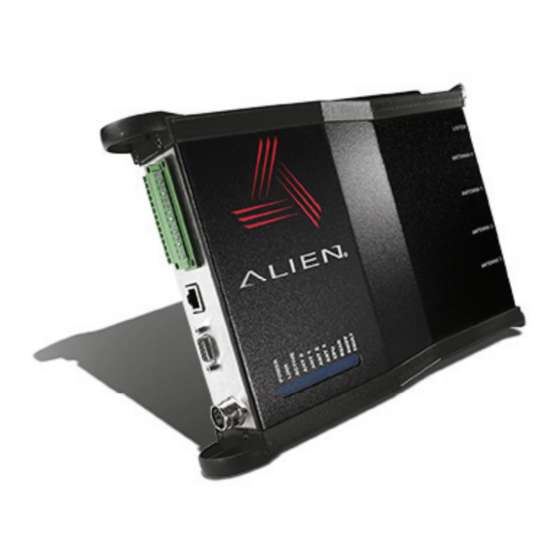

Are experienced in software development and/or hardware systems integration RFID Reader Overview The Alien ALR-8800 RFID reader is designed to read and program EPC Class 1 Generation 2 tags (see below) and issue event reports to a host computer ALR-8800 H...
Documentation CD-ROM Alien RFID Gateway Application EPC Class 1 UHF RFID Tags The Alien ALR-8800 RFID reader is designed to read and program EPC Class 1 Generation 2 tags (see below) and issue event reports to a host computer system.
0°C to +50°C (+32 °F to +122°F) LED Indicators Power, Link, Active, Ant 0-3, CPU, Read, Sniff, Fault (red) Software Support APIs, sample code, executable demo app (Alien Gateway) Compliance Certifications ETSI EN 302 208 ETSI EN 300 220 RFID Reader External Circular Polarized Antenna...
Figure 1 - Outline Drawing of the ALR-8800 I/O Port Terminal Interface The ALR-8800 I/O port provides four digital inputs and eight digital outputs, optically isolated from the reader circuitry. Opto-isolators have two basic elements: a light source (usually a light emitting diode) and a photo-sensitive detector.
NTRODUCTION HAPTER ROTECTING THE NPUT CIRCUIT If an input voltage greater than 5 Volts is being applied to the reader’s input, then a series current limiting resistor is required to protect the internal input circuit. The following chart may be used to determine an appropriate ¼ Watt resistor value to be placed in series between the SOURCE of the photo electric sensor and the input to the reader: 820 Ω...
) – L ONNECTOR EMALE OOKING AT EADER System Architecture Host Digital Antenna Communication Control Receiver Switch Interface Circuitry RF Source Modulator Module Figure 4 - System Architecture for the ALR-8800 Reader ALR-8800 H ARDWARE ETUP UIDE #8102052-000 R ONTROL...
The RFID Reader Developer's Kit includes the following additional items: Two (2) circular antennas with 6 meter coaxial cables Software APIs and example code An assortment of Class 1 UHF tags Carrying Case Figure 5 - ALR-8800 Developer's Kit ALR-8800 H ARDWARE ETUP UIDE...
Figure 6 - ALR-8800 Reader Connections Diagnostic LEDs The ALR-8800 includes diagnostic LEDs on the face of the reader to provide easy and convenient external indication for various operating conditions: POWER (green) - indicates power is applied to the reader LINK (green) –...
EADER ARDWARE NSTALLATION AND PERATION Figure 7 – ALR-8800 Reader Diagnostic LEDs Antenna Panel The antenna panel (opposite the reader’s I/O panel) contains four coax antenna connector ports as shown below. These are reverse-polarity TNC connectors. Also on this panel is the listen antenna port required for European compliance.
EADER ARDWARE NSTALLATION AND PERATION HAPTER System Assembly and Bench Test Assembling the RFID Reader system is easy. We recommend you set up the system and verify its operation in a bench test configuration (shown below) before installing it in a production setting. Figure 9 - Typical Bench Test Setup Bench Test Configuration 1.
Page 17
Finger-tighten the securing ring onto the connector. The ALR-8800 power supply has a safety feature that turns the power supply off in the event that it detects an abnormal AC line condition. When this happens, the green LED on the power supply brick will not be lit.
Page 18
--------------------------------------------- Once the reader boots and you see the "Boot>Ready!" prompt, pressing return will bring up the "Alien>" prompt. 10. Ensure the PC has compatible network settings. In order for you to be able to connect to the reader over TCP/IP, the host PC must be on the same subnet as the reader.
1. Access an operational mode suitable for bench testing. Select a mode that will allow multiple consecutive reads of a single tag, such as Global Scroll if using the Alien Gateway software. Refer to the applicable software application user guide for specific instructions.
NOTE: To maintain compliance with R&TTE regulations, use only antennas and cables supplied with the unit or by Alien Technology for use with the ALR-8800. ALR-8880 Hardware Setup Guide...
Page 21
PC. Configure your terminal software as described previously in the Bench Test Configuration topic. 9. You are now ready to use the reader. If using the Alien Gateway software, please refer to the Demonstration Software Guide included on your CD.
