Axiom KPTAX1012V Quick Start Manual

SUPPLIED
MATERIALS:
1x KPTAX1012V
1x PLG714 14mm
straight shackle

SPARE PARTS:

94SPI8577O 8x63 mm
Locking Pin
OPTIONAL
ACCESSORY:
AXFEETKIT Kit of 6pcs
BOARDACF01 M10 foot
for stacked installation

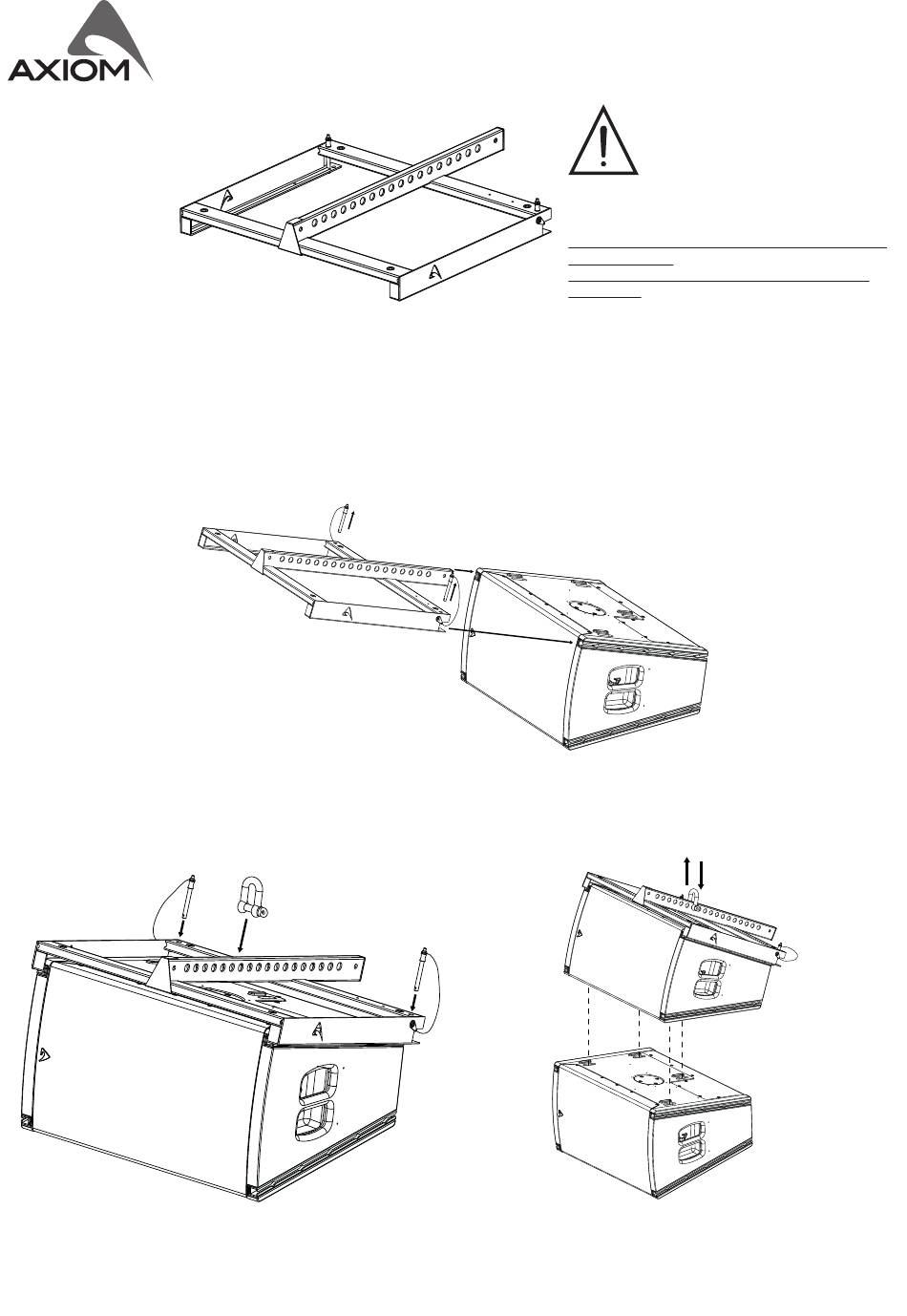

ASSEMBLING INSTRUCTIONS

Follow the sequence below to assemble up to four AX1012 units into a vertical array. The first step before lifting up the system is to assemble the
fly bar to the first box. Be careful to insert properly all the bars and their locking pins, with the shackle in the right hole as specified by the aiming
software. When lifting and releasing the system, always proceed slowly and gradually step by step, being careful to correctly assemble all the
rigging hardware and to avoid endangering yourself and your hands from being crushed
The KPTAX1012V fly bar can be used also for down firing applications and for stacked installations (optional BOARDACF01 are needed).
1) Remove the pins at the end of the flying bar and insert the flying bar into the rails of the first box.
2) Put back in place the pins in their hole, making sure that they are
inserted correctly. Fix the shackle in the chosen hole and link the
AX1012 VERTICAL ARRAY FLY BAR
lifting system.
KPTAX1012V
3) Lift the first box, place the second box on the floor just
underneath the first one. Let down slowly the first box over
the second one, aligning the bumpers and the slots of the two
loudspeakers. Note: a proper wedge placed between the cabinet to

LOAD LIMITS and WARNINGS

Up to four AX1012 cabinets are
allowed to be suspended from a single
KPTAX1012V fly bar.
For stacked installation on floor do not
exceed three cabinets for each KPTAX1012V fly bar.
Use always the KPTAX1012V fly bar with KPTAX1012
coupling bars to the sides of the array.
Never use KPTAX1012V for suspending an AX1012
horizontal array.
See AX1012 User's Manual for complete rigging
instructions and all the details about the use of
KPTAX1012V.
The MAXIMUM LOAD CAPACITY of KPTAX1012V is 595
kg (1311.7 lbs.) with balanced load.
be linked and the floor can be useful.
Manufactured by PROEL
ITALY
FI-0161-01
