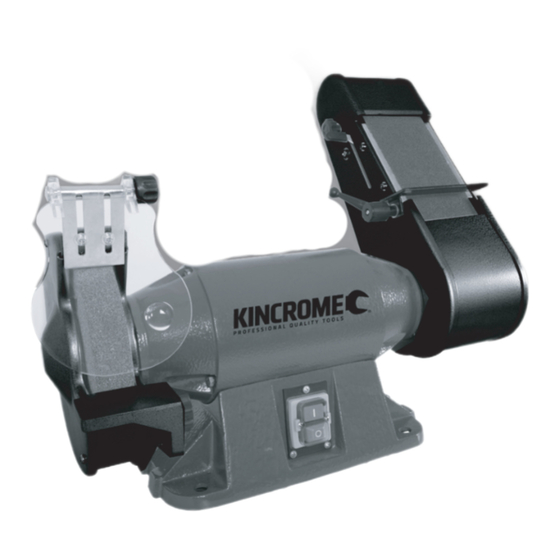

- Page 1 INDUSTRIAL GRINDER/ LINISHER 900W INDUCTION MOTOR GRIND 200MM 100MM PERSPEX GRINDING LINISHING SHIELD SAND WHEEL BELT 900W INDUCTION MOTOR GRIND PERSPEX SHIELD SAND KP15210 DEC 18...
- Page 2 15. Linisher Tool Rest Lever 16. Linisher Belt Tensioner Lever 17. Linisher Belt Tracking Knob 18. Debris Output Port Model No: ....................KP15201 Power: .......................900W (S2:30min) Motor Type: ....................Induction Rated Speed: .....................2950RPM Grinding Wheel: ..................200mm x 32mm x 32mm 36# Vo:30m/s Grinding Wheel Bushes: ................
- Page 3 INDUSTRIAL GRINDER/LINISHER Instruction Manual Images FIG 1. FIG 2. FIG 3. FIG 4. FIG 5. FIG 6. FIG 7. FIG 8. FIG 9. FIG 10. FIG 11. FIG 12. FIG 13. FIG 14. FIG 15. FIG 16. FIG 17. FIG 18. FIG 19.
- Page 4 INDUSTRIAL GRINDER/LINISHER General Power Tools Safety Warnings Save all warnings and instructions for future reference. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Page 5 INDUSTRIAL GRINDER/LINISHER g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 6 INDUSTRIAL GRINDER/LINISHER 4) Risk of Electric Shock Never touch the mains plug and the socket with wet hands. Do not pull the plug from the socket by pulling on the power cable. Check the power cord and mains plug for damage before every use. To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max.
- Page 7 INDUSTRIAL GRINDER/LINISHER Fitting the Safety Eye Shield (11) (Fig. 7 - Fig 9) Position the Safety Eye Shield (11) between the vertical braces at the top of the Safety Eye Shield Bracket (12) (Fig.7). Insert the long bolt through the Safety Eye Shield (11), all the way through the Safety Eye Shield Bracket (11) until the square shank of the bolt rests against the Safety Eye Shield (11).
- Page 8 INDUSTRIAL GRINDER/LINISHER Grinding Place the workpiece onto the Grinding Wheel Tool Rest (8). Slowly guide the workpiece towards the Grinding Wheel (9), ensuring that the workpiece is at the desired angle when it makes contact contact with the Grinding Wheel (9). Note: Exert only moderate pressure on the workpiece so that it can be machined at the Grinder/Linishers constant speed.
- Page 9 INDUSTRIAL GRINDER/LINISHER MAINTENANCE Changing the Grinding Wheel (9) Remove the three and Phillips head bolts and nuts securing the Grinder Wheel Cover (10) using an 8mm spanner and Phillips head screwdriver (not supplied). Remove the Grinder Wheel Cover (10). Remove the Flange Nut from the Spindle by rotating clockwise a 24mm spanner (not supplied). Remove the Outer Flange, the Packing Piece/Blotter Label Card and the Grinding Wheel (9) from the Spindle.
- Page 10 Kincrome Customer Service on 1300 657 528 for assistance. Spare Parts For a full list of available spare parts for this item visit the Kincrome website www.kincrome.com.au or alternatively contact Kincrome Customer Service on 1300 657 528 for assistance.
- Page 11 For further details please visit www.kincrome.com.au or call us. Due to minor changes in design or manufacture, the product you purchase may sometimes...
- Page 12 www.kincrome.com.au...
