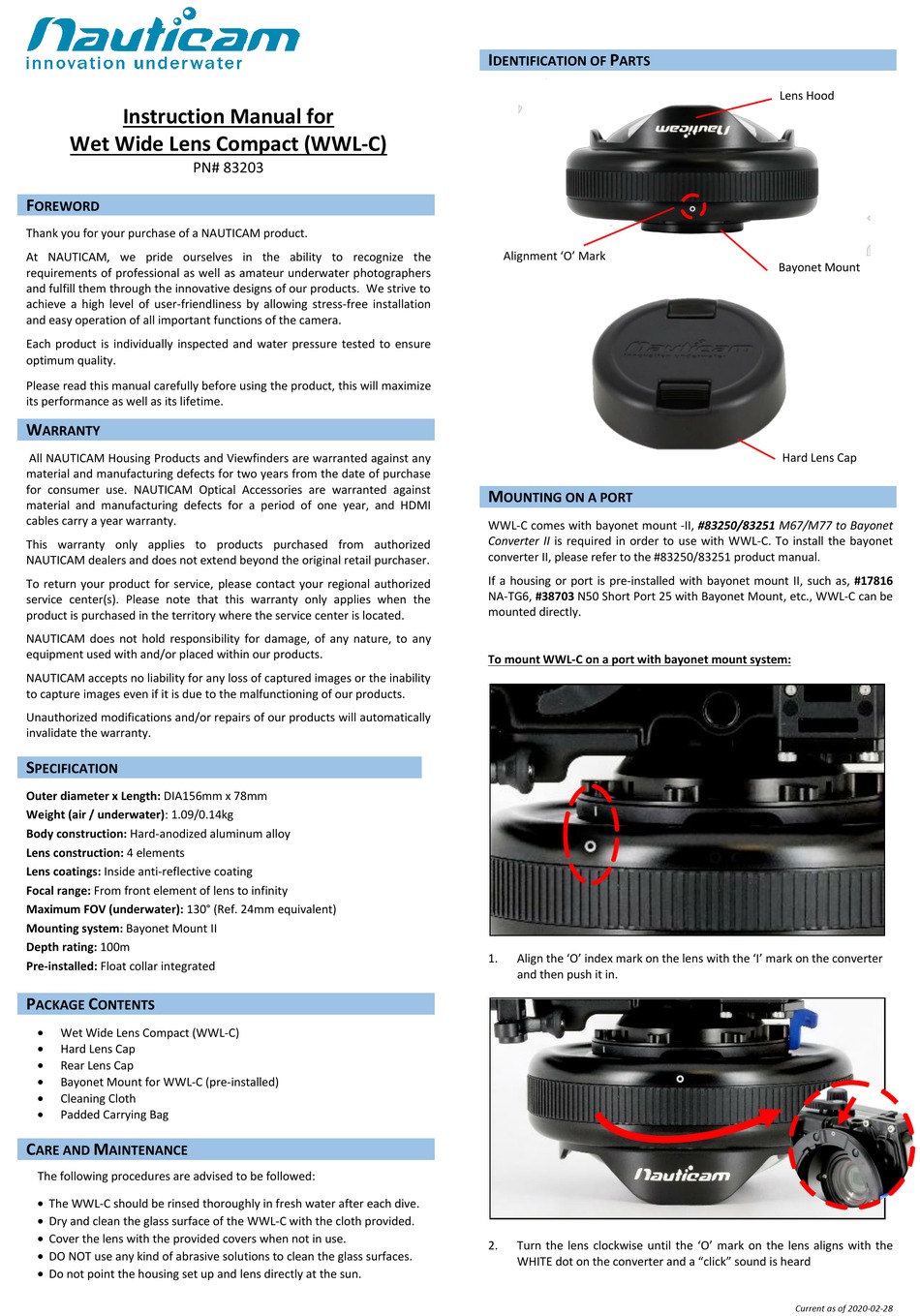

Instruction Manual for

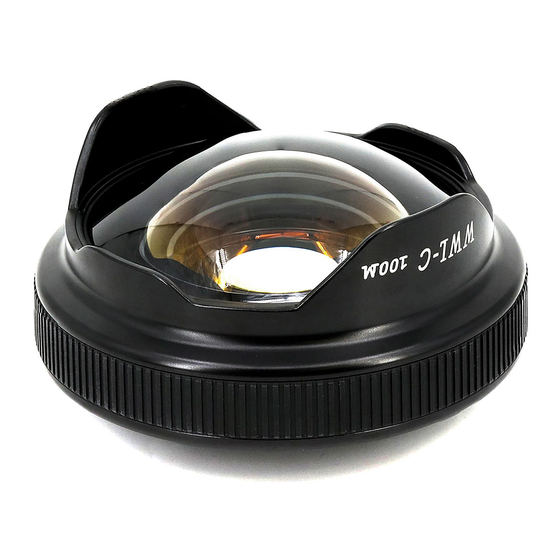

Wet Wide Lens Compact (WWL-C)
PN# 83203
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater photographers
and fulfill them through the innovative designs of our products. We strive to
achieve a high level of user-friendliness by allowing stress-free installation
and easy operation of all important functions of the camera.
Each product is individually inspected and water pressure tested to ensure
optimum quality.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Housing Products and Viewfinders are warranted against any
material and manufacturing defects for two years from the date of purchase
for consumer use. NAUTICAM Optical Accessories are warranted against
material and manufacturing defects for a period of one year, and HDMI
cables carry a year warranty.
This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service center(s). Please note that this warranty only applies when the
product is purchased in the territory where the service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
S
PECIFICATION
Outer diameter x Length: DIA156mm x 78mm
Weight (air / underwater): 1.09/0.14kg
Body construction: Hard-anodized aluminum alloy
Lens construction: 4 elements
Lens coatings: Inside anti-reflective coating
Focal range: From front element of lens to infinity
Maximum FOV (underwater): 130° (Ref. 24mm equivalent)
Mounting system: Bayonet Mount II
Depth rating: 100m
Pre-installed: Float collar integrated
P
C
ACKAGE
ONTENTS
Wet Wide Lens Compact (WWL-C)
Hard Lens Cap
Rear Lens Cap
Bayonet Mount for WWL-C (pre-installed)
Cleaning Cloth
Padded Carrying Bag
C
M
ARE AND
AINTENANCE
The following procedures are advised to be followed:
 The WWL-C should be rinsed thoroughly in fresh water after each dive.
 Dry and clean the glass surface of the WWL-C with the cloth provided.
 Cover the lens with the provided covers when not in use.
 DO NOT use any kind of abrasive solutions to clean the glass surfaces.
 Do not point the housing set up and lens directly at the sun.
I
P
DENTIFICATION OF
ARTS
Alignment 'O' Mark
M
OUNTING ON A PORT
WWL-C comes with bayonet mount -II, #83250/83251 M67/M77 to Bayonet
Converter II is required in order to use with WWL-C. To install the bayonet
converter II, please refer to the #83250/83251 product manual.
If a housing or port is pre-installed with bayonet mount II, such as, #17816
NA-TG6, #38703 N50 Short Port 25 with Bayonet Mount, etc., WWL-C can be
mounted directly.
To mount WWL-C on a port with bayonet mount system:
1.
Align the 'O' index mark on the lens with the 'I' mark on the converter
and then push it in.
2.
Turn the lens clockwise until the 'O' mark on the lens aligns with the
WHITE dot on the converter and a "click" sound is heard
Lens Hood
Bayonet Mount
Hard Lens Cap
Current as of 2020-02-28
