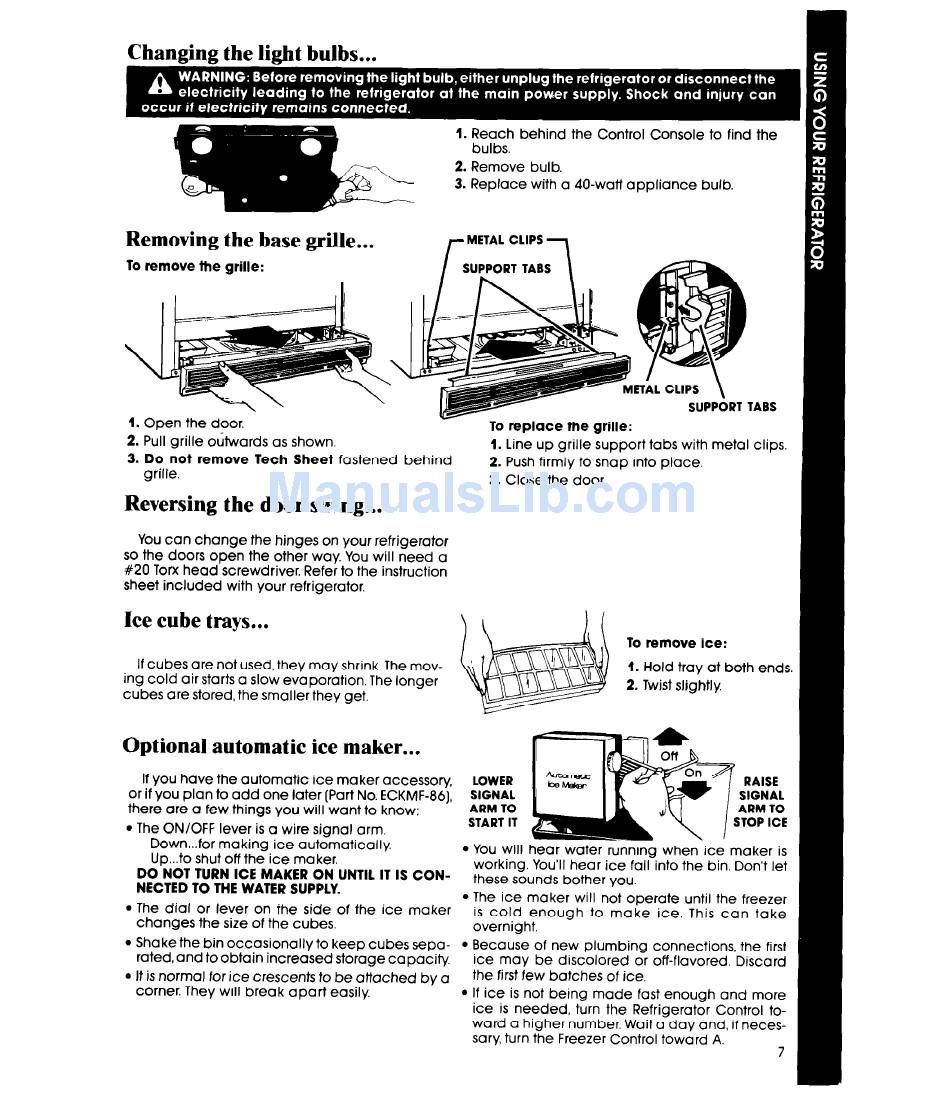

1. Reach
behind
the Control
Console
to find the
bulbs.
2. Remove
bulb.
3. Replace
with a 40-watt
appliance
bulb.
Removing the base grille...
To remove
the grille:
r
METAL CLIPS
SUPPORT TABS
1. Open the door,
Eli1
CLIPS
\
SUPPORT TABS
To replace
the grille:
1. Line up grille support
tabs with metal clips.
2. Push firmly to snap into place.
I
2. Pull grille outwards
as shown.
3. Do not remove
Tech Sheet
fastened
behind
grille.
3. Close the door.
Reversing the door swing...
You can change
the hinges on your refrigerator
so the doors open the other way. You will need a
#20 Torx head screwdriver.
Refer to the instruction
sheet included
with your refrigerator.
Ice cube trays...
If cubes are not used, they may shrink. The mov-
ing cold air starts a slow evaporation.
The longer
cubes are stored, the smaller they get.
Optional automatic ice maker...
If you have the automatic
ice maker accessory,
or if you plan to add one later (Part No. ECKMF-86),
there are a few things you will want to know:
l
The ON/OFF lever is a wire signal
arm.
Downfor
making
ice automatically.
Up...to shut off the ice maker.
DO NOT TURN ICE MAKER ON UNTIL IT IS CON-
NECTED TO THE WATER SUPPLY.
. The dial
or lever on the side of the ice maker
changes
the size of the cubes.
l
Shake the bin occasionally
to keep cubes sepa-
rated, and to obtain
increased
storage
capacity.
l
It is normal
for ice crescents
to be attached
by a
corner. They will break
apart
easily.
To remove
ice:
1. Hold tray at both ends.
2. Twist slightly
SIGNAL
ARM TO
START IT
a"\
I%::":
l
You will hear water
running
when
ice maker
is
working.
You'll hear ice fall into the bin. Don't let
these sounds bother you.
l
The ice maker
will not operate
until the freezer
is cold
enough
to make
ice. This can
take
overnight.
l
Because
of new plumbing
connections,
the first
ice may be discolored
or off-flavored.
Disc
the first few batches
of ice.
l
If ice is not being
made
fast enough
and more
ice is needed,
turn the Refrigerator
Control
to-
ward a higher number. Wait a day and, if neces-
sary, turn the Freezer Control toward
A.
