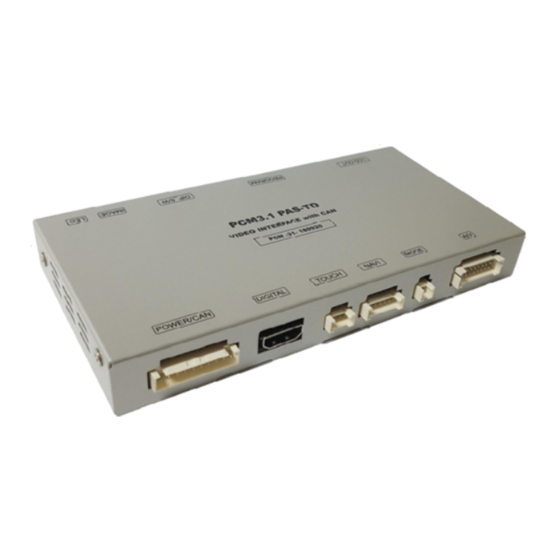

Volkswagen Touareg RCD550
- MODEL : PCM-31-171026
- DATE : 2020.02.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM-31-171026 and is the answer not in the manual?

Questions and answers

Related Manuals for GU Electronic PCM-31-171026

Summary of Contents for GU Electronic PCM-31-171026

  • Page 1 Volkswagen Touareg RCD550 - MODEL : PCM-31-171026 - DATE : 2020.02.01...
  • Page 2 1. Main Spec 2. Block Diagram 3. Dimension 4. External Appearance 5. Connector Pin Assignment 6. Product Composition 7. DIP S/W Setting 8. Mode change 9. Touch Control 10. OSD(On Screen Display) Control 11. Install Manual 12. Q & A GU Electronic...
  • Page 3 - Input Power : 8VDC ~ 24VDC - Consumption Power : 12Watt, Max 4. Switch Input mode - Possible to select CAR model while switching mode by DIP S/W - By button on the Commander in the car via CAN GU Electronic...

  • Page 4: Block Diagram

    2. Block Diagram 2. Block Diagram INTERFACE COMMAND EEPROM SYSTEM RECEIVER LVDS DIGITAL RGB LVDS LVDS Scaler RGB+Sync (PIP) CVBS1 CVBS2 COMPOSITE FRONT CAMERA COMPOSITE REAR CAMERA REAR CAMERA POWER BOARD RELAY TFT-LCD GU Electronic...
  • Page 5 3. Dimension 164mm * 83mm * 21mm 164mm 21mm 83mm * This can change under manufacturer’s circumstance GU Electronic...

  • Page 6: External Appearance

    4. External Appearance IMAGE DIP S/W PROGRAM LCD-OUT Analog Digital POWER (IN/OUT) Mode Touch GU Electronic...
  • Page 7 4. External Appearance LCD-OUT PROGRAM DIP S/W IMAGE Digital Analog POWER (IN/OUT) Mode Touch GU Electronic...

  • Page 8: Connector Pin Assignment

    ④ SYNC (White) ④ CAN-L (Green) ④ X+ ⑤ GND (Black) ⑤ REAR VCC (Red) ⑥ DMB IR (Green) ⑥ N.C ⑦ DVD IR (Orange) ⑦ REAR-CAM DETECT (Orange) ⑧ N.C ⑨ FRONT-CAM DETECT (Blue) ⑩ FRONT VCC (Red) GU Electronic...

  • Page 9: Product Composition

    SUB Board 1 EA Interface 1 EA RGB Navi Cable 1 EA A/V Cable 1 EA LVDS Cable(800mm) 1 EA Power Cable 1 EA Touch convertor Cable(KD-900) 1 EA Mode S/W 1 EA OSD Board 1 EA FPC Cable 2 EA GU Electronic...
  • Page 10 6. Product Composition * CarPlay Set Sales(option) – KPLAY AUX Cable 1 EA Interface 1 EA Power Cable 1 EA HDMI Cable 1 EA Antenna 2 EA Microphone 1 EA GU Electronic...
  • Page 11 6. Product Composition * CarPlay Set Sales(option) – NV17 AUX Cable 1 EA Interface 1 EA Power Cable 1 EA HDMI Cable 1 EA Microphone 1 EA GU Electronic...

  • Page 12: Dip S/W Setting

    FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used Volkswagen Touareg 6.5” RCD550 ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used CAR Type right refer to picture GU Electronic...

  • Page 13: Mode Change

    8. Mode Change Mode Change mode change : 1’s press NAVI GU Electronic...

  • Page 14: Touch Control

    Touch control - Calibration Press and hold for more than 11 seconds on NAVI, DVB-T, DVD screen. (Note that it only works the first time after switching screens) + Touch according to the shape coordinates. OSD menu -> Utility -> Calibration GU Electronic...
  • Page 15 9. Touch Control DVB-T/DVD Control DVB-T Press Icon GU Electronic...

  • Page 16: Osd(On Screen Display) Control

    When there is no OSD screen, pressing OSD ON When OSD screen is displayed, press OSD EXITT Item Selection, Value Selection Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu Second Menu Third Menu GU Electronic...
  • Page 17 First Menu Second Menu Third Menu Description DIGTAL-INAVI NAVI-RGB Setting the Connected NAVI Model ELT_DVBT20 DVB-T(DMB) Setting the Connected DVB-T Model Config ELT_980XU Slim Setting the Connected DVD Model Reset Execute Reset to default value of Config menu GU Electronic...
  • Page 18 + 12V supply only in Rear FrontCam-Power AUTO camera mode + 12V off GEAR Detected by CAN FrontCam-Det WIRE Detected by Rear-Det Wire After RearCam shows FrontCam and returns to previous state FrontCam-RcvOpt Disable feature Use the Streeing Wheel Button. StreeingWheelBtn Disable feature GU Electronic...
  • Page 19 REAR modes, output the output of AV OUT to the final screen. Option DVB-T device control UI output function UI DVB-T (DMB) Disable feature DVD device control UI output function UI DVD Disable feature Reset Execute Option Menu all Reset GU Electronic...
  • Page 20 10. OSD(On Screen Display) Control OSD Option -> FrontCam-RcvOpt Front Camera Auto Mode 0 second = FrontCam-RcvOpt menu OFF 1~30 second = FrontCam-RcvOpt menu ON & time control NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Select time of display 1~30 second GU Electronic...
  • Page 21 Adjust the value of contrast Saturation Adjust the value of Saturation Image Adjust the value of Hue Sharpness Adjust the value of Sharpness Reset Excute Option Menu all Reset << Brightness >> << Contrast >> << Saturation >> GU Electronic...
  • Page 22 Output screen horizontal Horizontal movement Output screen vertical Vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset GU Electronic...
  • Page 23 Show parking line Line Display Do not show parking lines Warnings Lang Set warning text language Parking Moving a parking line Horizontal horizontally Vertical Moving a parking line vertically Transparency Parking line transparency Reset Parking menu all reset GU Electronic...
  • Page 24 10. OSD(On Screen Display) Control OSD Parking – OPS Display On / Off OPS ON Screen OPS OFF Screen OSD Parking – Guide line On / Off Parking Line ON Screen Parking Line OFF Screen GU Electronic...
  • Page 25 10. OSD(On Screen Display) Control OSD Parking – Change warning language GU Electronic...
  • Page 26 Keypad in Horizontal / Vertical menu ※ Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. Please adjust from the parking line Screen. MENU DOWN Press “UP” button Press “MENU” button Press “SEL” button Press “DOWN” button GU Electronic...
  • Page 27 Third Menu Description Horizontal value OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift OSD Menu Display Time (in value Display Time seconds) value Transparency OSD menu transparency Language OSD menu display language Reset Execute Initialize OSD settings GU Electronic...
  • Page 28 (Check for future upgrades) Last Source : FDSYOOKRX-180209 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version PIP model : S3=Sync3, PP=PIP, LV=LVDS Motor model : FD=FORD, BM=BMW, BE=BENZ, MA=MASERATI, LX:LEXUS GU Electronic...
  • Page 29 11. Install Manual 1. Installation Navigation Connection DVD-IR DVBT-IR *KD-900 navigation SYNC Analog RGB BLUE GREEN Resistive Touch KD-900 GU Electronic...
  • Page 30 11. Install Manual 2. Installation DVB-T Remote Control Connection ① or ② 선택1 DVD IR DVB-T IR SYNC BLUE GREEN 선택2 DVB-T-IR GU Electronic...
  • Page 31 11. Install Manual 3. Installation DVD Remote Control Connection DVD IR DVB-T IR SYNC BLUE GREEN DHA-S690 DVD-IR GU Electronic...
  • Page 32 FRONT-POWER (Red) 10. FRONT Power (Red) 9. FRONT Detect (Blue) 8. N.C 7. REAR Detect (Brown) 6. N.C 5. REAR Power (Red) 4. CAN-L (Green) 3. CAN-H (Orange) 2. GND (Black) +12V 1. ACC (Red) ON / OFF GU Electronic...
  • Page 33 5. Installation External Reverse(Rear) Camera Connection REAR REAR-POWER (Red) 10. FRONT Power (Red) 9. FRONT Detect (Blue) 8. N.C 7. REAR Detect (Brown) 6. N.C 5. REAR Power (Red) +12V 4. CAN-L (Green) 3. CAN-H (Orange) 2. GND (Black) 1. ACC (Red) GU Electronic...
  • Page 34 6. Installation CAN Connection 10. FRONT Power (Red) 9. FRONT Detect (Blue) 8. N.C 7. REAR Detect (Brown) 6. N.C Can low 5. REAR Power (Red) 4. CAN-L (Green) 3. CAN-H (Orange) 2. GND (Black) 1. ACC (Red) Can high GU Electronic...
  • Page 35 11. Install Manual 7. Installation GU Electronic...
  • Page 36 11. Install Manual 7. Installation GU Electronic...
  • Page 37 11. Install Manual 7. Installation GU Electronic...
  • Page 38 11. Install Manual 8. Installation CarPlay - KPLAY * When installing CarPlay, set it to OSD MENU-OPTION-NAV COM-KPLAY. Iphone Microphone 3.5pie aux cable Screen GU Electronic...
  • Page 39 11. Install Manual 9. Installation CarPlay – NV17 * When installing CarPlay, set it to OSD MENU-OPTION-NAV COM-NV17. 3.5pie aux cable Iphone Screen Screen Microphone Screen GU Electronic...
  • Page 40 - If nothing turns on, check that the power and CAN signals are properly connected 2. Q : When the screen turns black A : LVDS cable itself is bad or bad contact. 3. If you find any symptoms with these symptoms, please contact your distributor GU Electronic...
