Roland FP-30 Midi Implementation Manual

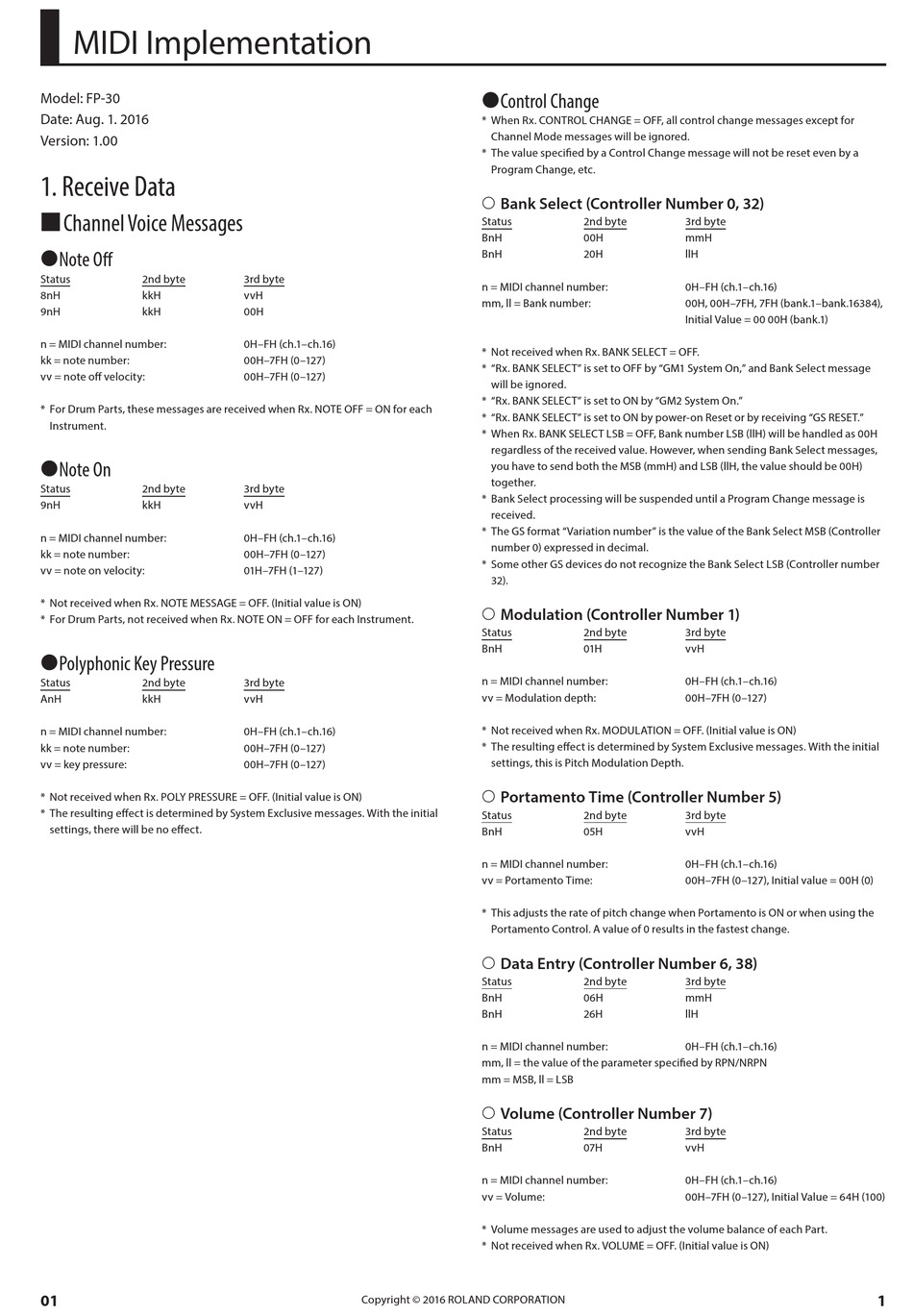

MIDI Implementation
Model: FP-30
Date: Aug. 1. 2016
Version: 1.00
1. Receive Data
9Channel Voice Messages
7Note Off
Status 2nd byte
8nH kkH
9nH kkH
n = MIDI channel number:
kk = note number:
vv = note off velocity:
* For Drum Parts, these messages are received when Rx. NOTE OFF = ON for each
Instrument.
7Note On
Status 2nd byte
9nH kkH
n = MIDI channel number:
kk = note number:
vv = note on velocity:
* Not received when Rx. NOTE MESSAGE = OFF. (Initial value is ON)
* For Drum Parts, not received when Rx. NOTE ON = OFF for each Instrument.
7Polyphonic Key Pressure
Status 2nd byte
AnH kkH
n = MIDI channel number:
kk = note number:
vv = key pressure:
* Not received when Rx. POLY PRESSURE = OFF. (Initial value is ON)
* The resulting effect is determined by System Exclusive messages. With the initial
settings, there will be no effect.
01
3rd byte
vvH
00H
0H–FH (ch.1–ch.16)
00H–7FH (0–127)
00H–7FH (0–127)
3rd byte
vvH
0H–FH (ch.1–ch.16)
00H–7FH (0–127)
01H–7FH (1–127)
3rd byte
vvH
0H–FH (ch.1–ch.16)
00H–7FH (0–127)
00H–7FH (0–127)
Copyright © 2016 ROLAND CORPORATION
7Control Change
* When Rx. CONTROL CHANGE = OFF, all control change messages except for
Channel Mode messages will be ignored.
* The value specified by a Control Change message will not be reset even by a
Program Change, etc.
6 Bank Select (Controller Number 0, 32)
Status 2nd byte
BnH 00H
BnH 20H
n = MIDI channel number:
mm, ll = Bank number:
* Not received when Rx. BANK SELECT = OFF.
* "Rx. BANK SELECT" is set to OFF by "GM1 System On," and Bank Select message
will be ignored.
* "Rx. BANK SELECT" is set to ON by "GM2 System On."
* "Rx. BANK SELECT" is set to ON by power-on Reset or by receiving "GS RESET."
* When Rx. BANK SELECT LSB = OFF, Bank number LSB (llH) will be handled as 00H
regardless of the received value. However, when sending Bank Select messages,
you have to send both the MSB (mmH) and LSB (llH, the value should be 00H)
together.
* Bank Select processing will be suspended until a Program Change message is
received.
* The GS format "Variation number" is the value of the Bank Select MSB (Controller
number 0) expressed in decimal.
* Some other GS devices do not recognize the Bank Select LSB (Controller number
32).
6 Modulation (Controller Number 1)
Status 2nd byte
BnH 01H
n = MIDI channel number:
vv = Modulation depth:
* Not received when Rx. MODULATION = OFF. (Initial value is ON)
* The resulting effect is determined by System Exclusive messages. With the initial
settings, this is Pitch Modulation Depth.
6 Portamento Time (Controller Number 5)
Status 2nd byte
BnH 05H
n = MIDI channel number:
vv = Portamento Time:
* This adjusts the rate of pitch change when Portamento is ON or when using the
Portamento Control. A value of 0 results in the fastest change.
6 Data Entry (Controller Number 6, 38)
Status 2nd byte
BnH 06H
BnH 26H
n = MIDI channel number:
mm, ll = the value of the parameter specified by RPN/NRPN
mm = MSB, ll = LSB
6 Volume (Controller Number 7)
Status 2nd byte
BnH 07H
n = MIDI channel number:
vv = Volume:
* Volume messages are used to adjust the volume balance of each Part.
* Not received when Rx. VOLUME = OFF. (Initial value is ON)
3rd byte
mmH
llH
0H–FH (ch.1–ch.16)
00H, 00H–7FH, 7FH (bank.1–bank.16384),
Initial Value = 00 00H (bank.1)
3rd byte
vvH
0H–FH (ch.1–ch.16)
00H–7FH (0–127)
3rd byte
vvH
0H–FH (ch.1–ch.16)
00H–7FH (0–127), Initial value = 00H (0)
3rd byte
mmH
llH
0H–FH (ch.1–ch.16)
3rd byte
vvH
0H–FH (ch.1–ch.16)
00H–7FH (0–127), Initial Value = 64H (100)
