2W-BLX/2WT-BLX ADDRESSABLE
SMOKE DETECTOR
Installation Guide

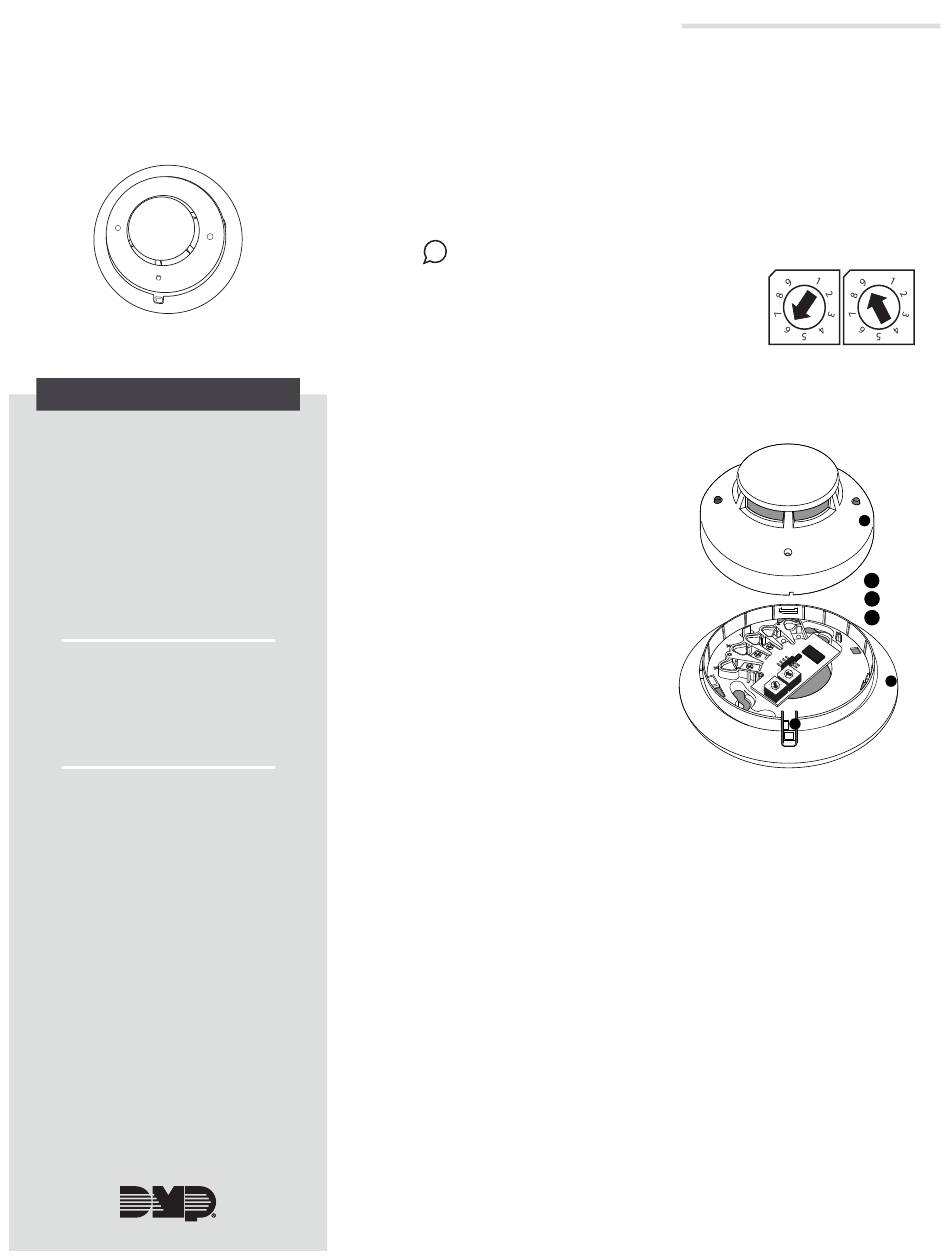

Figure 1: 2W-BLX/2WT-BLX
Addressable Smoke Detector
DESCRIPTION
Models 2W-BLX and 2WT-BLX are
addressable photoelectric smoke
detectors. Both models incorporate
a state-of-the-art optical sensing
chamber and an advanced
microprocessor. These smoke
detectors include an addressable
single-point module for connection
to the LX-Bus of XR150/XR550
™
Series panels.
Compatibility
• XR150/XR550 Series Panels
What is Included?
• One 2W-BLX or 2WT-BLX smoke
detector
• 4-wire harness
• Harware pack
1
ADDRESS THE DETECTOR
Set the two on-board rotary switches to match the last two zone
number digits.
Example: On an XR550 panel,
to set the detector to
zone number 569 on
LX-Bus 500, set the left
rotary switch (TENS) to 6
and the right rotary switch
(ONES) to 9. See Figure 2.
2
INSTALL THE DETECTOR
The detector has a tamper-
resistant feature that prevents
removal from the mounting
base without the use of a
tool.
To engage, cut the small
plastic tab located on the
mounting base (Figure 3),
and then install the detector.
To remove the detector head,
use a small screw driver to
depress the square tamper
release tab on the skirt of the
mounting base and turn the
detector counterclockwise.
3
SELECT A LOCATION
Mount the Base:
The detector can be mounted to any of the following surfaces:
• A single gang box
• A 3.5- or 4-inch octagonal box
• A 4-inch square box with a plaster ring
• A ceiling using drywall fasteners
Do Not Install the Detector:
• Where particles of combustion are normally present such as
in kitchens or garages (vehicle exhaust) or near furnaces, hot
water heaters, or gas space heaters.
• In very cold or very hot areas.
• In wet or excessively humid areas or next to bathrooms with
showers.
• In dusty, dirty, or insect-infested areas.
• Near fresh air inlets or returns or excessively drafty areas.
These can drive smoke away from the detector.
Tens Ones
0 0
Figure 2: Rotary Switches
Set for Zone Address 569
A
A Head
B Base
C Plastic Tab
B
C
Figure 3: Locking Mount
