There are three different length tic marks on the altitude scale. The longest tic marks
represent 10-degree increments, the medium marks represent 5-degree increments and
the short marks occur at one degree increments. The lowest setting is 15 degrees altitude,
so that first long tic mark represents 20 degrees.
In the middle of the latitude range (approximately 36 degrees), one full turn of the altitude
positioning-device equals one degree, with slightly different amounts at the extremes.
Each tic (or high spot) on the altitude-positioning device knob is equal to two arcminutes
(see Figure 26 for the definition of a tic on this knob).

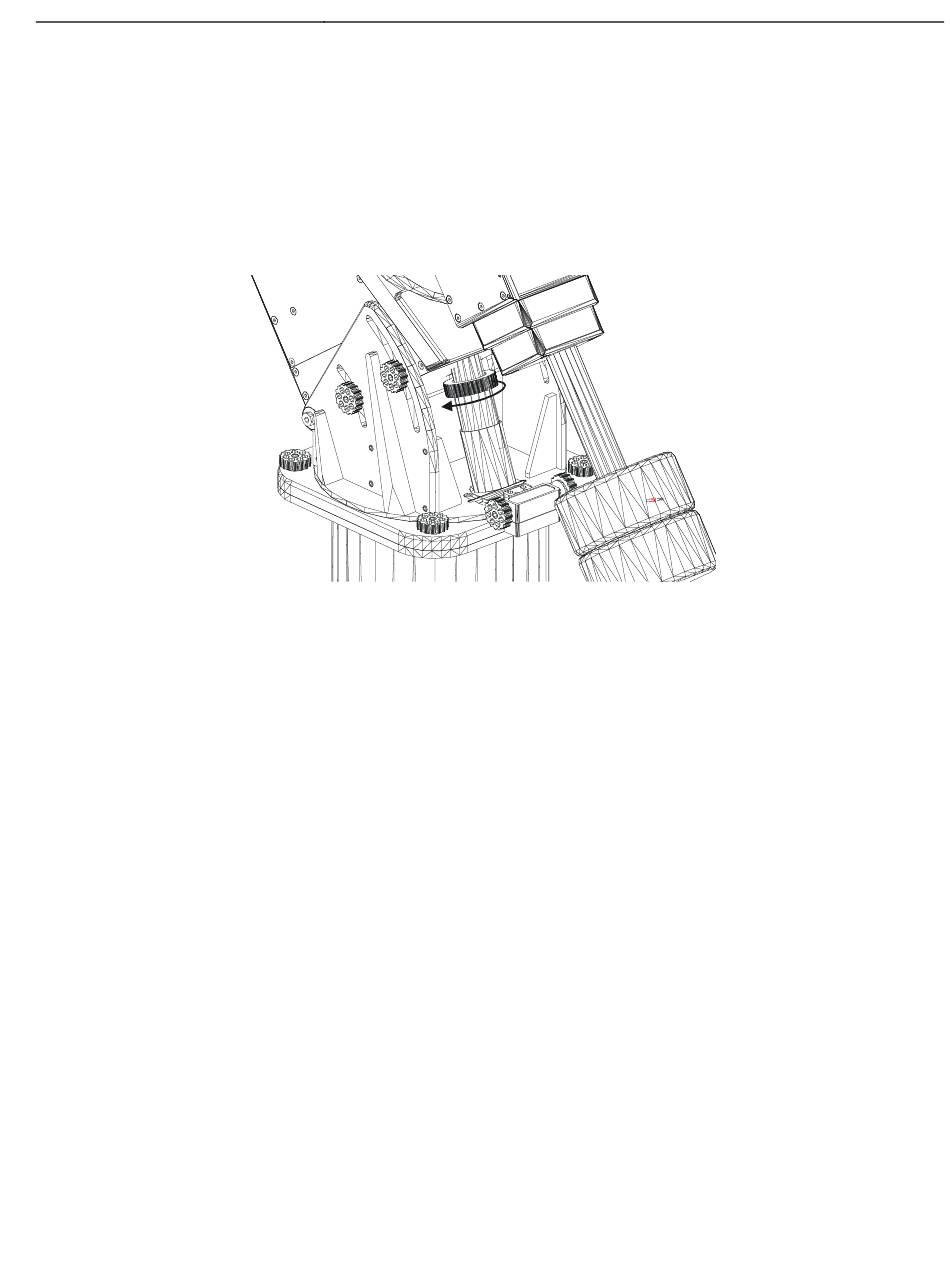

Figure 7: The arrow above shows the rotation direction for lowering altitude using the altitude-
Loosen the four altitude retaining knobs (two on each side of the mount) about two
complete turns. This allows the right ascension housing to move freely within the wedge
assembly using the altitude-positioning device (
Tip
Remember the "Right Hand" Rule!
The Paramount ME uses "right-handed" threads. If you need to make an altitude
adjustment, and forget which direction to rotate the altitude-positioning device,
just use the right hand rule.
For example, suppose you need to increase the mount's altitude. Point the
thumb on your right hand upward. Rotate the altitude-positioning device in the
direction your fingers curl. Simple!
Initially, consider adjusting the altitude slightly higher than your latitude so that any
adjustment during polar alignment is downward. If the altitude must be adjusted higher,
you can lift the declination housing, or counterweight shaft (page
altitude-positioning device easier.
Attaching the Counterweight Shaft
The counterweight shaft should be threaded into the bottom of the declination housing
(
F igure 8
) until tight. The counterweight safety knob screws into the opposite end of the
X
X
shaft. To be safe, this knob should always be in place whenever any counterweights are
mounted on the counterweight shaft.
positioning device.
F igure 7
) .
X
X
Paramount ME User's Guide
2 7
) to make rotating the
X
X
27
