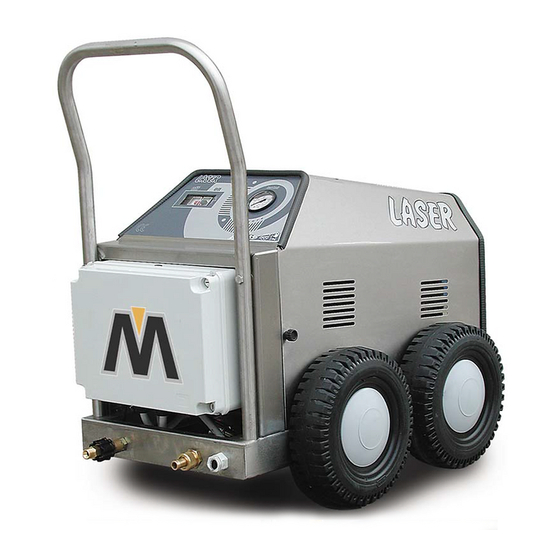

- Page 1 High Pressure Cleaner LASER Instructions Manual Instructions for installation and use Manufactured by: MAER IDROPULITRICI SNC Via Torre 65/2 24050 Torre Pallavicina BG Tel 0039 0363 996579 Fax 0039 0363 996688 maer@maeridropulitrici.com www.maeridropulitrici.com ITALY...
-
Page 2: Table Of Contents
Contents 1. Field of employment 2. Characteristics of the personnel employed to use the cleaner 3. Accidents prevention 4. Characteristics of the high pressure cleaner 5. Instruments of the high pressure cleaner 6. Transport and unpacking 7. Installation 8. Connection to the electricity supply 9. -
Page 3: Field Of Employment
INSTRUCTIONS MANUAL INSTRUCTIONS FOR INSTALLATION AND USE Congratulations! By purchasing a MAER high pressure cleaner, you have purchased a high technology machine that will allow you to realize, for a long time, washing operations with care, versatility and safety. The customer and buyer must verify that the operators have read and know the content of the manual and that, therefore, attentively and meticulously follow all the indications. -
Page 4: Accidents Prevention
3. Accidents prevention 3.1. The instructions furnished in this manual don’t replace in any way the norms related to the safety, to the installation and the use, to the technical data or the norms in force in the nation of installation or use or the norms dictated of the common sense. -
Page 5: Characteristics Of The High Pressure Cleaner

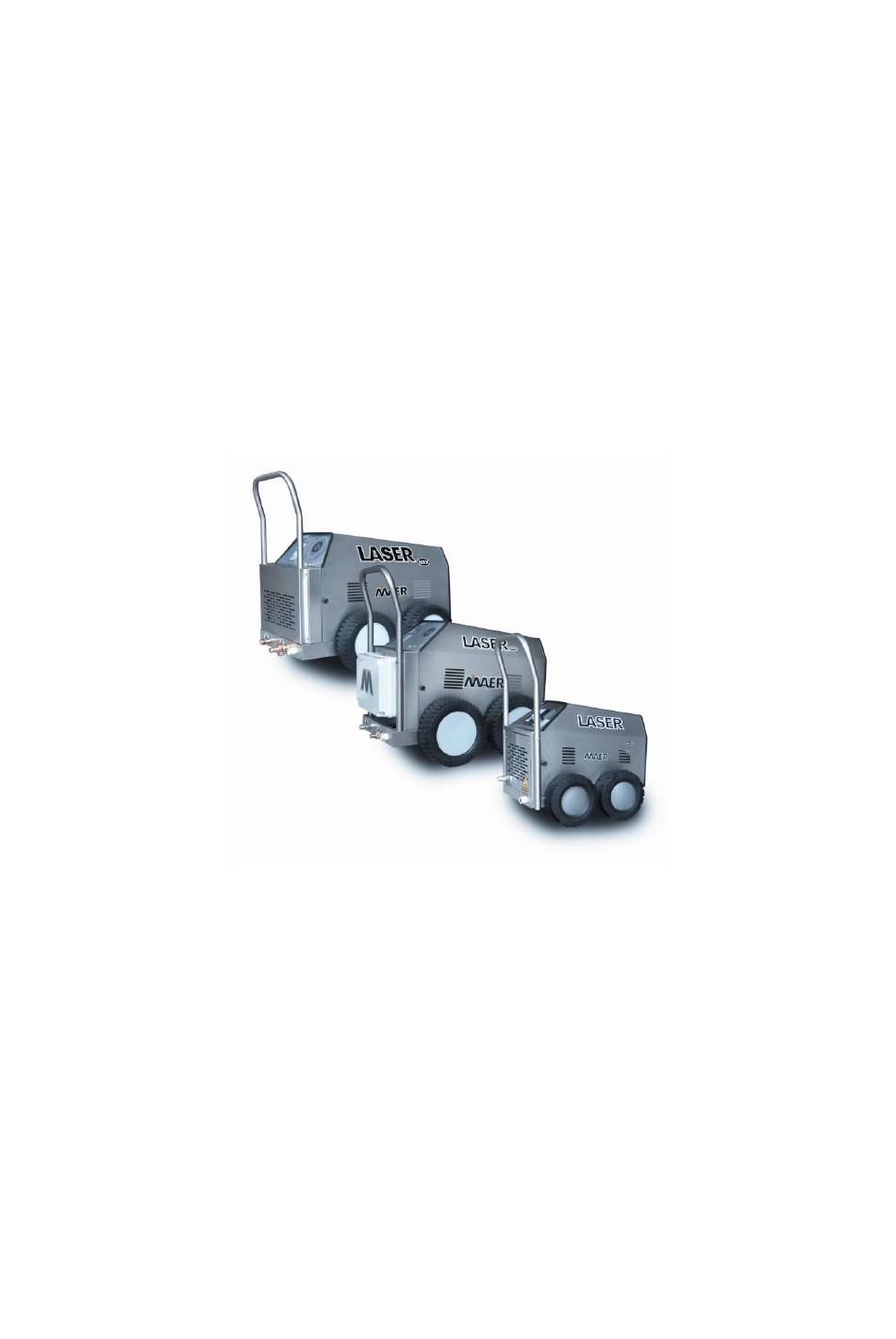

4. Characteristics of the high pressure cleaners The high pressure cleaners LASER are divided in the following models: Model Maximum Maximum Installed Voltage Weight pressure Flow Power 50Hz (Kg-lb) (bar-psi) (l/min-gal/min) (KW) LASER MAX200/21 200-2900 21-5.5 85-187 LASER MAX200/30 200-2900 30-7.9 95-209 LASER PRO150/15... -
Page 6: Transport And Unpacking
6. Transport and unpacking 6.1. Submit lifting and transport to specialized personnel. Protect the machine, especially during transports on road, from bumps, damps or from vibrations, etc… The high pressure cleaner is climbed on wheels, it must firmly be anchored before the beginning of the transport. 6.2. -
Page 7: Installation
7. Installation 7.1. Control carefully that the environment for the installation of the high pressure cleaner considering all the foreseen and unforeseen possibilities. The machine is equipped with wheels, therefore it is unadvisable to position it, without precautions, on tilted surfaces. 8. -
Page 8: Switching On
9.5. When the machine is equipped with a special tank, it is convenient to install a filter upstream of the tank: the pipe of water feeding must have a diameter not smaller than the link of the connection to the machine and must be prepared in such way to avoid that possible airlocks are formed. -
Page 9: Demolition
II of the legislative decree 22/97. 14.3. ATTENTION: MAER IDROPULITRICI society does not assume any responsibility for damages to things, personal or animals, consequential and consequent to the re-use of the single parts or the single components of the machine for function or situation of the assemblage different from the original for which the high pressure cleaner has been conceived. -
Page 10: Hydraulic Plan
16. Hydraulic plan 2) Water inlet hose 3) Flow adjustment tap 4 )Delivery hose 6) Pump 7) Motor 8) Detergent tap 9) Detergent inlet hose 10) Tank 11) Filter 12) Nozzle 13) Microswitch 14) By-pass valve 15) By-pass hose 16 )Pressure gauge 22) Pistol 23) 10 m high pressure hose... -
Page 11: Warranty
17. Warranty 17.1 The High pressure cleaner has a twelve-month warranty from the date of delivery. Defects and vices connected or consequent to not compliance with the indications contained in this manual ARE EXCLUDED FROM THE WARRANTY. 17.2 MAER Guarantees the mechanical parts of the machine, under normal conditions of use and service; this warranty does not include accessories and usage materials. -
Page 12: Declaration Of Conformity
- EN 292-1 / EN 292-2 / EN 60204-1 / EN 60335-2-79 / EN 60335-10 as described in the technical dossier, in the instructions manual for the use and the maintenance. The technical dossier is filed at MAER IDROPULITRICI SNC company. Torre Pallavicina,...
