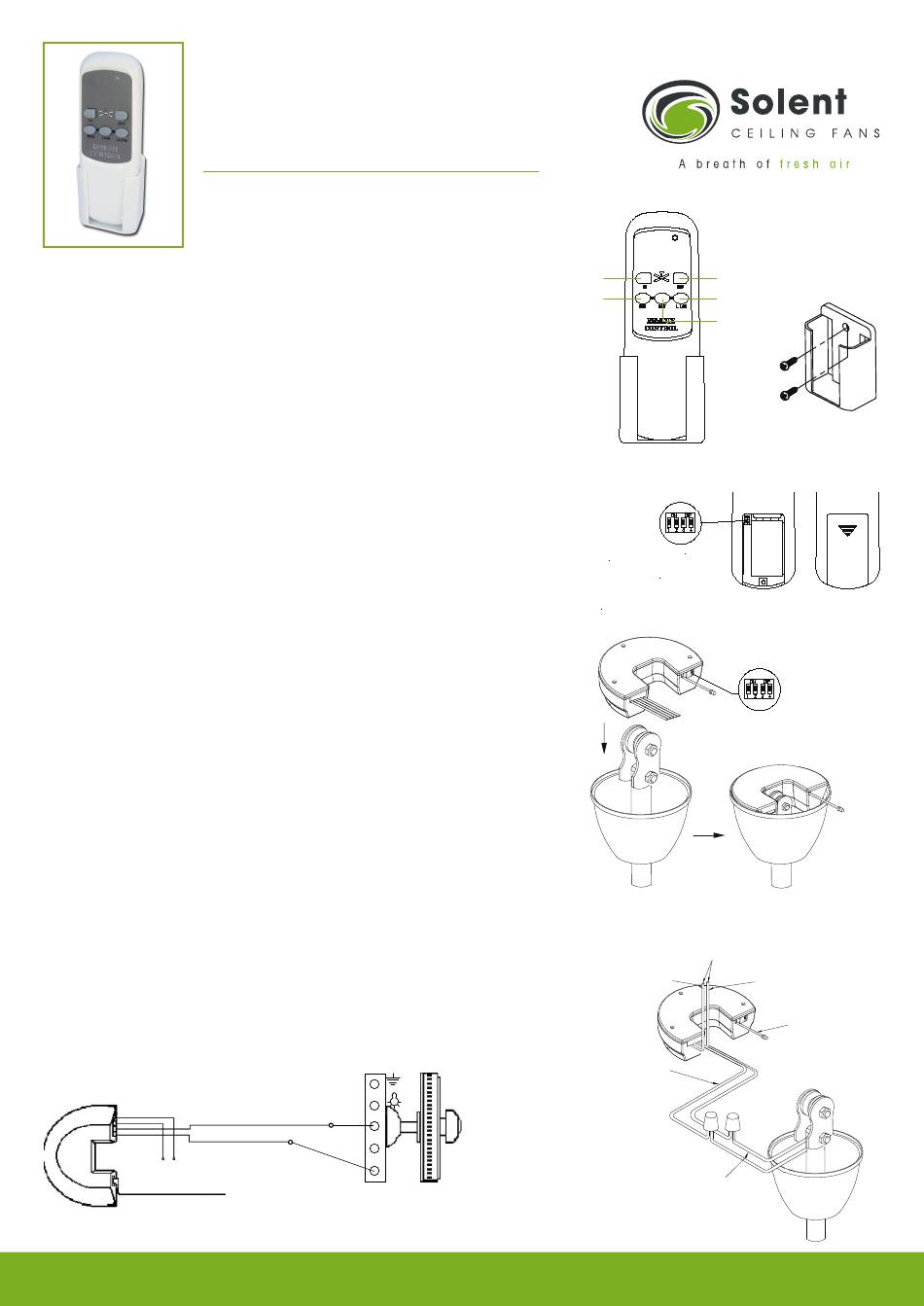

Solent RemoteF4 Installation Instructions

RemoteF4
I N S T A L L A T I O N
RemoteF4
Important Points
1. Please note that all fixed wiring appliances should be installed by a qualified electrician.
2. The supply to the remote control receiver should be connected through a mains switch,
i.e. existing wall switch.
3. Disconnect from power supply at wall switch before working on remote control receiver
or ceiling fan.
4. This unit is to be used for the control of ceiling fans and in an AC230/240V 50Hz power
supply only.
5. The radio frequency remote controller shall be used within its rating range
of 100 watt maximum.
6. Do not install in damp locations or immerse into water. (For indoor use only.)
7. Do not pull on or cut leads shorter. Do not drop or bump the unit.
8. The batteries will weaken with age and should be replaced before leaking takes place
as this will damage the transmitter.

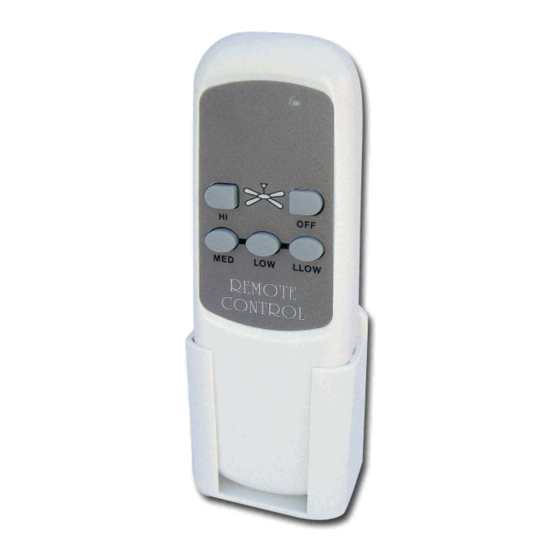

Functions of the Transmitter
1. OFF : Turn off ceiling fan.
2. HI : Turn on ceiling fan at High speed.
3. MED : Turn on ceiling fan at Medium speed
4. LOW : Turn on ceiling fan at Low speed
5. SLOW : Turn on ceiling fan at Slow speed
Code Dip Switch
1. Codes are set by pushing dip switches up or down. It is imperative that the code used
for both transmitter and receiver is exactly the same; otherwise remote controller will
not work. Please note the code switch will enable you to operate a second remote
controller independently. For example, if you have two ceiling fans with 2 remote control
units, set 2 different codes for each set of transmitter/receivers. This means you can
operate each ceiling fan independently.
2. Your remote control is ready for use after battery installation (Battery supplied).
Connection of Receiver Instructions
1. Connect the RECEIVER as shown in wiring diagram.
2. Set the dip switch code.
3. Once connections made place the RECEIVER in the canopy and slide the canopy up
and tighten in position.
4. Caution: Incorrect wire connections will damage the receiver.
5. Caution: Do not use this product in conjunction with any variable (rheostat)
wall control/regulator.
Overload Protection for Fan Motor
If your fan or light suddenly goes off, check the protection fuses.
To fan/LIVE
To fan/NEUTRAL
BLACK RED
N L
AC Power Input
Antenna
Receiver
t +27 (0) 31 563 4600 | info@solent.co.za | www.solent.co.za
I N S T R U C T I O N S
- Fan Four Speed only
WHITE
L
BLACK
N
Connection Block
on Fan Motor
Hi Fan OFF
Med Slow
Low
TRANSMITTER
Dip Switch
RECEIVER
VIEW AFTER
INSTALLATION
CONNECTION
AC Power Supply
RED
(Mains/Live)
BLACK
(Fan/Light/Neutral)
WHITE
(Fan/Live)
Installation of
Transmitter Wall Mount
Holder with two screws
To open battery
housing cover: Press
down and slide out
Dip Switch
Antenna
BLACK
(Mains/Neutral)
Antenna
BLACK
