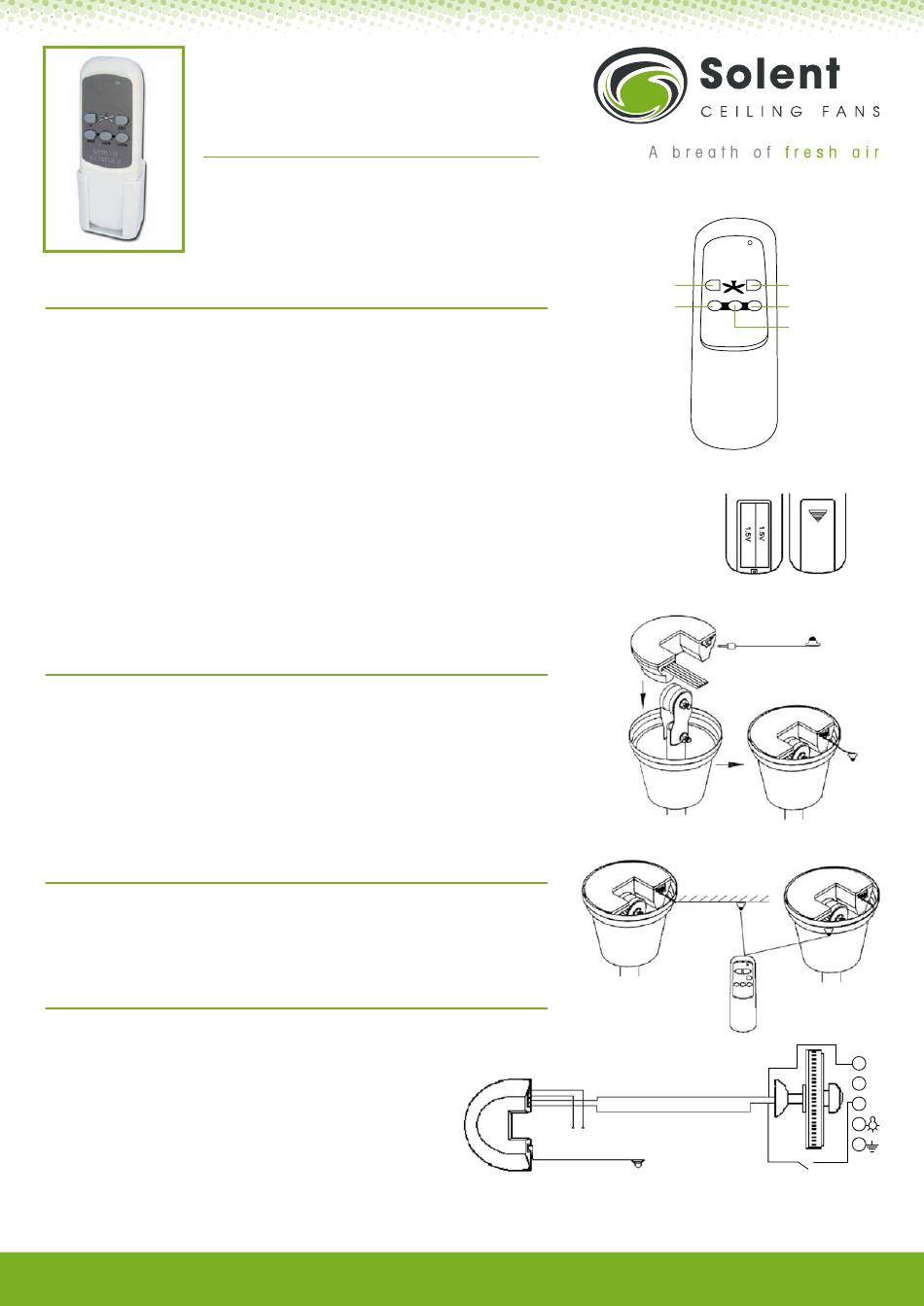

Solent RemoteF4 Installation Instructions

RemoteF4
I N S T A L L A T I O N
RemoteF4
I M P O R T A N T P O I N T S
1. Before installation, TURN OFF the power to your ceiling fan.
2. The installation must be done by a QUALIFID ELECTRICIAN.
3. This unit is to be used in an AC 220/240 Volt 50Hz supply only.
4. Rating: Maximum 100 watts for the fan motor.
5. For indoor use only. Do not install in damp locations or immerse in water.
6. Do not pull on or cut the leads shorter.
7. Do not drop or bump the unit.
8. The batteries will weaken with age and should be replaced before leaking
takes place as this will damage the transmitter.
9. The electric shock protection of the INFRA RED receiver shall depend on its
installation
10. The INFRA RED remote controller shall be used within its rating range, otherwise
overheating and dangerous phenomenon may occur.
F U N C T I O N S O F T H E T R A N S M I T T E R
Point the transmitter at the Infra Red sensor and press buttons for desired operation.
1. OFF : Turn off ceiling fan.
2. HI : Turn on ceiling fan at High speed.
3. MED : Turn on ceiling fan at Medium speed
4. LOW : Turn on ceiling fan at Low speed
5. SLOW : Turn on ceiling fan at Slow speed
O V E R L O A D P R O T E C T I O N F O R F A N M O T O R
If your fan goes off suddenly, it may be because of the fan motor overload
protection function.
Press the Fan OFF button to reset the overload and to turn the fan on again.
C O N N E C T I O N O F T H E R E C E I V E R & I N F R A R E D S E N S O R
1. Connect the RECEIVER as shown in wiring diagram.
2. Plug in the INFRA RED SENSOR and position it outside the canopy.
3. Once connections made place the RECEIVER in the canopy
and slide the canopy up and tighten in position.
4. Caution: Incorrect wire connections will damage
the receiver.
t +27 (0) 31 563 4600 | info@solent.co.za | www.solent.co.za
I N S T R U C T I O N S
- Fan Four Speed only
Hi
Med
To open battery
housing cover:
Press down and
slide out
Receiver
VIEW AFTER INSTALLATION
IR SENSOR POSITIONING
To fan/NEUTRAL
To fan/LIVE
BLACK RED
N L
AC Power Input
Receiver IR Sensor
Fan OFF
HI OFF
Slow
MED LOW SLOW
Low
TRANSMITTER
IR Sensor
Ceiling
OR
N
BLACK
WHITE
Fan Motor
Toggle Switch
on bottom canopy
L
