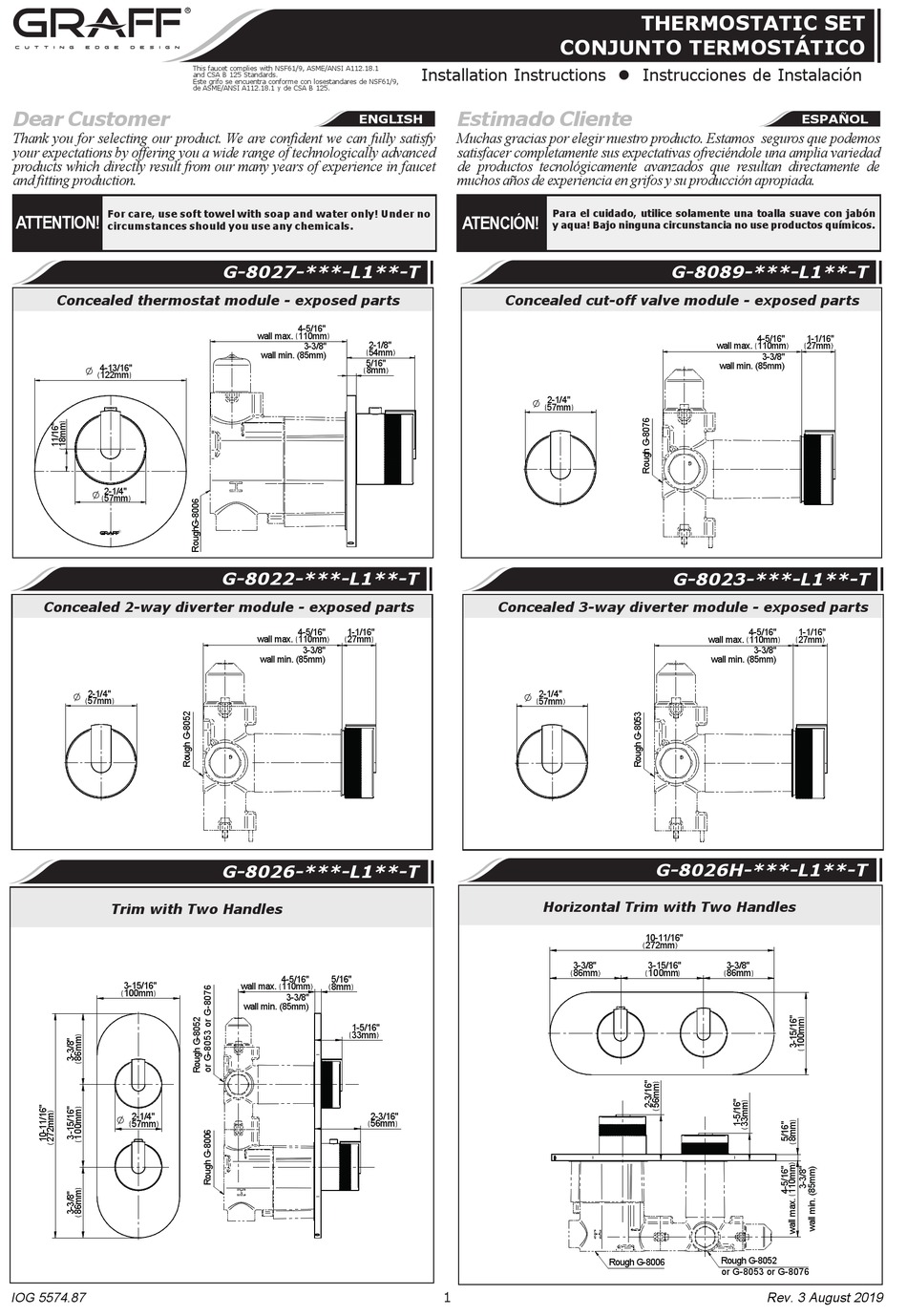

Thermostatic set

Advertisement

Dear Customer
Thank you for selecting our product. We are confident we can fully satisfy
your expectations by offering you a wide range of technologically advanced
products which directly result from our many years of experience in faucet
and fitting production.
For care, use soft towel with soap and water only! Under no
ATTENTION!
circumstances should you use any chemicals.

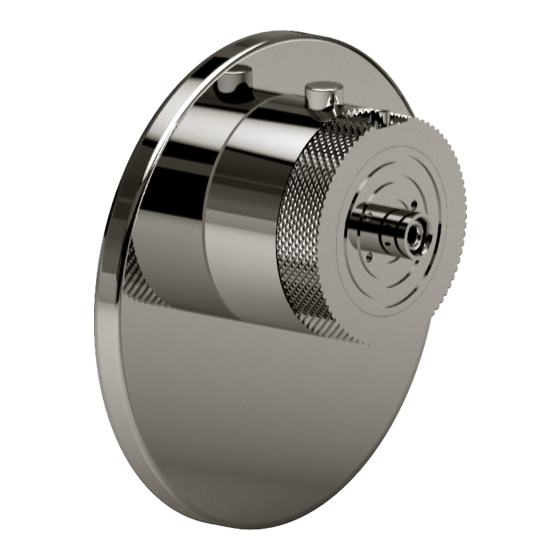

Concealed thermostat module - exposed parts
O 4-13/16"
122mm
O 2-1/4"
57mm
S
Concealed 2-way diverter module - exposed parts
O 2-1/4"
57mm
Trim with Two Handles
3-15/16"
100mm
O 2-1/4"
57mm
IOG 5574.87
This faucet complies with NSF61/9, ASME/ANSI A112.18.1
and CSA B 125 Standards.
Este grifo se encuentra conforme con losestandares de NSF61/9,
de ASME/ANSI A112.18.1 y de CSA B 125.
ENGLISH
G-8027-***-L1**-T
4-5/16"
wall max.
110mm
3-3/8"
wall min. (85mm)
G-8022-***-L1**-T
4-5/16"
1-1/16"
wall max.
110mm
27mm
3-3/8"
wall min. (85mm)
G-8026-***-L1**-T
4-5/16"
5/16"
wall max.
110mm
8mm
3-3/8"
wall min. (85mm)
1-5/16"
33mm
Installation Instructions
Estimado Cliente
Muchas gracias por elegir nuestro producto. Estamos seguros que podemos
satisfacer completamente sus expectativas ofreciéndole una amplia variedad
de productos tecnológicamente avanzados que resultan directamente de
muchos años de experiencia en grifos y su producción apropiada.
ATENCIÓN!
Concealed cut-off valve module - exposed parts
2-1/8"
54mm
5/16"
8mm
O 2-1/4"
Concealed 3-way diverter module - exposed parts
O 2-1/4"
2-3/16"
56mm
1
THERMOSTATIC SET
CONJUNTO TERMOSTÁTICO
Instrucciones de Instalación
Para el cuidado, utilice solamente una toalla suave con jabón
y aqua! Bajo ninguna circunstancia no use productos químicos.
G-8089-***-L1**-T
57mm
G-8023-***-L1**-T
wall max.
57mm
G-8026H-***-L1**-T
Horizontal Trim with Two Handles
10-11/16"
272mm
3-3/8"
3-15/16"
86mm
100mm
Rough G-8006
~
ESPANOL
4-5/16"
1-1/16"
wall max.
110mm
27mm
3-3/8"
wall min. (85mm)
4-5/16"
1-1/16"
110mm
27mm
3-3/8"
wall min. (85mm)
3-3/8"
86mm
Rough G-8052
or G-8053 or G-8076
Rev. 3 August 2019
