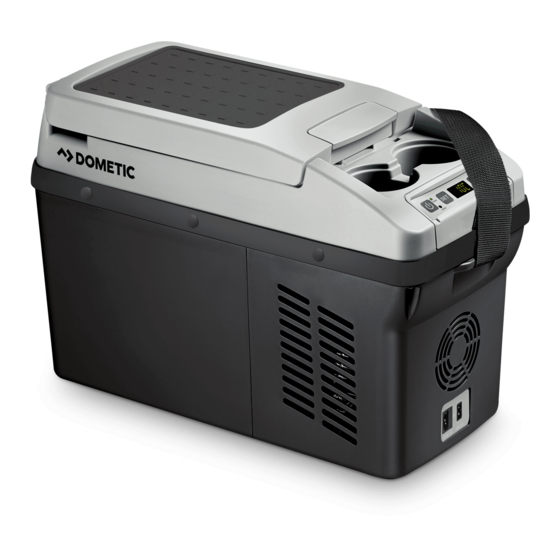

- Page 2 CF11 CF16 CF26 CoolFreeze CF11, CF16, CF26 EN 21 Compressor Cooler Operating manual Autogoods “130”...
- Page 3 CoolFreeze POWER FRIDGE FREEZER ERROR CF11 POWER ° ERROR CF16, CF26 Autogoods “130”...
- Page 4 CoolFreeze Autogoods “130”...
-
Page 5: Table Of Contents
CoolFreeze Explanation of symbols Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it. -
Page 6: Safety Instructions
Safety instructions CoolFreeze NOTE Supplementary information for operating the product. ➤ Action: This symbol indicates that action is required on your part. The required action is described step-by-step. ✓ This symbol describes the result of an action. Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3. - Page 7 CoolFreeze Safety instructions CAUTION! Disconnect the device from the power supply – before each cleaning and maintenance – after every use Food may only be stored in its original packaging or in suitable containers. NOTICE! Check that the voltage specification on the type plate corresponds to that of the energy supply.
-
Page 8: Scope Of Delivery
Scope of delivery CoolFreeze NOTICE! Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose. Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.). ... -
Page 9: Technical Description
CoolFreeze Technical description CAUTION! Health hazard! Please check if the cooling capacity of the compressor cooler is suitable for storing the food or medicine you wish to cool. Technical description The cooler can chill products, keep them cool as well as freeze them. A main- tenance-free refrigerant circuit with compressor provides the cooling. -
Page 10: Operation
Operation CoolFreeze Item Description Explanation Selects the input mode – Setting the temperature – Set temperature unit (°Celsius or °Fahrenheit) – Set the battery monitor Display Displays the temperature in the refrigerator compart- ment The first three digits of the four-digit display show the temperature, the fourth digit indicates the temperature unit (°C or °F). - Page 11 CoolFreeze Operation Energy saving tips Choose a well ventilated location which is protected from direct sunlight. Allow warm food to cool down first before placing it in the device to keep cool. Do not open the cooling device more often than necessary. ...
- Page 12 Operation CoolFreeze Connecting to a 100–240 V AC mains (e.g. at home or in the office) DANGER! Danger of electrocution Never handle plugs and switches with wet hands or if you are standing on a wet surface. If you are operating your cooler on board a boat with an AC mains connection of 100-240 V from the land, you must install a residual current circuit breaker between the 100-240 V AC mains supply and the cooler.
- Page 13 CoolFreeze Operation Switch on the cooling device (fig. 1, page 3, fig. 2, page 3) NOTICE! Risk of damage! Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circu- late.
- Page 14 Operation CoolFreeze Setting the temperature (fig. 1, page 3, fig. 2, page 3) ➤ Press the “SET” (4) button once. ➤ Use the “+” (6) and “–” (7) buttons to set the cooling temperature. ✓ The set cooling temperature then appears in the display for a few sec- onds.
- Page 15 CoolFreeze Operation NOTE When the cooling device is switched off by the battery monitor due to low voltage, the display (fig. 2 5, page 3) switches off and the “Power” LED (fig. 2 2, page 3) flashes orange. In HIGH mode, the battery monitor responds faster than at the levels “LOW” and “MED”...
- Page 16 Replacing the plug fuse (12/24 V) (fig. 5, page 4) CoolFreeze Switching off the cooling device (fig. 1, page 3, 6.10 fig. 2, page 3) ➤ Empty the cooling device. ➤ Switch the cooling device off: Press the ON/OFF button (1) for three sec- onds.
-
Page 17: Cleaning And Maintenance
CoolFreeze Cleaning and maintenance ➤ Replace the defective fuse (2) with a new one that has the same rating (T8A 32V). ➤ Re-assemble the plug in the reverse order. Replacing the bulb (CF16, CF26) ➤ Press the switch pin (fig. 6 2, page 4) downwards so that the transpar- ent part (fig. -
Page 18: Troubleshooting
Troubleshooting CoolFreeze Troubleshooting Problem Possible cause Suggested remedy Device does not function, No voltage is flowing The ignition must be switched on in “POWER” LED does not from the DC power most vehicles to supply current to the light up. socket in your vehicle. -
Page 19: Disposal
CoolFreeze Disposal Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. -
Page 20: Technical Data
Technical data CoolFreeze Technical data CF 11 CF16 CF26 Item no.: 9105330183 9105330184 9105330185 Voltage: 12/24 Vg and 100–240 Vw Power consumption: 30 W 35 W 35 W Rated current: 100 Vw: 0.5 A 0.5 A 0.5 A 100–240 Vw: 0.1 A 0.1 A 0.1 A...
