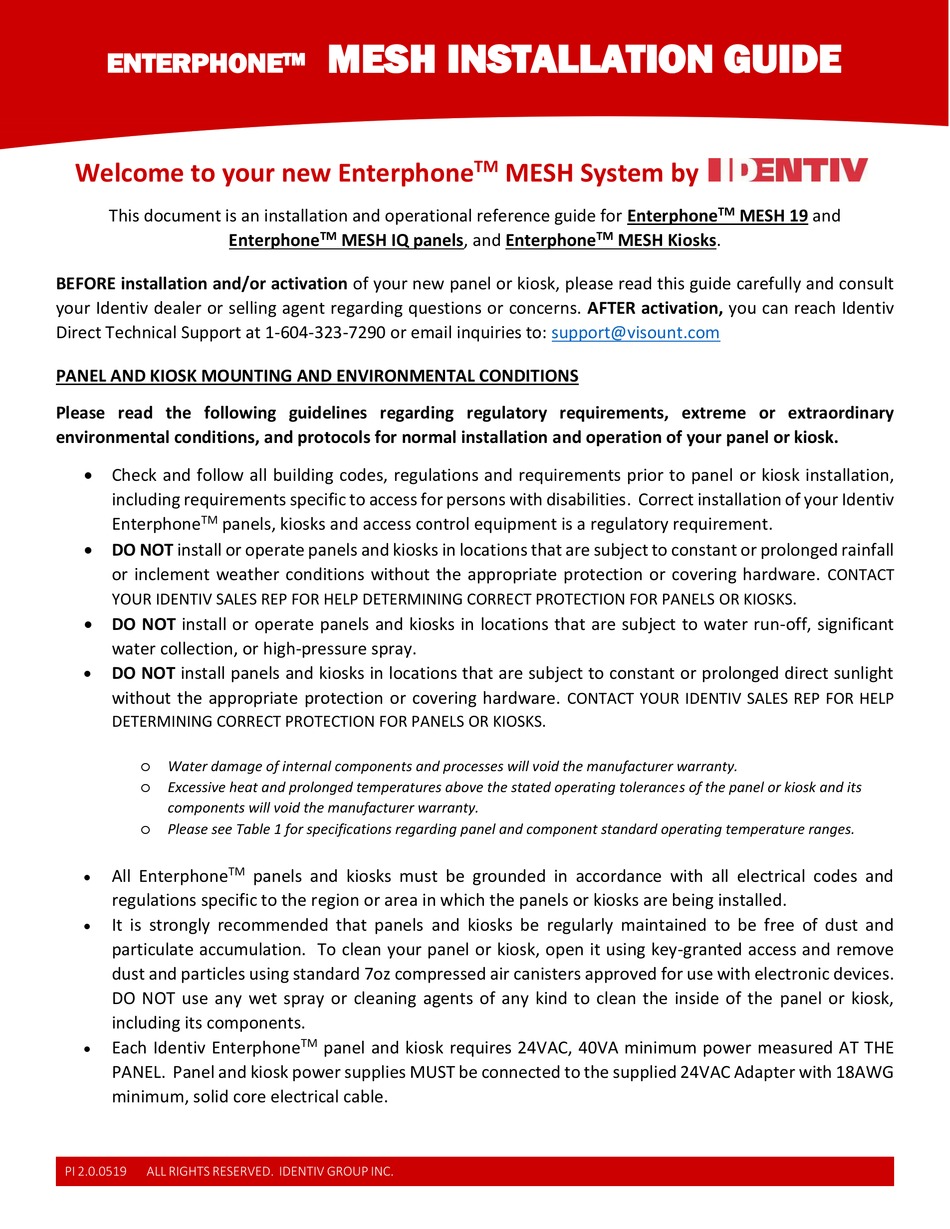

Identiv ENTERPHONE MESH 19 Installation Manual

ENTERPHONE
Welcome to your new Enterphone

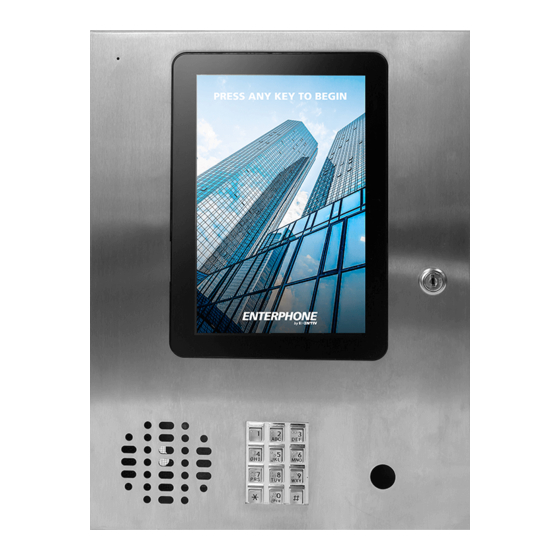

This document is an installation and operational reference guide for Enterphone
Enterphone
BEFORE installation and/or activation of your new panel or kiosk, please read this guide carefully and consult
your Identiv dealer or selling agent regarding questions or concerns. AFTER activation, you can reach Identiv
Direct Technical Support at 1-604-323-7290 or email inquiries to:
PANEL AND KIOSK MOUNTING AND ENVIRONMENTAL CONDITIONS
Please read the following guidelines regarding regulatory requirements, extreme or extraordinary
environmental conditions, and protocols for normal installation and operation of your panel or kiosk.
 Check and follow all building codes, regulations and requirements prior to panel or kiosk installation,
including requirements specific to access for persons with disabilities. Correct installation of your Identiv
TM
Enterphone panels, kiosks and access control equipment is a regulatory requirement.
 DO NOT install or operate panels and kiosks in locations that are subject to constant or prolonged rainfall
or inclement weather conditions without the appropriate protection or covering hardware.
YOUR IDENTIV SALES REP FOR HELP DETERMINING CORRECT PROTECTION FOR PANELS OR KIOSKS
 DO NOT install or operate panels and kiosks in locations that are subject to water run-off, significant
water collection, or high-pressure spray.

DO NOT install panels and kiosks in locations that are subject to constant or prolonged direct sunlight
without the appropriate protection or covering hardware.
DETERMINING CORRECT PROTECTION FOR PANELS OR KIOSKS.
o
Water damage of internal components and processes will void the manufacturer warranty.
o
Excessive heat and prolonged temperatures above the stated operating tolerances of the panel or kiosk and its
components will void the manufacturer warranty.
o
Please see Table 1 for specifications regarding panel and component standard operating temperature ranges.
 TM
All Enterphone
regulations specific to the region or area in which the panels or kiosks are being installed.

It is strongly recommended that panels and kiosks be regularly maintained to be free of dust and
particulate accumulation. To clean your panel or kiosk, open it using key-granted access and remove
dust and particles using standard 7oz compressed air canisters approved for use with electronic devices.
DO NOT use any wet spray or cleaning agents of any kind to clean the inside of the panel or kiosk,
including its components.

Each Identiv Enterphone
PANEL. Panel and kiosk power supplies MUST be connected to the supplied 24VAC Adapter with 18AWG
minimum, solid core electrical cable.
PI 2.0.0519 ALL RIGHTS RESERVED. IDENTIV GROUP INC.
MESH INSTALLATION GUIDE
TM
TM
MESH IQ panels, and Enterphone
panels and kiosks must be grounded in accordance with all electrical codes and
TM
panel and kiosk requires 24VAC, 40VA minimum power measured AT THE
TM
MESH System by
TM
MESH Kiosks.
support@visount.com
CONTACT YOUR IDENTIV SALES REP FOR HELP
TM
MESH 19 and
CONTACT
.
