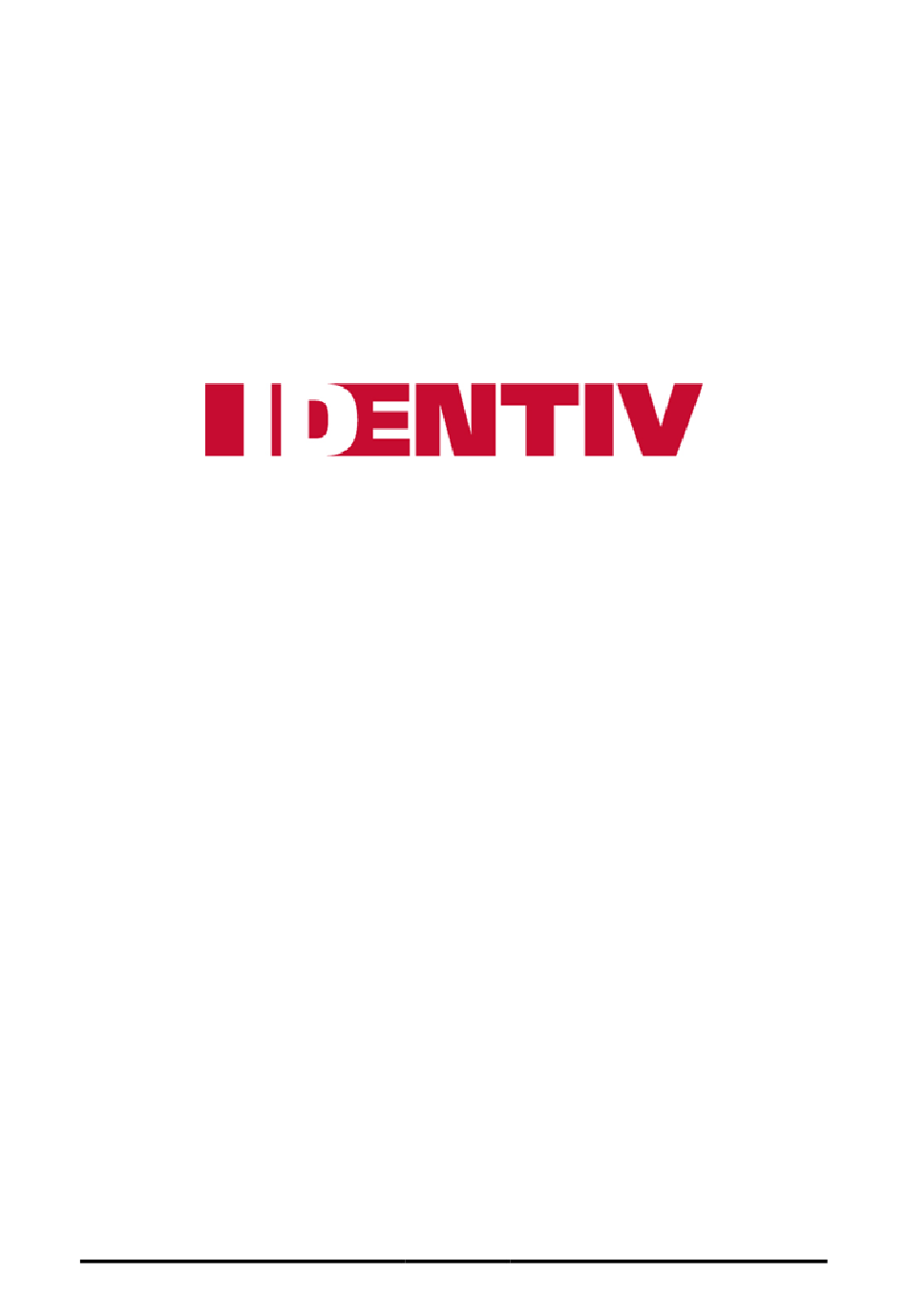

- Page 1 TouchSecure® WallMount User Manual User Manual for uTrust TS WALL MOUNT Physical Access Control Readers Version 1.4 Document number: 81x003 Confidential IDT.QM.P2.T1.DT Ver1.0 Page 1 of 15 Printed copies of this document are uncontrolled Internal Use Only...
- Page 2 TouchSecure® WallMount User Manual Version History Date Version Description of Changes Author 10-July-15 Initial version Suresh Kumar T 09-Oct-15 Wiegand length details modified Suresh Kumar T 20-Nov-15 Updated input voltage range and added Sudhan document number 10-Dec-15 Current ratings updated as per comments from Sudhan 14-Dec-15 Document updated as per review comments from...
-
Page 3: Table Of Contents
TouchSecure® WallMount User Manual Contents Introduction ..........................4 Reader ............................4 Functionality ..........................4 Touch Secure® reader with Casing ..................4 Back Plate ..........................5 Reader Variants ........................5 Product details ........................... 6 Specifications ..........................6 Rated current at different operating voltages ................7 4.1.1 Rated current for Model 8100 .................... -
Page 4: Introduction
TouchSecure® WallMount User Manual 1.0 Introduction This document details the Physical Access Control Reader TouchSecure® and its basic operational and installation procedures. It covers the details of the Wall mount form-factor reader. Model: Connectivity/Standard WM The reader comes in two variants for interfacing with the control panel •... -
Page 5: Back Plate
TouchSecure® WallMount User Manual 2.3 Back Plate 2.4 Reader Variants IDT.QM.P2.T1.DT Ver1.0 Page 5 of 15 Printed copies of this document are uncontrolled Internal Use Only... -
Page 6: Product Details
TouchSecure® WallMount User Manual 3.0 Product details Model Name : Connectivity/Standard Wall Mount Device Type : RFID reader, 13.56MHz (HF) / 125 KHz (LF) Physical Access control Reader (accessory equipment) Type of equipment : Potted reader. Suitable for Indoor Use – 8130ABC and Outdoor use –... -
Page 7: Rated Current At Different Operating Voltages
TouchSecure® WallMount User Manual • Only UL Listed POE sourcing equipment, or UL Listed power-limited power supply, or power- limited output from UL Listed control panel shall be used for the Power-Over- Ethernet feature. Cat 5e cabling is the minimum performance category recommended. These Card Readers when using POE feature are not intended for outside wiring as covered by Article 800 of the US National Electrical Code, NFPA 70. -
Page 8: Rated Current For Model 8130
TouchSecure® WallMount User Manual 4.1.3 Rated current for Model 8130 4.1.3.1 Rated current for 6-16V input Voltage (V) Average Current (mA) Peak Current (mA) IDT.QM.P2.T1.DT Ver1.0 Page 8 of 15 Printed copies of this document are uncontrolled Internal Use Only... -
Page 9: Rated Current For Poe
TouchSecure® WallMount User Manual 4.1.3.2 Rated current for POE Voltage (V) Average Current (mA) Peak Current (mA) 5.0 Installation details Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes, and the authorities having jurisdiction. Parts List •... -
Page 10: Wiring Information
TouchSecure® WallMount User Manual • There shall be no connections made to the RS-485 interface ( RS485+ and RS485-) for UL installations • Cable Wiegand - 22AWG Shielded cable. ( Cable P No : ALPHA WIRE, P/N 1299/10C) • Cable RS485 - RS485 for 1000m** (4000ft) 24AWG STP •... -
Page 11: Mounting The Reader
TouchSecure® WallMount User Manual Cable color Description Comment P1.1 Orange LED Green P1.2 White Data 1 P1.3 Green Data 0 P1.4 Black Drain Connect drain to Cable shield P1.5 Black + White P1.6 Power Do not connect when reader is powered by PoE P2.1 Blue Hold... -
Page 12: Reader Installation Steps
TouchSecure® WallMount User Manual Phoenix connector Reader – 4 Holes and 1 Slot 5.4.2 Reader Installation Steps a. Make holes on the wall as per the image above. b. Insert the nylon screw plugs into the wall. c. Connect the wires as per the Table 2 or Table 3. d. - Page 13 TouchSecure® WallMount User Manual Reader Installation Steps - Phoenix Connector Version Reader Installation Steps - Pig Tail Version IDT.QM.P2.T1.DT Ver1.0 Page 13 of 15 Printed copies of this document are uncontrolled Internal Use Only...
-
Page 14: Power Up And Testing
TouchSecure® WallMount User Manual 5.5 Power up and Testing Turn power on The LED blinks 3 times green with a long beep, then turns red Present a card The LED blinks green, and a short Beep is emitted This is the default reader behavior. 6.0 Certifications 6.1 FCC This equipment has been tested and found to comply with the limits for a Class B digital... -
Page 15: Ul 294 Access Control Performance Levels
TouchSecure® WallMount User Manual UL 294 • Communication via Wiegand was evaluated by UL and serves as the interface between the reader and panel • Communication via RS485 or OSDP is not permitted • Communication via Ethernet was not evaluated by UL •...
