  • Page 1 CAME-ASTRAL Wireless Follow Focus System V1.4...

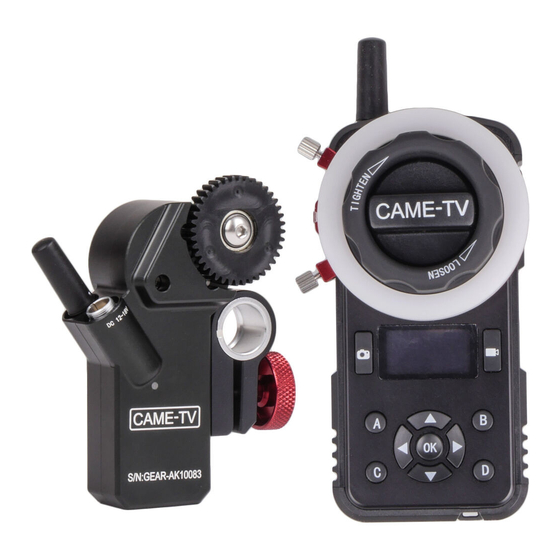

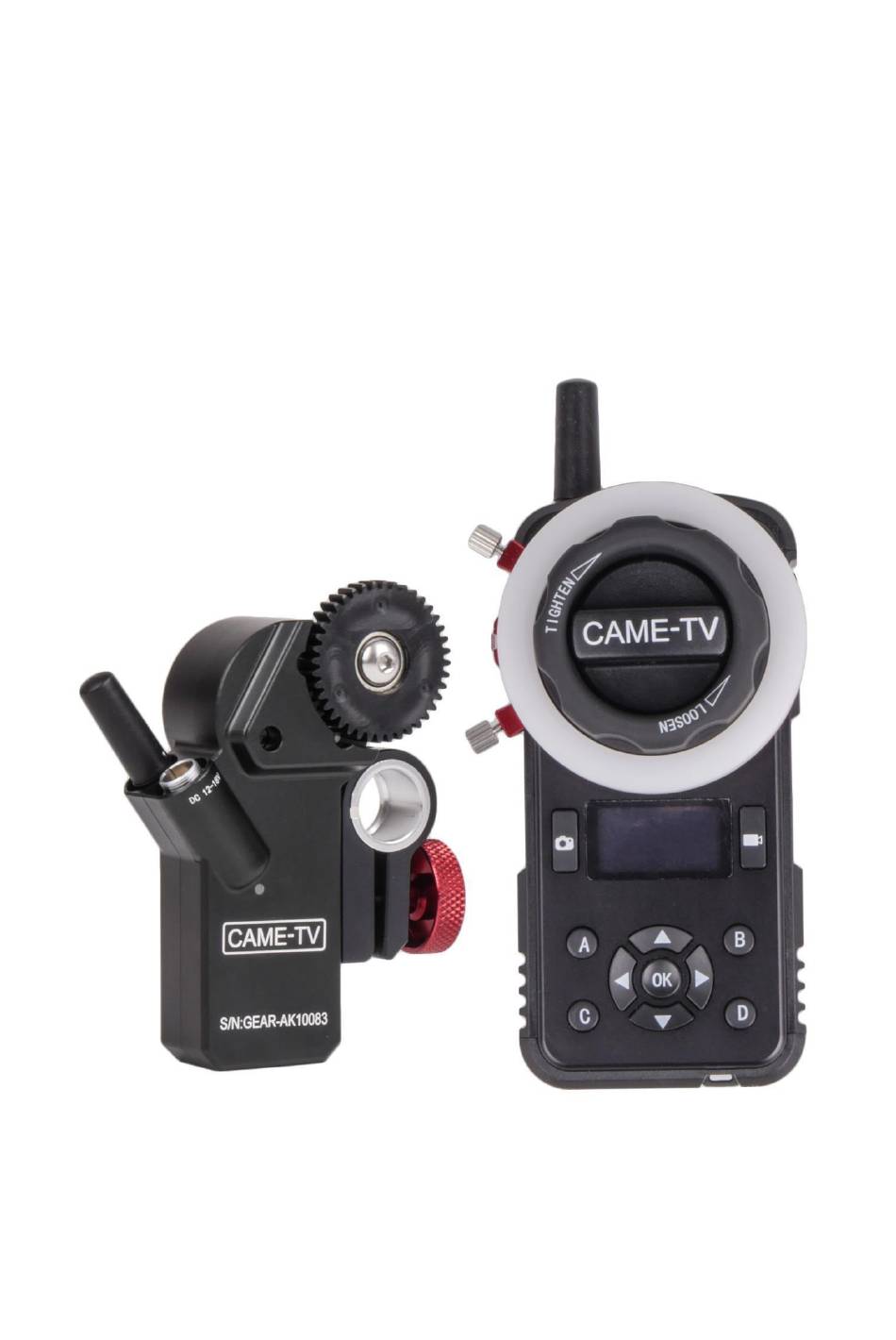

  • Page 2 One: Brief Introduction: The CAME-TV Came-Astral is a wireless professional follow focus system designed for industry professionals. It features a reliable control of focus, iris, zoom, and comes with a remote controller & motor. The controller features a control knob and a quick focus button to configure the OLED display. The maximum output speed of the motor is 250rpm.
  • Page 3 1. Power Button: Perform long press for 3 seconds to turn on/off. 2. Micro USB Port: For Charging and upgrading firmware. Charging input is5V/1A. 3. Antenna: 2.4GHz/2dbi. 4. Torque Button: To adjust the torque. Rotate counterclockwise for lighter and clockwise for harder torque. 5.

  • Page 4: Automatic Calibration

    1. CALIBRATION On the main page ,please press“OK” button to enter MEMU： Select “1. CALIBRATE”, then press “OK” button to enter “CALIBRATE” page For the first time use, please calibrate once to check the overall stroke of the lens, so that the controller can precisely control the stroke position of the camera lens.

  • Page 5: Manual Calibration

    Manual Calibration: Manual calibration is recommended when the lens has no mechanical limit. Manual calibration can use only part of the stroke of the camera lens. Please make sure the gear of the focus motor and lens are installed correctly first. Manual calibration is divided into M-hand and M-remote modes as below: M-hand Calibration Manual Press “OK”...
  • Page 6 On the main page, please press“OK” button to enter MENU, steps as follows: “CALIBRATE” -> “M-remote” -> “START” -> “ENDPOINT1” -> “ENDPOINT2” -> “DONE” ->Press “OK” button to save this record and save the calibration data. After the calibration is completed, press the Right button to return to the main page.
  • Page 7 2)CHANNEL: To set the communication channel between the controller and the motor. It has a total of 16 communication channels from 20-36, allowing 16 sets of CAME-TV wireless follow focus system to be used in the same area at the same time.
  • Page 8 CALI-Speed: Motor calibration speed setting, calibration speed setting range 1-10, maximum operating speed 25rpm. Select SPEED, Press OK Press UP and Down Button to Select CALI-Speed, Press button to enter select different speed and press OK to confirm. Press RIGHT button to return to homepage.
  • Page 9 4)TORQUE RUN-Torque: Motor running torque setting, torque setting range:MINIMUM/MEDIAN/MAXIMUM, maximum torque output 0.50Nm; and Down Select“RUN-Torque”, Press Press UP Button to select Select “TORQUE, Press “OK” button to enter Torque “OK” button to enter different torques and press OK to settings.
  • Page 10 4. POWER OFF AutoPower-Off: Set shutdown timer on controller if no operation takes place within selected time interval. You can choose 10min/30min/ 60min/Never OFF. and Down Select “POWER OFF”, press OK Press UP Button to select suitable button to enter Auto Power time interval and press OK to confirm.
  • Page 11 7. DEFAULT restores default settings: For normal use, it needs to be reset and calibrated after all settings are restored. Select “DEFAULT”, press OK Select “DEFAULT”, press “OK” button to restore button to restore default default settings. Once restore is done, both motor settings.
  • Page 12 1. Output gear: adjust the lens’ focus, aperture, zoom by engaging with the lens focusring. 2. Assemble fasteners: install the follower motor to the appropriatebracket. 3. Frequency auto matching button: When it cannot be connected because communication channel does not match.
  • Page 13 Six: One Year Warranty Xiamen Came Technology Co. ,Ltd Address: 2204 Unit, B03 Building, Chengyi North Street NO.5, Software Park Phase III, Jimei District, 361021, Xiamen City, Fujian Province, China Tel: +86-592-6283638 ext 601(from outside Americas areas) / ext 602(from Americas areas) Hours: Monday to Friday 09:00 - 18:00 (GMT+8)
