CAME-TV Wireless Follow Focus System-V1.21

One: Brief Introduction:

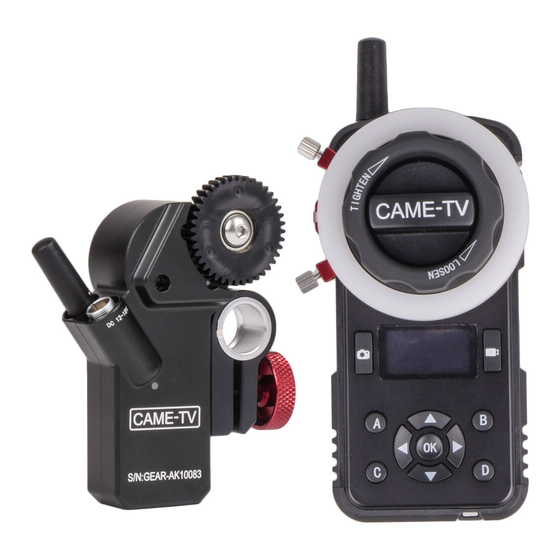

CAME-TV Came-Astral wireless follow focus is a professional follow focus system designed for industry

professionals. It features a reliable control of focus, iris, zoom, and it comes with a remote controller & motor.

The controller features a control knob and a quick focus button to configure the OLED display. The maximum

output speed of motor is 250rpm. Torque is high up to 0.50Nm and motor noise is low at 25db(with rotation

speed at 100 rpm). With 2.4GHz wireless communication, the controller and the focus motor will be

automatically paired after being turned on. The maximum transmission range is 100 meters (328 foot). The

controller has a built-in 3.7V/1000mAh lithium-ion battery. The OLED display on the controller indicates the

battery level in real time. When the battery is low, it can be charged through the Micro USB interface. The

working time in the fully charged state is approximately 8 hours.

Two: Controller

1. Power Button: Perform long press for 3 seconds to turn on/off.

1. Power Button

2. USB Interface

3. Antenna

4. Torque Button

5. Limitation Pins

6. Marking Disk

7. Focus Knob

8. OLED Display

9. Rec Button

10. Photo Button

11. A/B/C/D Point Button

12. Function Button

13. Lanyard Attachment

14. 1/4'' Thread

15. Marking Disk Indicator

Need help?

Do you have a question about the Came-Astral and is the answer not in the manual?

Page 1 CAME-TV Wireless Follow Focus System-V1.21 One: Brief Introduction: CAME-TV Came-Astral wireless follow focus is a professional follow focus system designed for industry professionals. It features a reliable control of focus, iris, zoom, and it comes with a remote controller & motor.
Page 2 2. Micro USB Port: For Charging and upgrading firmware. Charging input is 5V/1A. 3. Antenna: 2.4GHz/2dbi. 4. Torque Button: To adjust the torque. Rotate counterclockwise for lighter and clockwise harder. 5. Limitation Pins: To adjust the rotation angle of the hand-wheel. 6.
Page 3 1) CHANNEL: To set the communication channel between the controller and the motor. It has a total of 16 communication channels from 20-36, allowing 16 sets of CAME-TV wireless follow focus system to be used in the same area at the same time.
Page 4 photos or videos. Camera brands included: Canon / Sony / Panasonic. 6. DISPLAY Set screen direction: NORMAL: displayed in the forward direction; REVERSE: displayed in reverse. 7. DEFAULT restores default settings: For normal use, it need to be reset and calibrated after all settings are restored. 8.
Page 5 Five: Specifications General features Working frequency: 2.415-2.473 GHz Communication distance: 100 m (outdoor，no obstruction) Transmit power: 0 dBm Working temperature: -20 to 55 °C Motor Weight: 200g Size: 100*85*32mm Max torque: 0.50 Nm Max run speed: 250 rpm Working quiescent current: 70 mA (@12 V) Stall current: 1.5 A (@12 V) Working voltage:...
