VPC​ ​ M ONGOOST-50​ ® ​ ​ ​ B ASE
QUICK​ ​ S TART​ ​ G UIDE

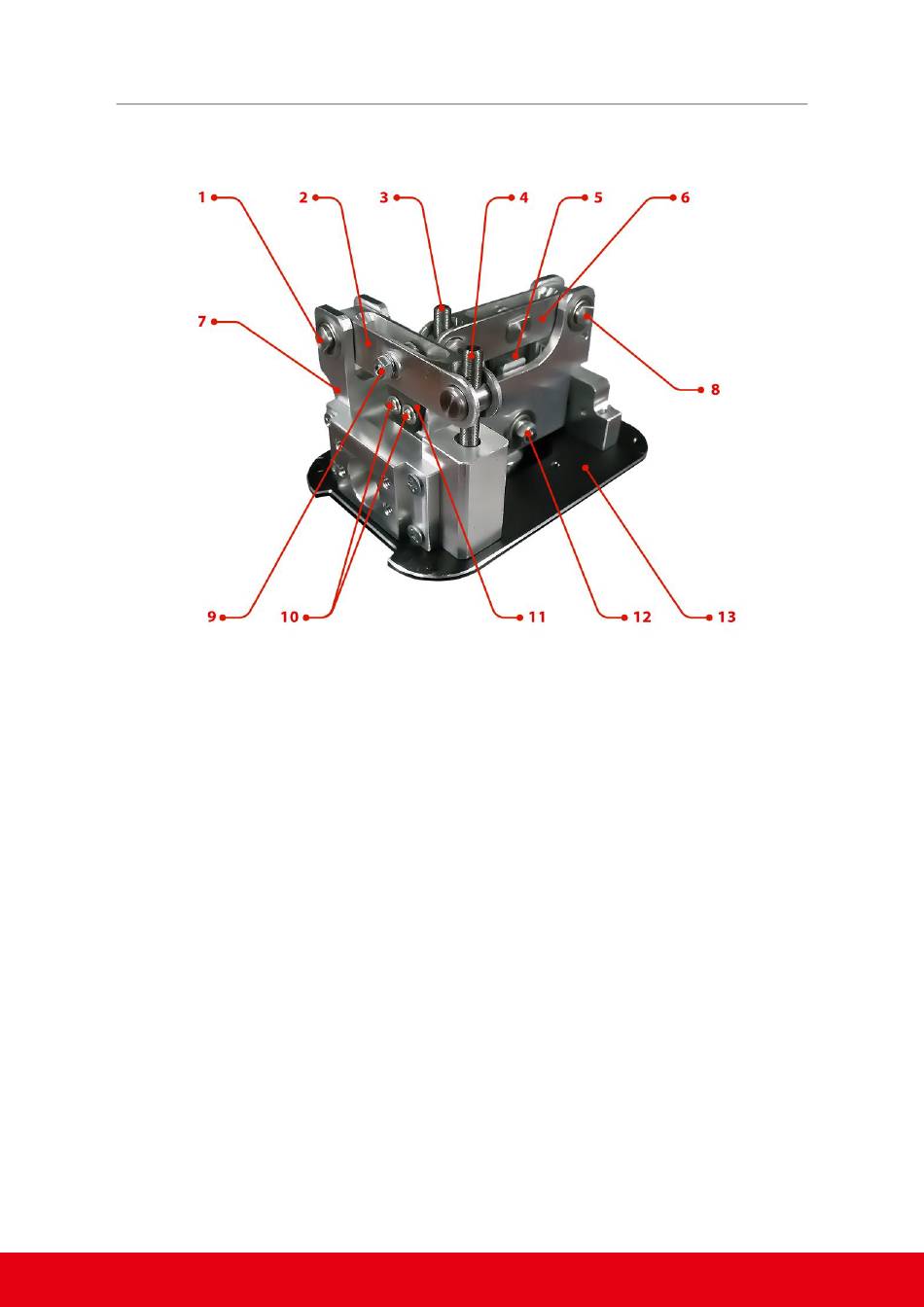

VPC​ ​ M ONGOOST-50®​ ​ G IMBAL
FIGURE​ ​ 2
1. Roll​ ​ a xis​ ​ l ever​ ​ b earing
2. Roll​ ​ a xis​ ​ l ever​ ​ a rm
3. Pitch​ ​ a xis​ ​ t ension​ ​ a djustment​ ​ s crew​ ​ ( with​ ​ c ompression​ ​ s pring)
4. Roll​ ​ a xis​ ​ t ension​ ​ a djustment​ ​ s crew​ ​ ( with​ ​ c ompression​ ​ s pring)
5. Pitch​ ​ a xis​ ​ c am
6. Pitch​ ​ a xis​ ​ l ever​ ​ a rm
7. Gimbal​ ​ m echanics​ ​ s tructure
8. Pitch​ ​ a xis​ ​ l ever​ ​ b earing
9. Roll​ ​ a xis​ ​ c am​ ​ b earing​ ​ ( same​ ​ f or​ ​ P itch​ ​ a xis)
10. 2​ ​ x ​ ​ M 3​ ​ R oll​ ​ a xis​ ​ c am​ ​ m ounting​ ​ s crews​ ​ ( same​ ​ f or​ ​ P itch​ ​ a xis)
11. Roll​ ​ a xis​ ​ c am
12. Grip​ ​ s tem​ ​ b earing
13. Upper​ ​ p late
4
