Technaxx MusicMan TX-08 Manual

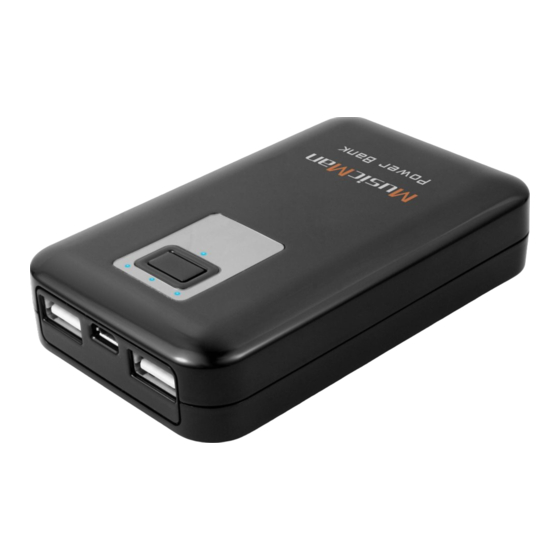

Power Bank TX–08
Please find the Declaration of Conformity for this device under following internet-link:
www.technaxx.de//konformitaetserklaerung/musicman_power_bank_tx_08

Technical Specifications

USB Input: DC–5V 1A max.
USB Output x 2: DC–5V 2.1A max. (shared)
Charging Time: 9–11 hours
Dimensions: 100 x 62 x 24mm
Weight: 198g

Charging the Power Bank

Connect the in delivery included USB cable to the
MicroUSB input port of the Power Bank. Then connect
the other end of the cable to an computer USB port or
to another appropriate USB power source. The
flashing LED indicates current charging status. When
LED stop flashing, the Power Bank is fully charged.

Checking remaining charge of Power Bank

Press ON/OFF button one time.
1 blue LED indicates: <30% remaining charge
2 blue LEDs indicate: 30–80% remaining charge
3 blue LEDs indicate: >80% remaining charge
Charging of MusicMan
Connect the appropriate charging cable of the
®
MusicMan (included in delivery) with the USB output
port of the Power Bank. Then connect the MicroUSB
tip to the MicroUSB input port of the MusicMan
want to charge. Press the ON button on the Power
Bank and charging process beginns.
Charging of mobile phones or other digital
devices: Connect the appropriate charging cable of a
mobile phone or another digital device (included in
delivery) with the USB output port of the Power Bank.
Then connect the MicroUSB tip to the MicroUSB input
port of the other device you want to charge. Press the
ON button on the Power Bank and charging process
beginns.
