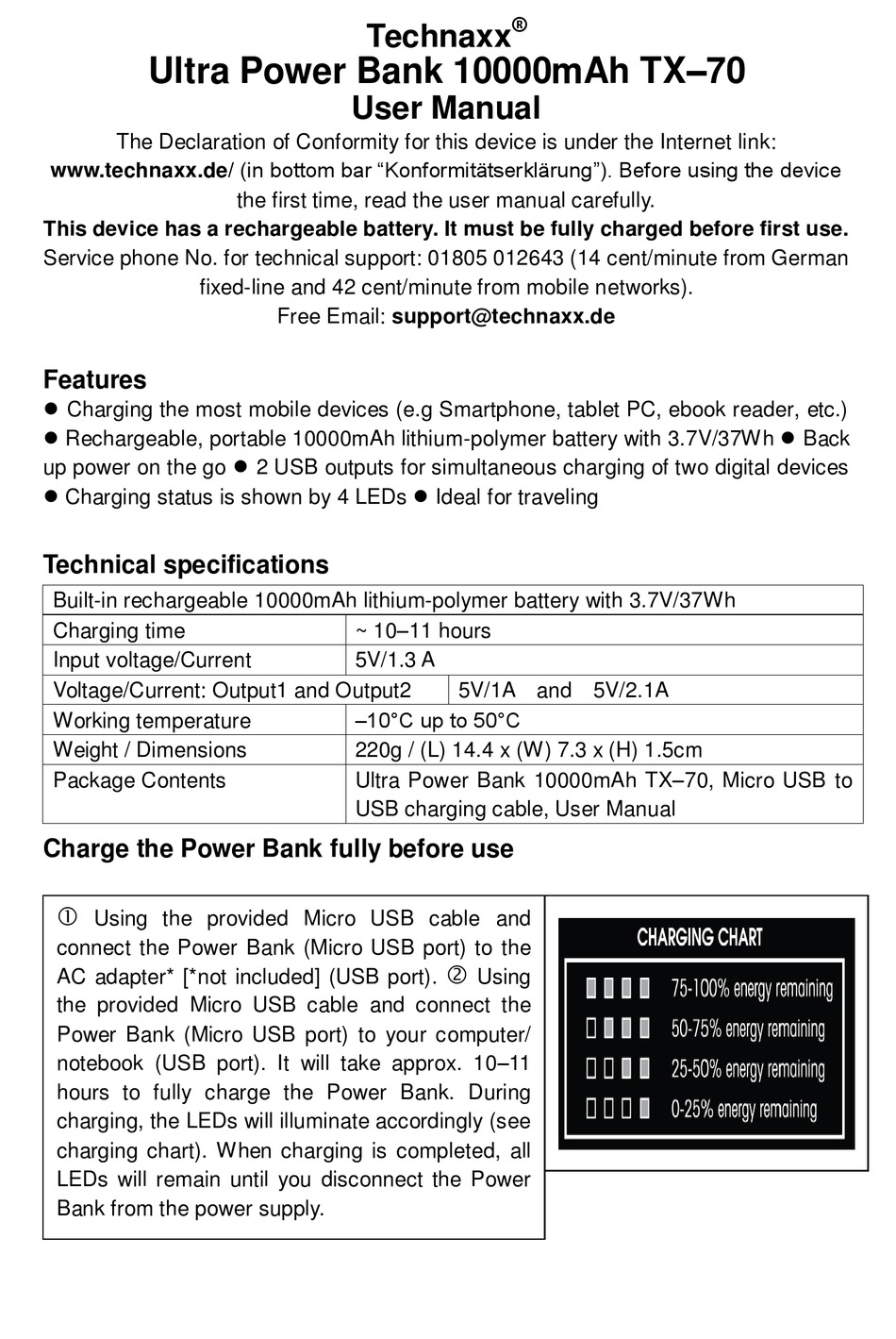

Technaxx TX–70 User Manual

Ultra Power Bank 10000mAh TX–70
The Declaration of Conformity for this device is under the Internet link:
www.technaxx.de/ (in bottom bar "Konformitätserklärung"). Before using the device
This device has a rechargeable battery. It must be fully charged before first use.
Service phone No. for technical support: 01805 012643 (14 cent/minute from German
fixed-line and 42 cent/minute from mobile networks).

Features

 Charging the most mobile devices (e.g Smartphone, tablet PC, ebook reader, etc.)
 Rechargeable, portable 10000mAh lithium-polymer battery with 3.7V/37Wh  Back
up power on the go  2 USB outputs for simultaneous charging of two digital devices
 Charging status is shown by 4 LEDs  Ideal for traveling

Technical specifications

Built-in rechargeable 10000mAh lithium-polymer battery with 3.7V/37Wh
Charging time
Input voltage/Current
Voltage/Current: Output1 and Output2
Working temperature
Weight / Dimensions
Package Contents

Charge the Power Bank fully before use


Using the provided Micro USB cable and
connect the Power Bank (Micro USB port) to the
AC adapter* [*not included] (USB port).
the provided Micro USB cable and connect the
Power Bank (Micro USB port) to your computer/
notebook (USB port). It will take approx. 10–11
hours to fully charge the Power Bank. During
charging, the LEDs will illuminate accordingly (see
charging chart). When charging is completed, all
LEDs will remain until you disconnect the Power
Bank from the power supply.
Technaxx
User Manual
the first time, read the user manual carefully.
Free Email: support@technaxx.de
~ 10–11 hours
5V/1.3 A
–10°C up to 50°C
220g / (L) 14.4 x (W) 7.3 x (H) 1.5cm
Ultra Power Bank 10000mAh TX–70, Micro USB to
USB charging cable, User Manual
®
5V/1A and 5V/2.1A

Using
