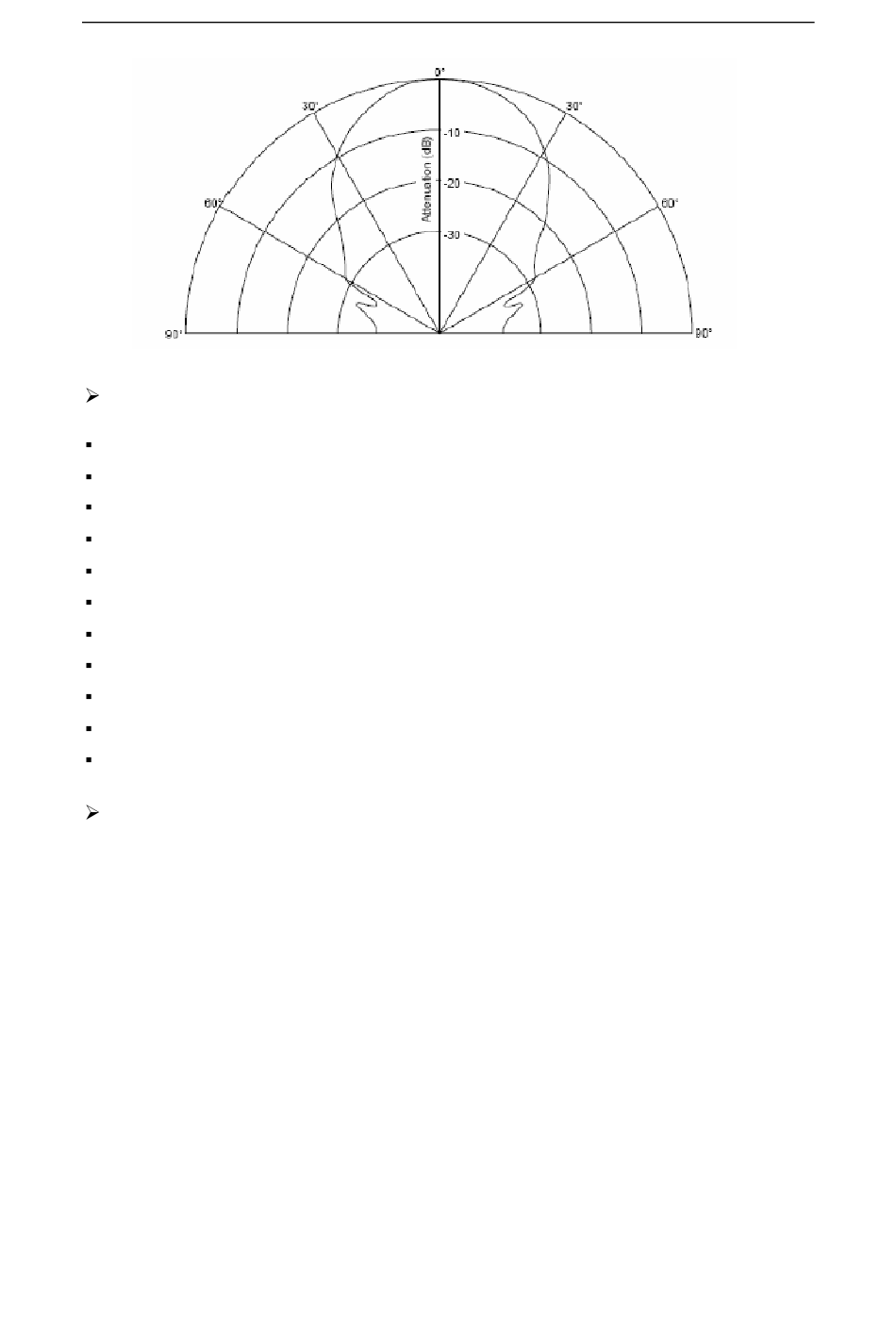

Specification

Power: +5V
Current: <20mA
Working temperature: -10℃～+70℃
Detecting range: 4cm-300cm
Resolution: 1cm
Frequency: 40KHz
Interface: RS485
Units: Range reported in cm
Temperature sensor: 12 bits reading from serial port
Size: 34mm × 51 mm
Weight: 30g

Dimension and Pin definition

RS485 Interface：Two connectors, + ： +5V DC Power +5V, - ： GND Ground , A ： A RS485 A(+) ,
B ： B RS485 B(-), ISP Pin：For factory firmware uploading
Communication LED： As the device is powered up, this LED will flash four times which indicates that the
sensor is working properly. This LED will also flash when it is communicating with other devices. Jumper
A：Not in use Jumper B：When the sensor is working under a network, only the Jumper B for the first
Device and the last Device need to be bridged.
