Summary of Contents for MasterChef 085-2202-6

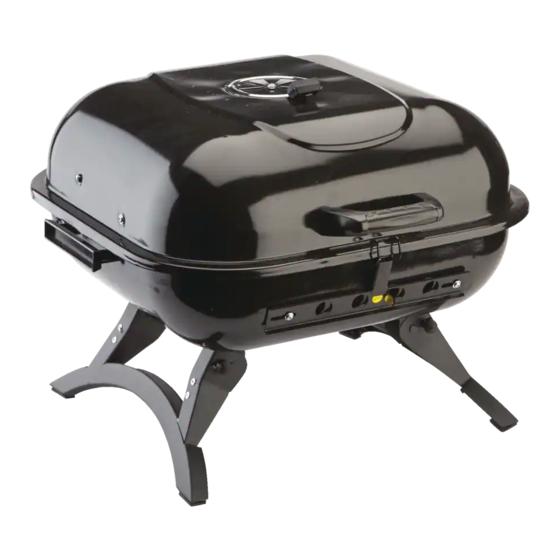

- Page 1 Portable Charcoal Grill Product no. 085-2202-6 (TG2172111-MC) INSTRUCTION MANUAL Toll-free: 1-855-803-9313 Read this manual thoroughly before using and save it for future reference.
-
Page 2: Safety Symbols
Product no. 085-2202-6 (TG2172111-MC) | Contact us: 1-855-803-9313 Warnings Product Diagram Component List Hardware List Assembly Instructions Limited Warranty • To the installer or person assembling this appliance: Leave this manual with this appliance for future reference. • This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. - Page 4 Product no. 085-2202-6 (TG2172111-MC) | Contact us: 1-855-803-9313 Key No. Description Qty. Lid Air Vent Lid Handle Short Lid Bracket Long Lid Bracket Cooking Grate Charcoal Grate Body Handle Grill Body Grill Body Air Vent Latch Left Leg Assembly Right Leg Assembly...
- Page 5 Part No. Description Diagram Qty. Bolt M6 x 12 Bolt M5 x 12 Bolt M3 x 10 Washer M6 x 12mm Dia. Washer M5 x 12mm Dia. Nut M6 Nut M5 Nut M3...
- Page 6 Product no. 085-2202-6 (TG2172111-MC) | Contact us: 1-855-803-9313 Step 1 Attach Lid Handle (3) to Lid (2) by inserting 2 Washer M6 (D) and 2 Nut M6 (F). Attach Lid Air Vent (1) to Lid (2) by inserting 1 Bolt M5 x 12 (B), 1 Washer M5 (E) and 1 Nut M5 (G).
- Page 7 Step 3 Insert Foot Cap A (13A) to front of Left Leg Assembly (12L) and Foot Cap B (13B) to rear of Left Leg Assembly (12L) as illustrated. Front Insert Foot Cap B (13B) to front of Right Leg Assembly (12R) and Foot Cap A (13A) to rear of Right Leg Assembly (12R) as illustrated.
- Page 8 Product no. 085-2202-6 (TG2172111-MC) | Contact us: 1-855-803-9313 Step 5 Attach each Short Lid Bracket (4) to both ends of Grill Body and Lid using 4 Bolt M5 x 12 (B), 4 Washer M5 (E) and 4 Nut M5 (G) to connect.
- Page 9 Step 6 Place Charcoal Grate (7) and Cooking Grate (6) into the Grill Body. Step 7 Tighten all Hardwares. Finished! Always unfold the legs during cooking and lighting!
- Page 10 Product no. 085-2202-6 (TG2172111-MC) | Contact us: 1-855-803-9313 Step 8 Folding Legs for transportation and storage: 1. Close the Lid and lock the Latch. 2. Pull the latch on both leg assemblies to unlock then fold the legs as illustrated.
- Page 11 1. Limited Warranty This product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace a defective product, within the stated warranty period, when returned to the place of purchase with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
- Page 12 Master Chef Canada Toronto, Canada M4S 2B8...
