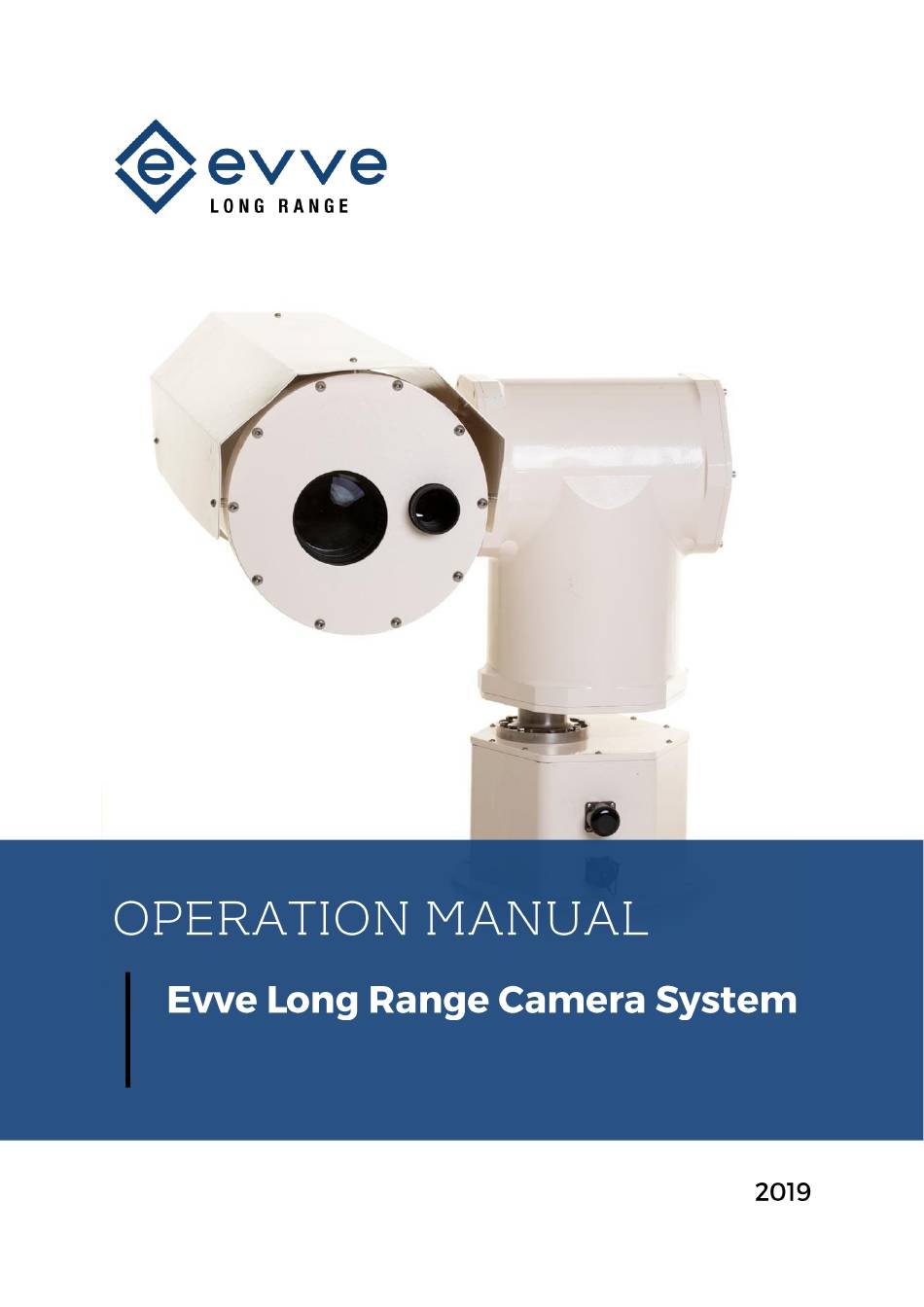

- Page 1 Zuid Hollandlaan 7 2596 AL Den Haag The Netherlands Phone: +31 0 85 0441855 (NL) E-mail: info@evvelongrange.com Web : www.evvelongrange.com MK-1900HD Series Operation Manual MK1900HD Series 1/13...
- Page 2 EVVE LONG RANGE ADDITIONAL INFORMATION & RELATED DOCUMENTS FCC COMPLIANCE SUPPORT SERVICES SAFETY INSTRUCTIONS 2. OPERATING IN GOOGLE BROWSER 3. OPERATING IN VLC 4. HOW TO USE DIFFERENT SPEEDS 5. HOW TE SET OR CHANGE END STOPS 6. ABSOLUTE CONTROLS 7.
- Page 3 MK-1900HD. This manual is available from the Evve Long Range website at: www.evvelongrange.com/downloads 17xxHD - High Definition Demonstration Camera Positioning System Copyright 2019 by Evve Long Range B.V. (ELR). ELR has intellectual property rights to technology embodied in the product described in this manual. Evve Long Range and Evve International BV are trademarkt of BOTHA BV.
- Page 4 This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 5: Safety Instructions

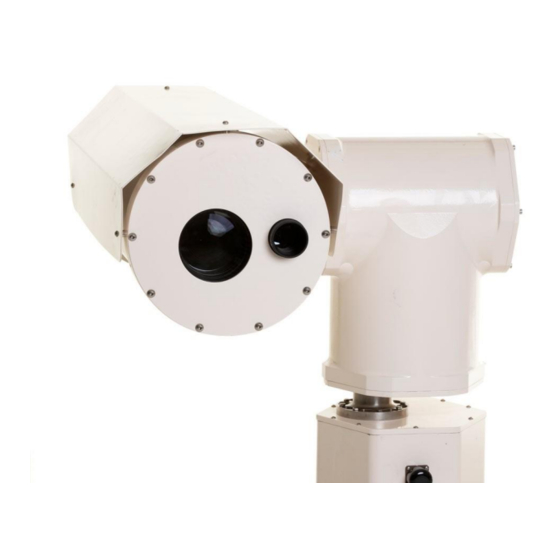

- High Definition Demonstration Camera Positioning System The Evve Long Range products are the part of the next generation of Long Range camera systems ranging from high-definition (HD) to standard-definition (SD) camera positioning systems. The systems are IP (Internet Protocol) based with a full function built-in operating system. - Page 6 SAFETY INSTRUCTIONS CLASS 3 (EYE & SPECULAR REFLECTION HAZARD): Never aim the laser at a person’s eye or stare at the laser from within the beam. Keep the beam path above or below eye level for one seated or standing. ...
- Page 7 Open the Google browser. Use the following address to log in to the interface of the encoder: 192.168.178.150:8080 (HD encoder) 192.168.178.151:80 (Analog encoder) Log in screen appears. Log in to the TVMS program: Login: admin Password: 1234 Screenshot ANT-3500 There will be a small delay due to the browser of approc.
- Page 8 Open VLC Player. Log in screen appears. Select File and then select Open Network. Type the following address: rtsp://192.168.178.150:8080/video1 Press Open: the video will be displayed. Operation Manual MK1900HD Series 6/12...
- Page 9 For all directions the same. When you joggle the joystick one time to the direction, it’s ultra slow. You can speed this up by joggling the joystick into the same direction as before. The speed will go from > to >>, >>>...
- Page 10 The operator/user is able to set end stops. HOW TO SET END STOPS Command: Set Left 91 PRESET Set Right 92 PRESET Set Up 93 PRESET Set Down 94 PRESET HOW TO REMOVE END STOPS Command: Release Left 95 PRESET Release Right 96 PRESET Release Up...
- Page 11 Level elevation and north position for absolute control. Command: Absolute Control 99 PRESET Operation Manual MK1900HD Series 9/12...
-
Page 12: Operating Commands
STARTING UP To enter the camera menu, press 5 AUX ON When you enter the camera settings, the camera movement will be blocked. Getting out of the camera menu will unblock the camera movement again. OPERATING COMMANDS Command: Enter camera menu 88 PRESET Save menu... - Page 13 LENS FUNCTIONS Press selected numbers and PRESET Command: Function: 70 PRESET active_filter = 0xcf; // 4 different filter states 71 PRESET active_filter = 0xdf; 72 PRESET active_filter = 0xef; 73 PRESET active_filter = 0xff; 74 PRESET x2 on 75 PRESET x2 off 76 PRESET autofocus one shot, cleared after sending command...
- Page 14 To operate the lens, you can give direct commands. The laser is standard off and with no power. STARTING UP To start the laser, press 6 AUX ON The laser is on and there is no power coming out. OPERATING COMMANDS Command: Start laser...
- Page 15 Zuid Hollandlaan 7 2596 AL Den Haag The Netherlands Phone: +31 0 85 0441855 (NL) E-mail: info@evvelongrange.com Web: www.evvelongrange.com Operation Manual MK1900HD Series 13/12...
